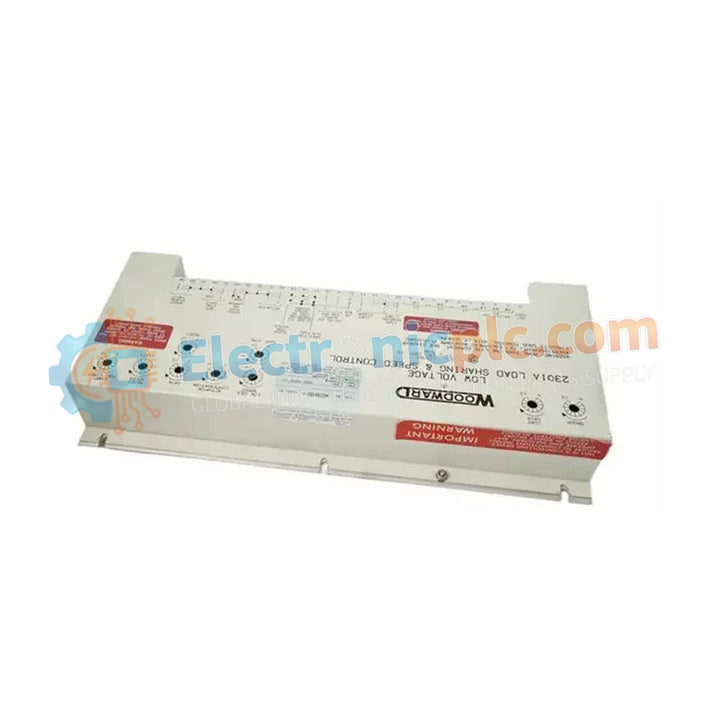

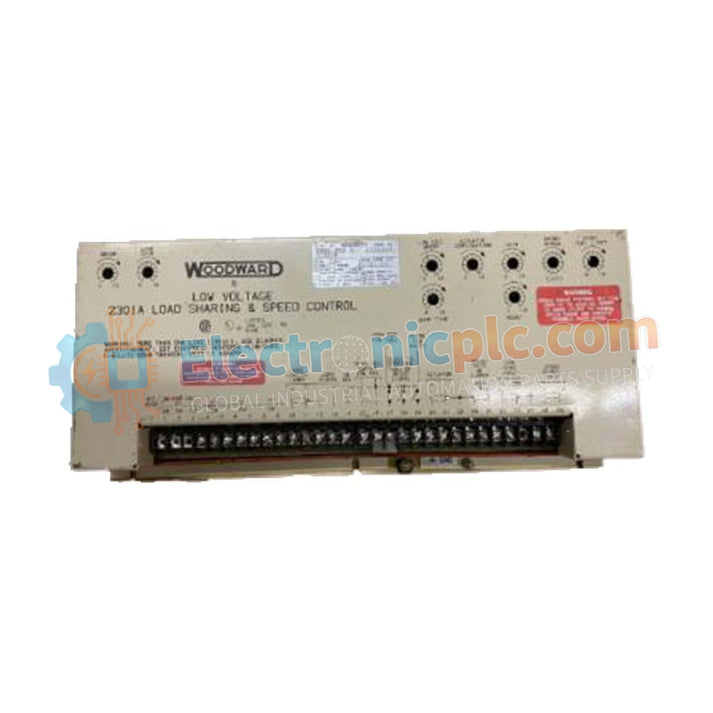

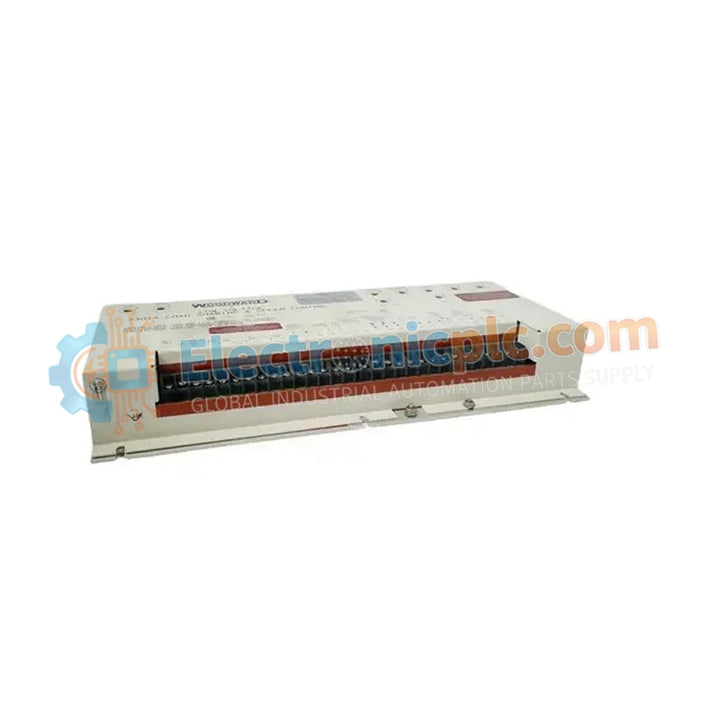

Woodward 9905-068 2301A Speed Control

Woodward 9905-068 2301A Speed Control

Product Description

The 9905-068 is a core control module of the Woodward 2301A Series, developed by Woodward, Inc. for speed governing and load sharing in generator sets.

This controller maintains constant system frequency and enables...

17 people are viewing this right now

Availability: Low stock: 99 left

SKU: 9905-068
Vendor: Woodward
Category: Load Sharing and Speed Control
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The 9905-068 is a core control module of the Woodward 2301A Series, developed by Woodward, Inc. for speed governing and load sharing in generator sets.

This controller maintains constant system frequency and enables proportional kW load distribution when multiple generators operate in parallel or are connected to a utility grid. It regulates fuel, steam, or gas flow via actuator control signals to maintain stable prime mover speed and electrical output.

The 9905-068 uses analog control architecture with potentiometer-based field adjustments, allowing engineers to tune gain, reset, and compensation parameters without specialized software tools. Its fast analog response and rugged design make it suitable for marine propulsion, industrial power generation, and remote power systems.

Technical Specifications

Parameter Specification
Model 9905-068
Series 2301A Control Series
Primary Function Speed governing + load sharing
Input Power 20–40 VDC (24 VDC nominal)
Power Consumption < 15 W
Frequency Compatibility 50 Hz / 60 Hz selectable
Control Modes Isochronous / Droop
Load Sharing Integrated Load Sharing Lines (LSL)
Speed Feedback Magnetic Pickup (MPU) compatible
Actuator Output Proportional governor drive signal
Adjustment Method Front-panel potentiometers
Environmental Protection Industrial humidity and oil mist coating
Accuracy Sub-cycle frequency control
Housing Surface-mounted control chassis

Application

  • Standby and emergency power systems

  • Marine propulsion generator control

  • Industrial and utility-scale power plants

  • Retrofit replacement for mechanical governors

FAQ

Can it operate on 115 VAC systems?
No. This is a DC-powered module (20–40 VDC). An external 24 VDC supply is required.

Can it share load across different engine types?
Yes. As long as compatible Woodward load-sharing controllers are used.

What actuators are supported?
Compatible with proportional Woodward actuators such as EPG, 723, and EG series devices.
