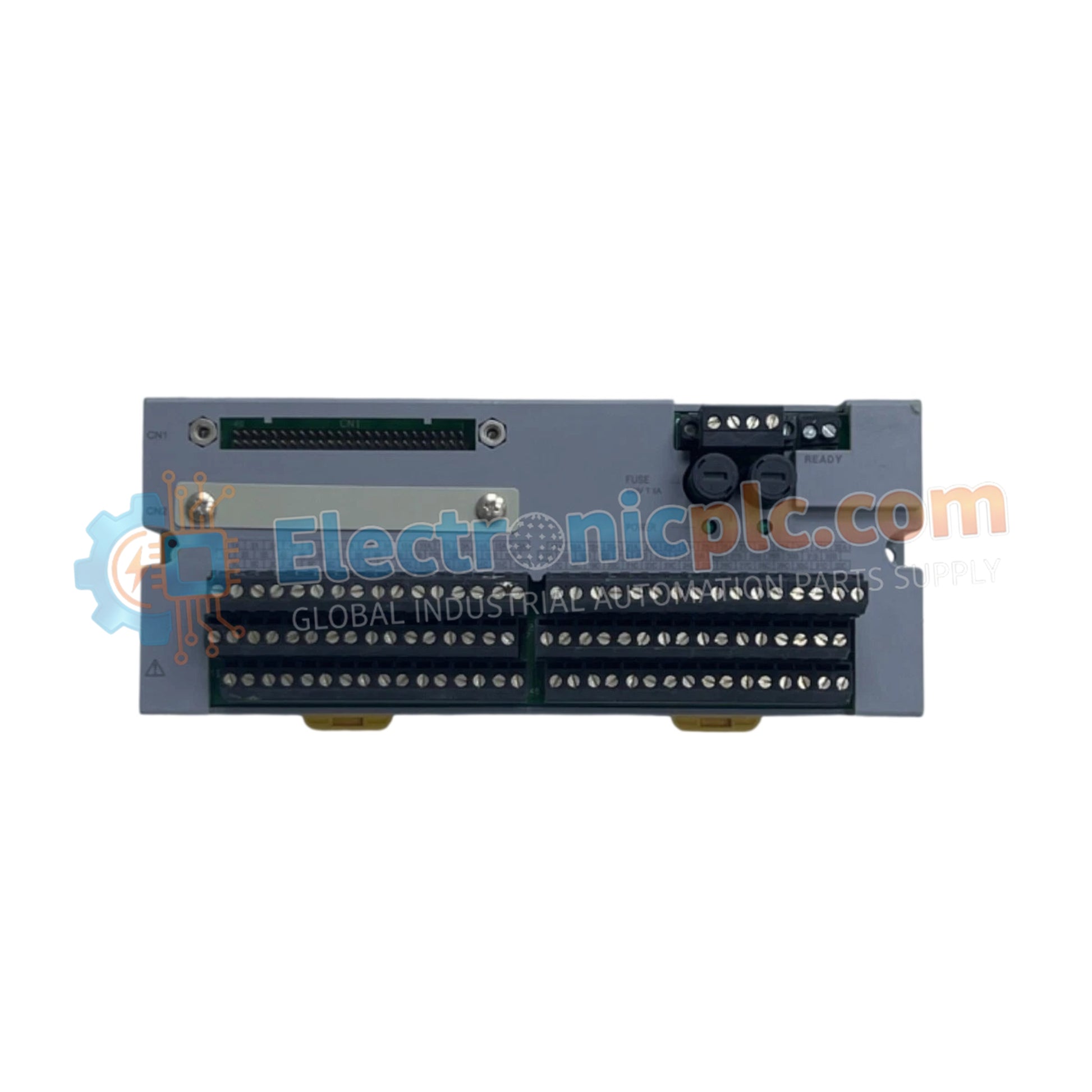

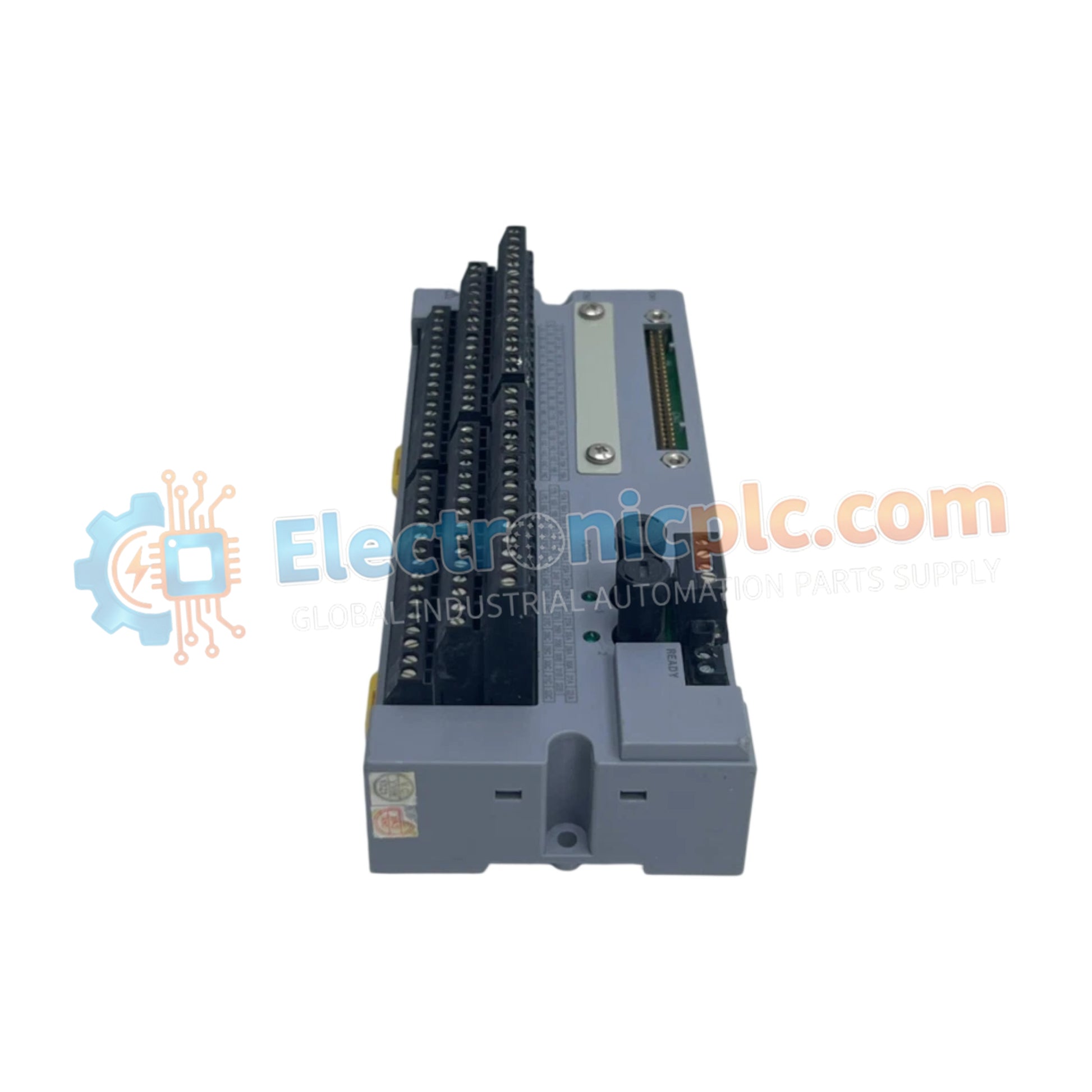

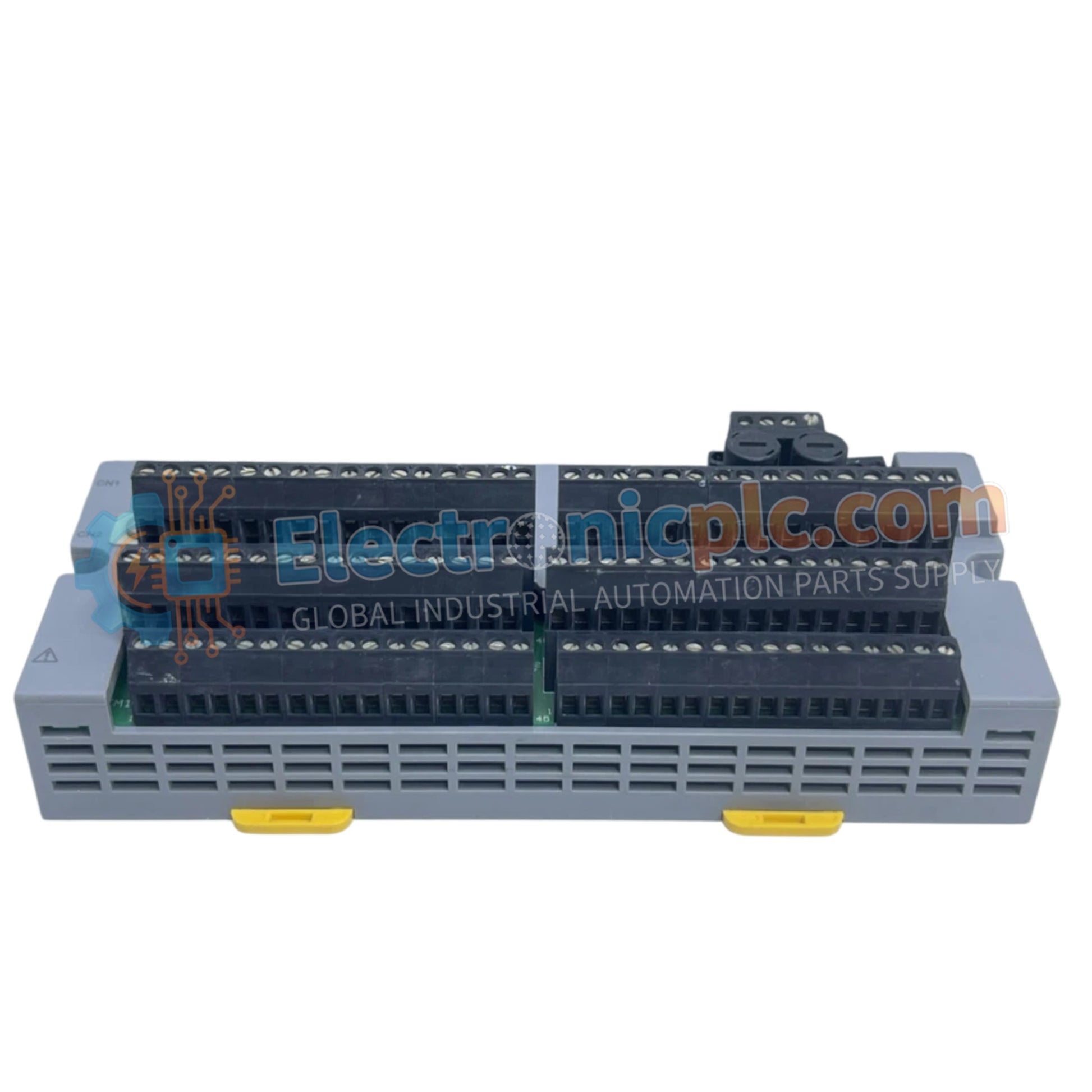

YOKOGAWA A1BD5D-06 Terminal Board

YOKOGAWA A1BD5D-06 Terminal Board

Configured for digital signal interconnection in distributed control systems, the YOKOGAWA A1BD5D-06 (A1BD5D-06) Terminal Board provides direct physical and electrical execution for process automation platforms.

Hardware Specifications

...
19 people are viewing this right now

Availability: Low stock: 50 left

SKU: A1BD5D-06
Vendor: Yokogawa
Category: Terminal Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Configured for digital signal interconnection in distributed control systems, the YOKOGAWA A1BD5D-06 (A1BD5D-06) Terminal Board provides direct physical and electrical execution for process automation platforms.

Hardware Specifications

Parameter Specification
Model A1BD5D-06
Brand YOKOGAWA
Origin Japan
Weight 0.70 kg
Dimensions Standard DIN rail mount form factor
Operating Temp 0 deg C to 50 deg C
Power Consumption 24 VDC external power supply
Channel Capacity 32 channels x 1 block
Insulation Resistance >= 10 MOhm at 500 VDC

Channel Isolation and DCS Bus Architecture

The board incorporates channel-to-channel optical isolation and robust signal termination structures designed to eliminate ground loops and transient interference across multi-loop process environments. Signal conditioning paths filter electromagnetic noise prior to digital processing, ensuring signal integrity across standard field wire terminations. Internal circuitry continuously monitors field-side terminal continuity, providing reliable transmission pathways to the central control hardware.

Frequently Asked Questions

Q: What is the withstand voltage rating for the A1BD5D-06 terminal board?

A: The board withstands 2.0 kV AC for 1 minute between power and READY terminals.

Q: Does the terminal board support redundant system configurations?

A: Yes, the hardware supports both single and dual-redundant module setups for enhanced fault tolerance in control panels.

Field Installation Guidelines

Mount the A1BD5D-06 terminal board securely onto standard DIN rails within industrial control cabinets, ensuring proper clearance for wiring access. Terminate field signal cables using compatible pressure clamp connections with approved wire types, routing signal leads away from high-voltage power conduits. Verify that all terminal screws are tightened correctly and check insulation resistance prior to system energization.
