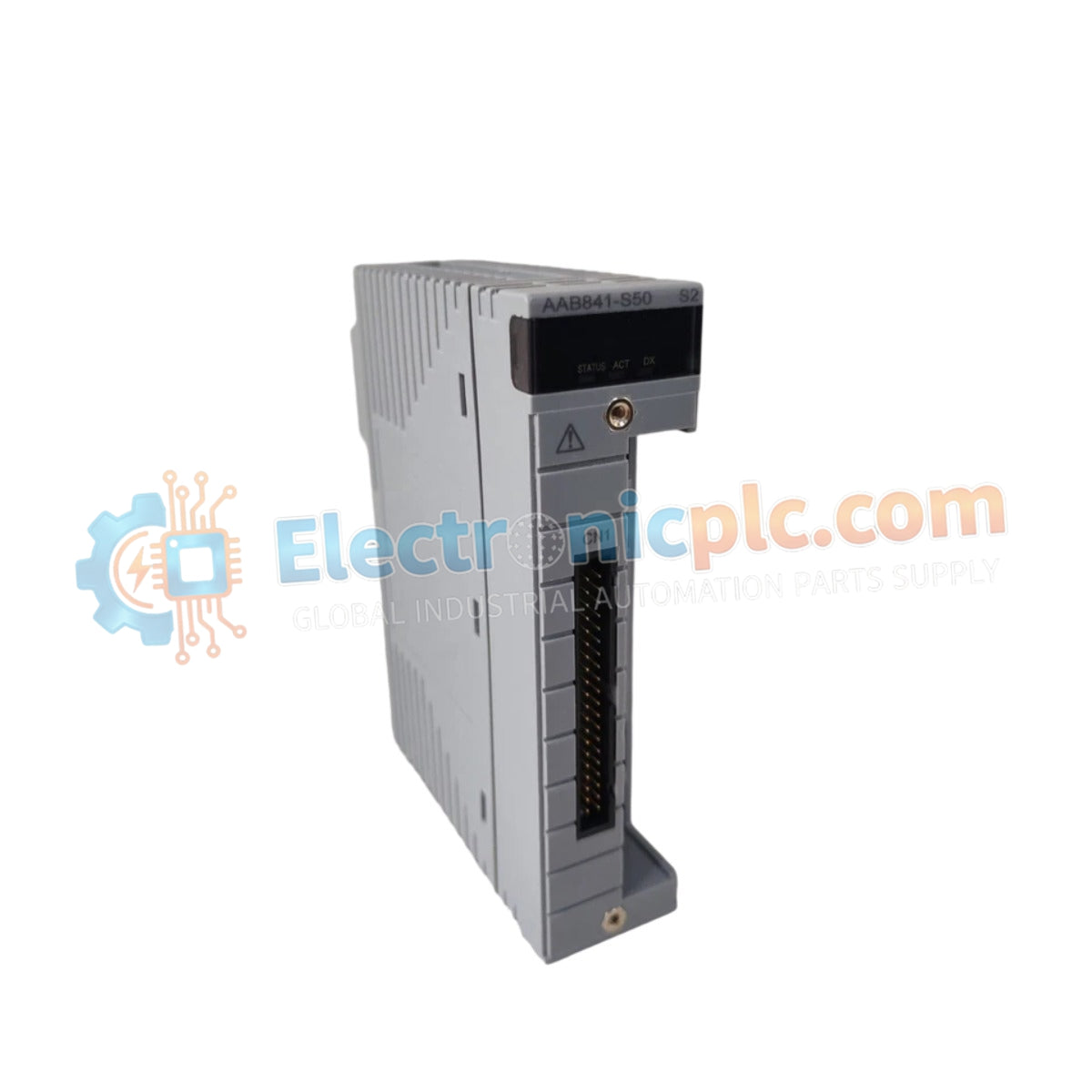

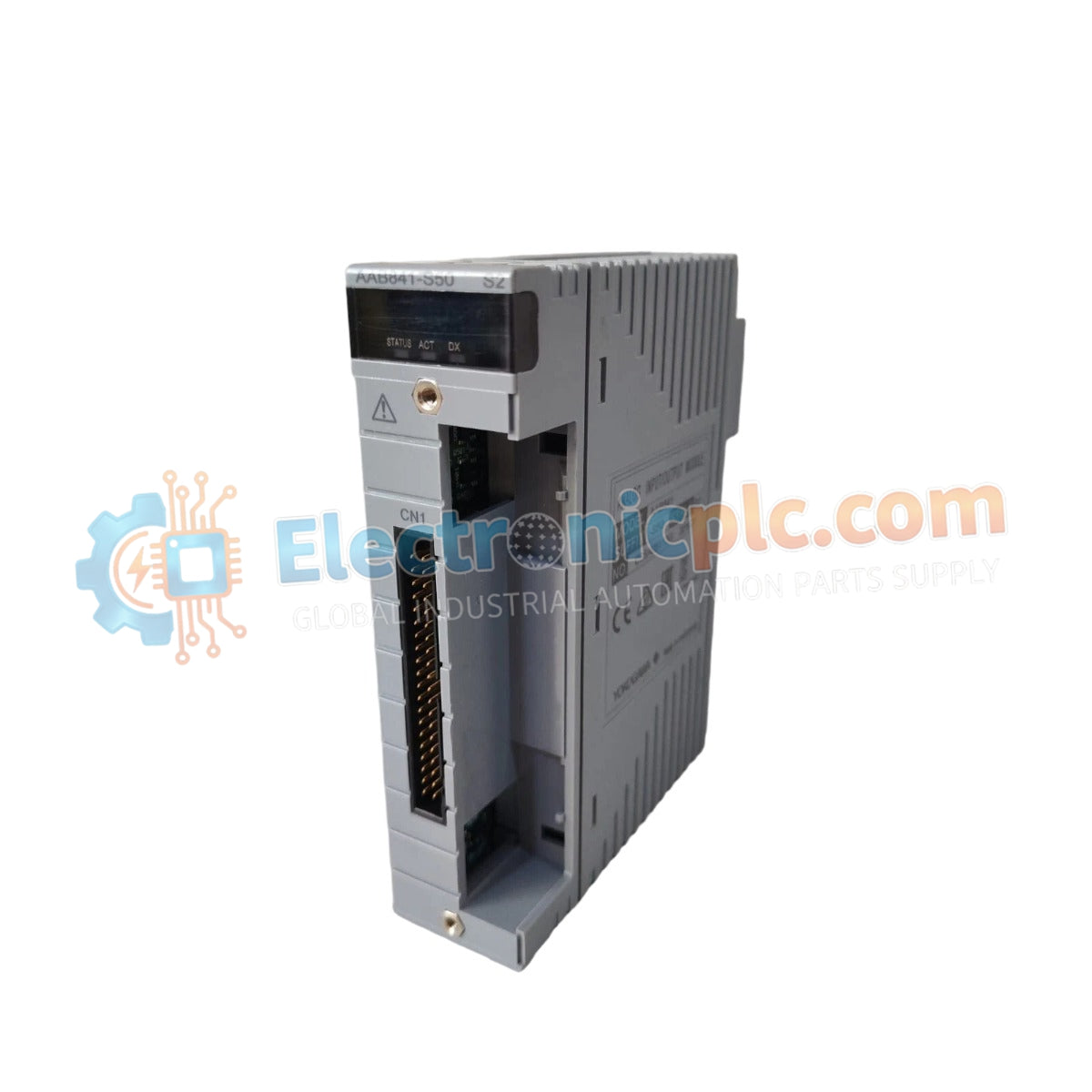

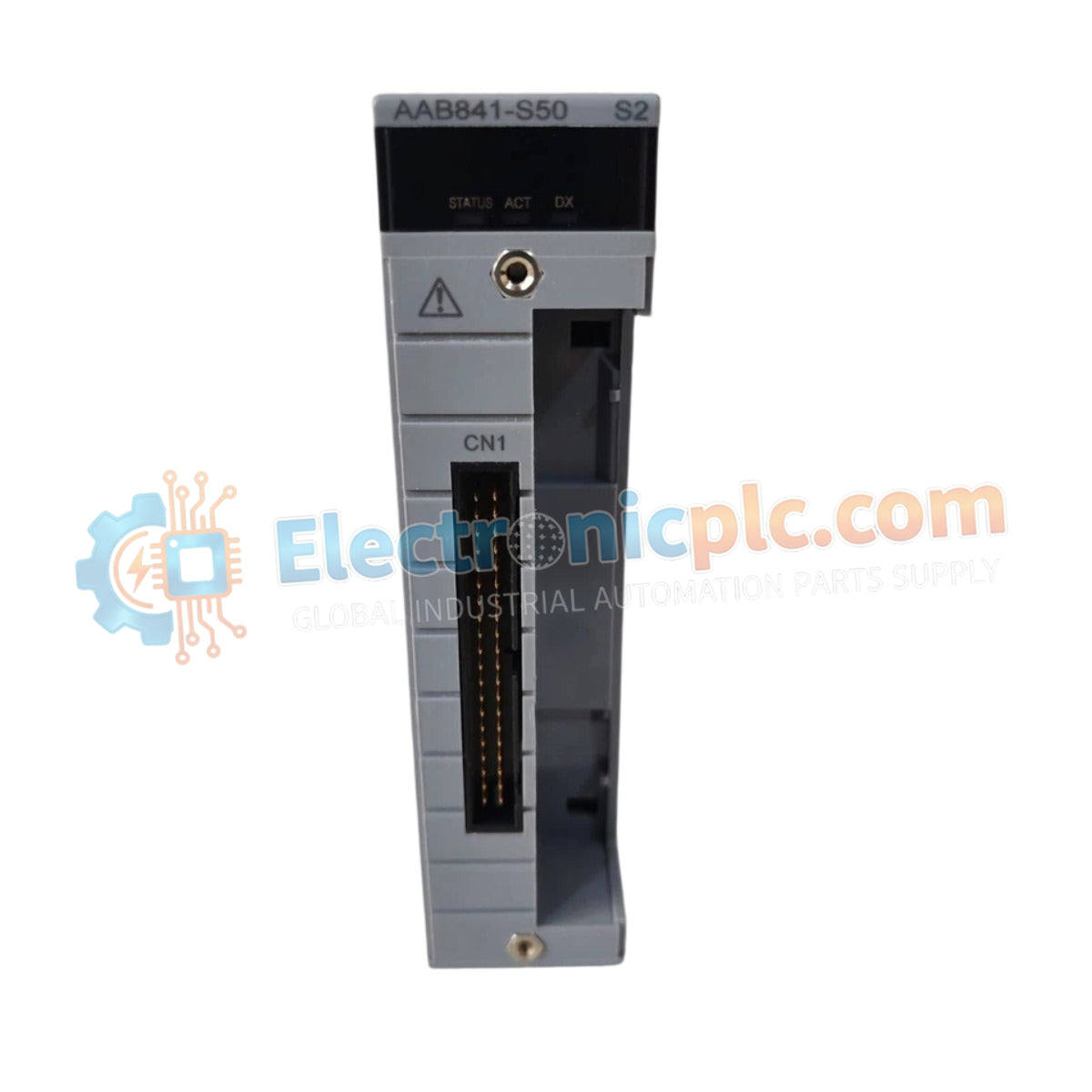

Configured for high-precision signal interfacing in process control platforms, the Yokogawa AAB841-S50 (AAB841 Analog Input/Output Module) provides direct physical/electrical execution of 8-channel voltage input and 8-channel current output signal conversion.

Hardware Specifications

Process Control Connectivity and Signal Integrity

The integration of the AAB841-S50 into DCS architectures requires strict attention to loop protocol requirements. Since this module utilizes non-isolated channels, users must ensure proper common-mode noise suppression at the field terminal block. While the module supports standard 4-20 mA output loops, it lacks intrinsic galvanic isolation between channels. Consequently, loop-powered transmitters must be checked for ground loop potential before connection to prevent signal drift or damage to the 16-bit analog-to-digital converter front end. The AAB841-S50 relies on external cold junction compensation (CJC) if applied to thermocouple-emulated inputs, and users should verify that the termination resistor values match the system load requirements to maintain the rated +/- 0.2% accuracy.

Frequently Asked Questions

Q: Does the AAB841-S50 support hot-swap capability during system operation?

A: No, this module is not designed for hot-swapping. Ensure the power is removed from the I/O bus and the local rack segment before inserting or removing the unit to prevent backplane bus damage or data bus corruption.

Q: How should I manage the non-isolated channel configuration?

A: Because the 8 input and 8 output channels share a common ground, it is recommended to utilize external signal isolators for each loop if the field devices are located in different potential zones to avoid interference.

Field Installation Guidelines

1. Ensure the mounting rail is correctly grounded to the system earth bus to mitigate electromagnetic interference.
2. Verify that field wiring does not exceed the maximum current ratings for the 4-20 mA output loops.
3. Use shielded twisted-pair cables for all analog signals and terminate the shield only at the system end to avoid ground loop currents.
4. Confirm that the voltage input signal (1-5 V) does not exceed the maximum input threshold to prevent damage to the high-speed input buffers.
5. Inspect the backplane connectors for pin alignment before seating the module fully into the card slot.
