• Yokogawa AAR145-S00 S1
  • Yokogawa AAR145-S00 S1
  • Yokogawa AAR145-S00 S1
1 3

Yokogawa AAR145-S00 S1 RTD/POT Input Module

Yokogawa AAR145-S00 S1 RTD/POT Input Module

Description

The Yokogawa AAR145-S00 S1 is a high-density, 16-channel analog input module designed for the CENTUM series control systems. This module is specifically engineered to process RTD (Resistance Temperature Detector) and...

25 people are viewing this right now

Availability: Low stock: 3 left

SKU: AAR145-S00 S1
Vendor: Yokogawa
Category: Analog Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

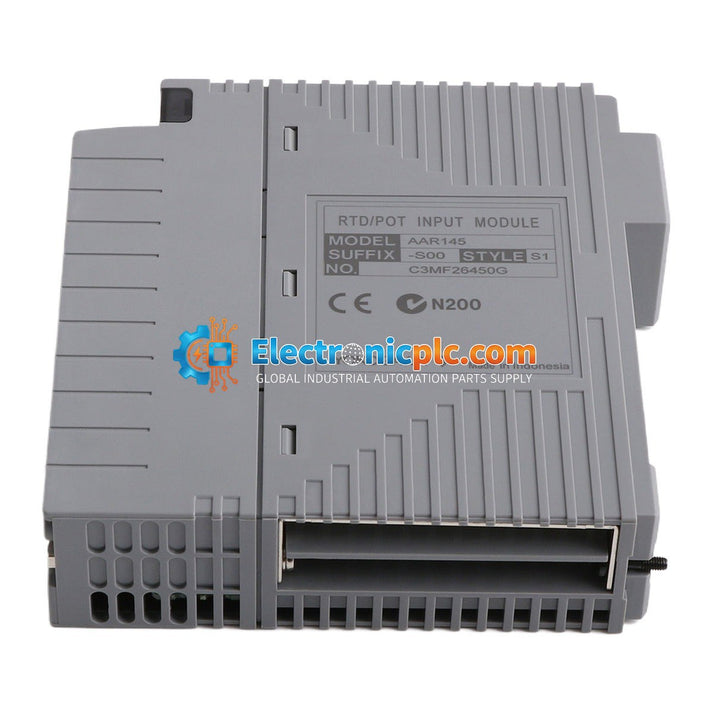

The Yokogawa AAR145-S00 S1 is a high-density, 16-channel analog input module designed for the CENTUM series control systems. This module is specifically engineered to process RTD (Resistance Temperature Detector) and Potentiometer (POT) signals, providing isolated inputs for reliable data acquisition in industrial process control environments.

Features

  • 16 isolated input channels for enhanced signal integrity.
  • Supports JIS C1604:1997 and IEC751:1995 Pt100 (3-wire) RTD inputs.
  • Configurable for Potentiometer inputs with total resistance ranges from 100 Ohm to 10 kOhm.
  • Individual channel configuration for RTD or POT signal types.
  • Integrated burn-out detection with configurable UP/DOWN settings.
  • High withstanding voltage isolation between channels and system.

Applications

This module is widely used in process automation systems where precise temperature monitoring or position feedback is required. Typical applications include thermal management systems, valve position monitoring, and critical process measurement loops within the Yokogawa CENTUM distributed control system architecture.

Technical Specifications

Item Specification
Number of input channels 16, isolated
Input signal RTD (Pt100 3-wire), POT (100 Ohm to 10 kOhm)
Accuracy RTD: +/-150 mOhm; POT: +/-0.2 %/FS
Measurement current RTD: 1 mA
Data update period 1 s
Burn-out detection Configurable (UP/DOWN); 60 s detection time
Current consumption 350 mA (5 V DC)
External connection Dedicated cable (KS8/AKB335)

Installation Guidelines

  • Ensure the control system is powered down before inserting or removing the module from the rack.
  • Handle the module using proper ESD (Electrostatic Discharge) protection practices to prevent damage to internal circuitry.
  • Verify that all field wiring is connected via the specified dedicated cabling (KS8/AKB335) to maintain signal isolation and accuracy.
  • Ensure the module is fully seated in the backplane to ensure proper electrical contact.
  • Keep signal wiring separated from high-voltage power cables to minimize EMI/RFI interference.

FAQ

What type of RTD sensors are supported by the AAR145-S00?

The module supports 3-wire Pt100 RTDs compliant with JIS C1604:1997 and IEC751:1995 standards.

Can I mix RTD and Potentiometer inputs on the same module?

Yes, the AAR145 allows for individual selection of RTD or POT signal types for each of the 16 channels.

What is the required cable for this module?

The module requires the dedicated KS8/AKB335 cable for external field connections.
