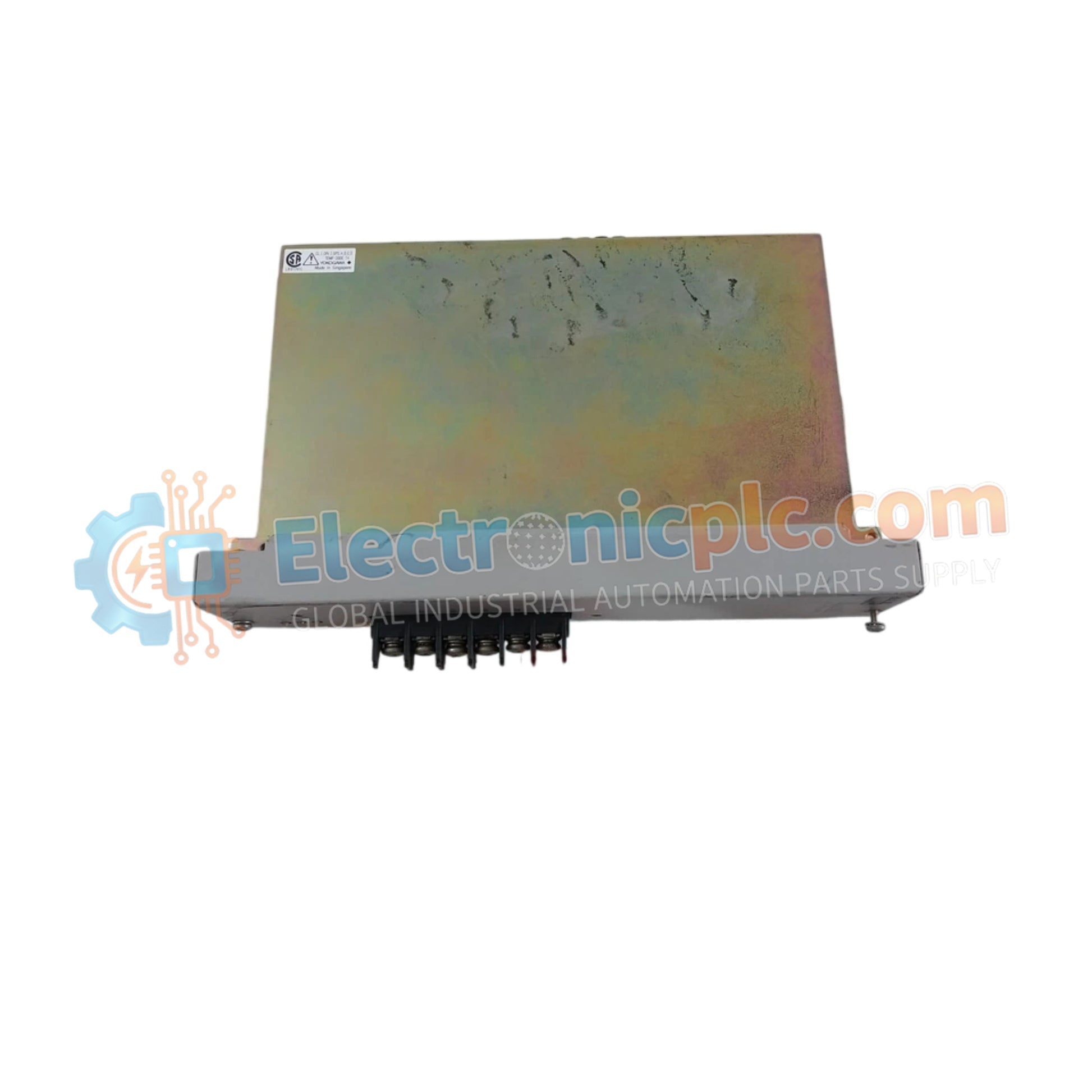

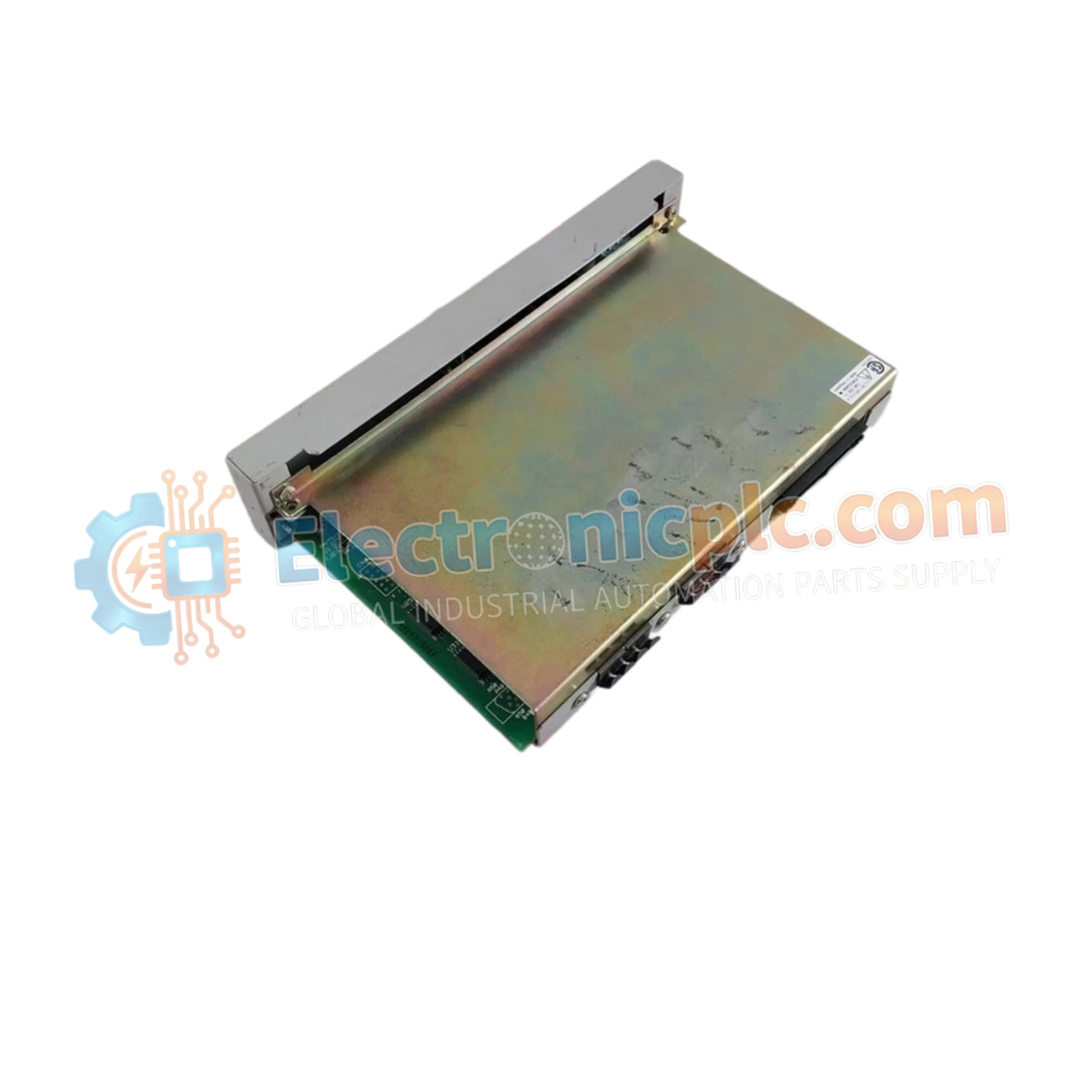

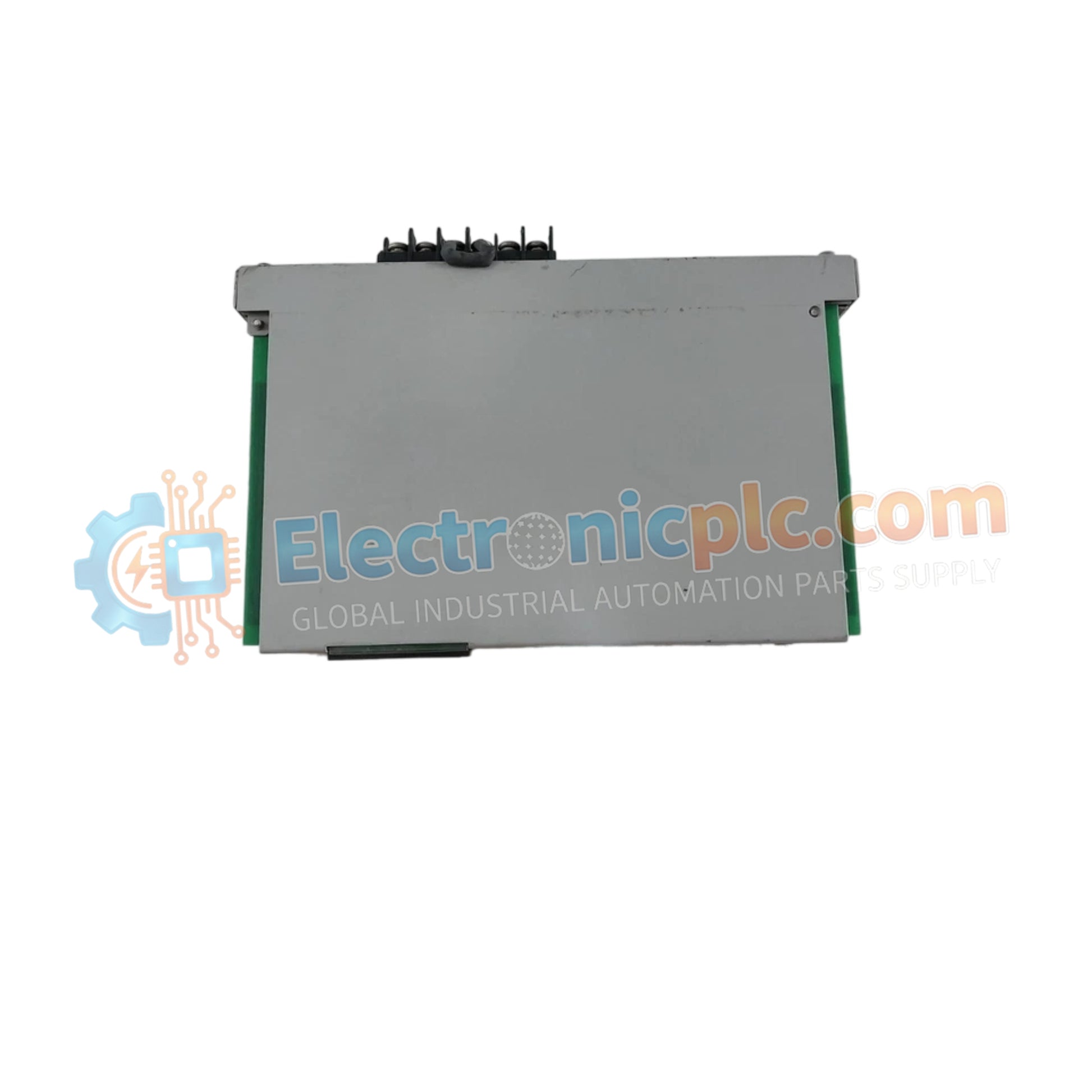

Configured for serial data exchange in distributed control architectures, the Yokogawa ACM12 (ACM12 Communication Module) provides direct physical execution of RS-422 and RS-485 signal protocols. This module manages asynchronous data transmission across long-distance plant networks, supporting baud rates up to 19200 bps to ensure operational data integrity between the controller and remote field instruments.

Suffix Breakdown & Model Matrix

Hardware Specifications

DCS Instrumentation and Serial Communication

The ACM12 architecture utilizes start-stop synchronization to manage data packets in either ASCII or Binary formats. The module is engineered for robust performance in industrial conditions, supporting up to 1200 meters of transmission distance with proper shielding. To mitigate signal degradation, the unit employs a controlled signal reception delay of 1 ms following transmission, which is critical for managing bus contention in multipoint half-duplex configurations. The 6-pole M4 screw terminal connection ensures high-conductivity, low-resistance termination for the required 3-pair shielded cabling.

Frequently Asked Questions

Q: Can the ACM12 be configured for both RS-422 and RS-485 simultaneously?

A: No, the module hardware is configured for one interface standard at a time via physical settings and software parameterization to ensure bus impedance matching.

Q: What is the maximum recommended cable length when using the AKB161 interface cable?

A: The AKB161 cable is limited to a maximum length of 100 meters to maintain signal integrity; for distances up to 1200 meters, specific 3-pair shielded cabling must be utilized.

Field Installation Guidelines

• Mount the module within the designated communication module nest, ensuring full engagement with the backplane for 5.0 V DC power distribution.
• Verify that the 3-pair shielded cable is correctly terminated at the 6-pole M4 terminal block, ensuring the shield is bonded to the cabinet ground at one end only to prevent ground loops.
• Set the communication parity (None, Odd, Even) and character length (7 or 8 bits) to match the requirements of the slave device exactly to avoid frame errors.
• Ensure that bus termination resistors (typically 120 Ohm) are installed at both physical ends of the RS-485/RS-422 line to prevent signal reflections.
• Maintain physical separation from high-voltage AC lines to prevent induced noise from corrupting serial data transmission.
