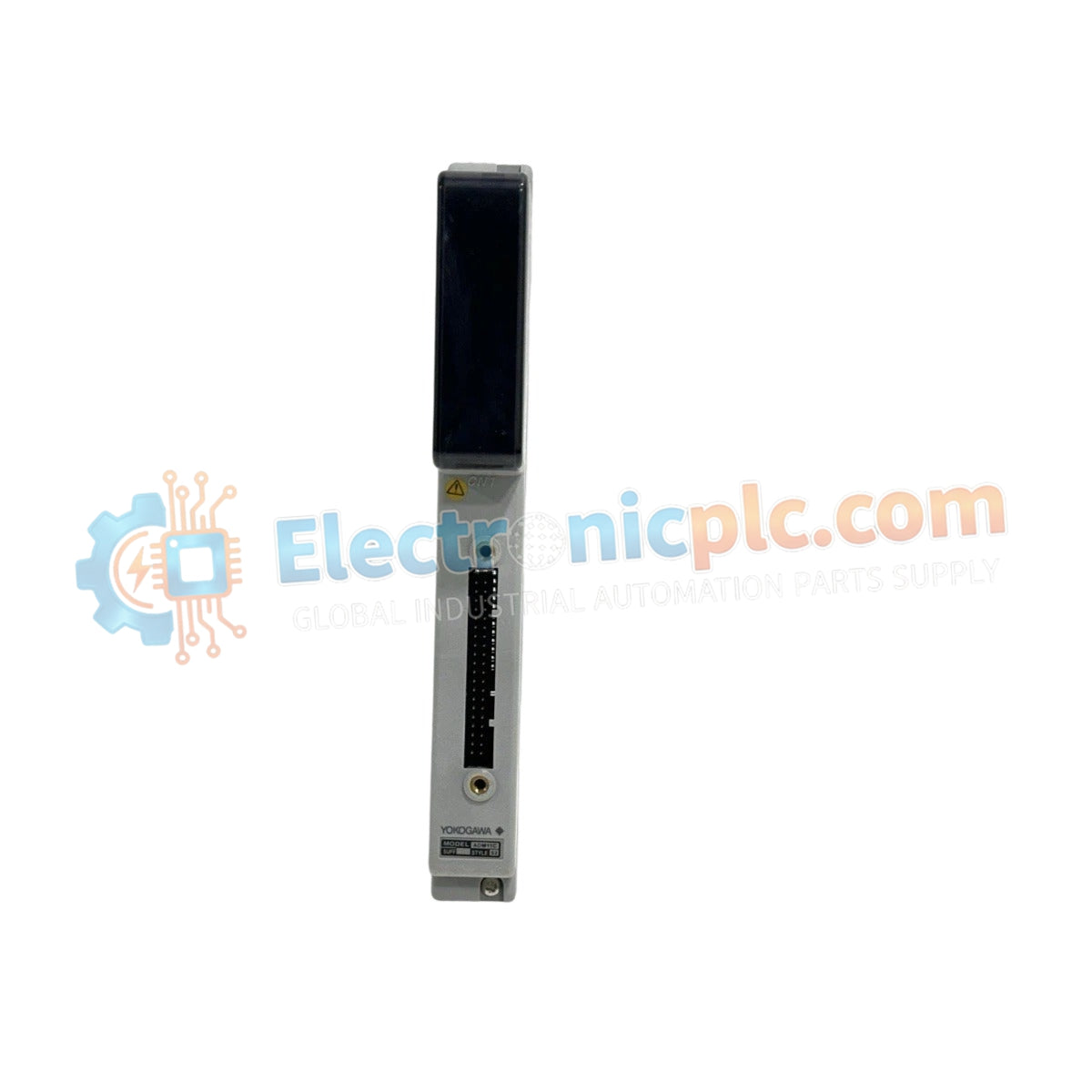

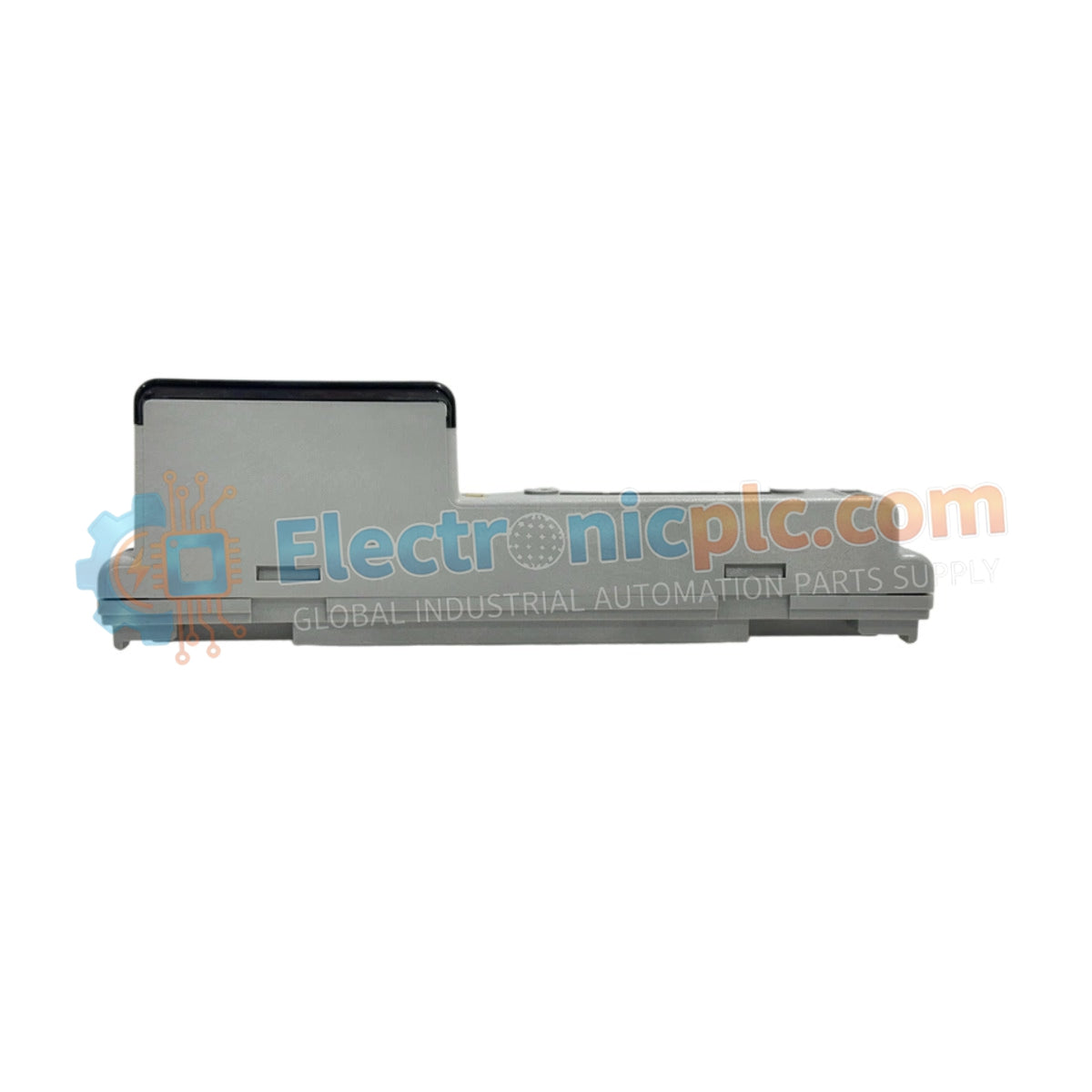

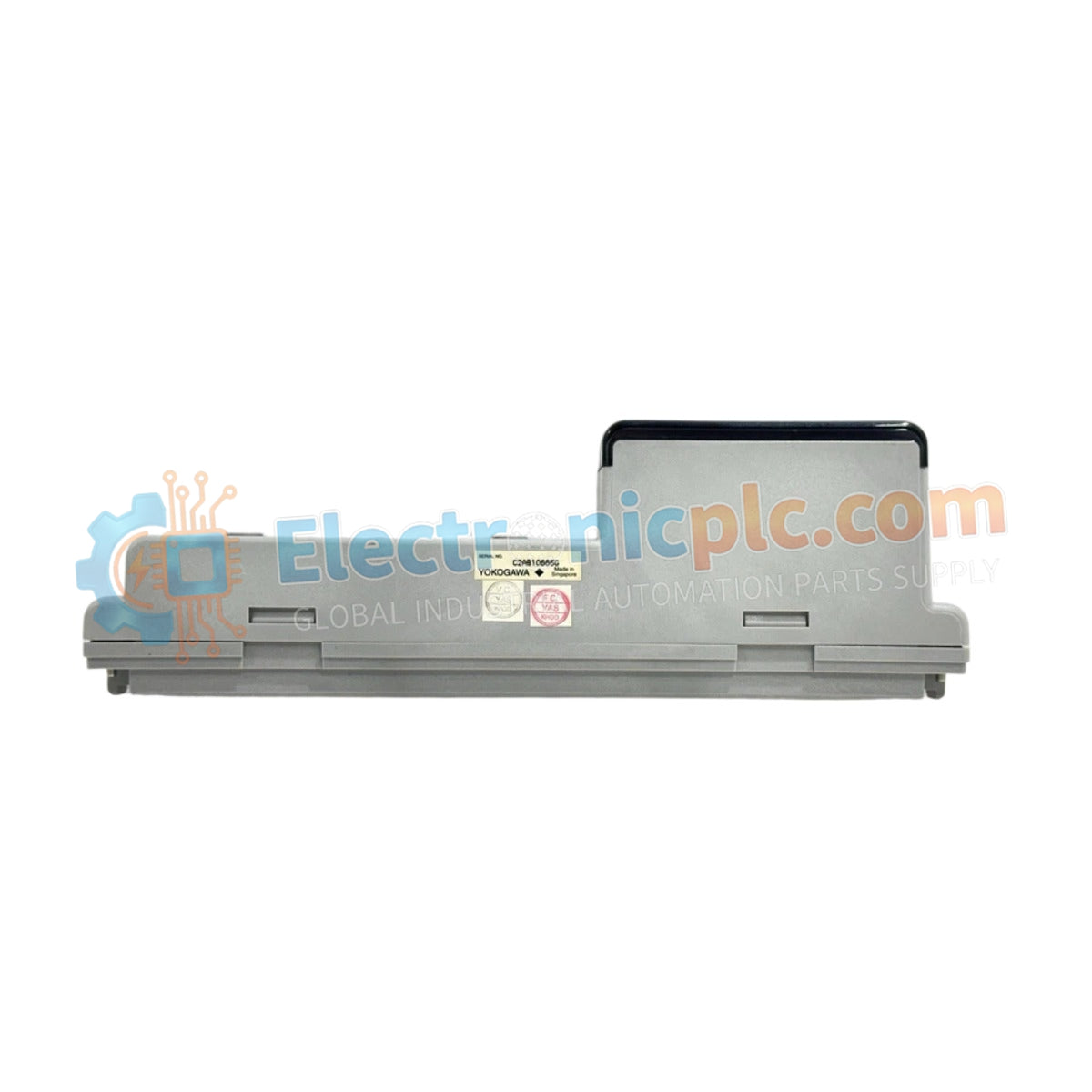

Configured for discrete signal acquisition in process control platforms, the Yokogawa ADC16 (ADC16 Contact Input Module) provides direct physical/electrical execution of 16-channel binary state detection for dry contact inputs.

Hardware Specifications

DCS Connectivity and Channel Isolation

The ADC16 module operates as a dedicated interface for monitoring binary status signals such as limit switches and relay contacts within Yokogawa CENTUM CS and CENTUM VP systems. Each of the 16 input channels features optical isolation to prevent ground loop interference and provide protection against electrical transients originating from the field side. This isolation barrier is critical for maintaining signal integrity when the module is interfaced with diverse field devices across the control network. Proper implementation of the 4-20 mA HART loop protocol standards is not applicable here as the module functions specifically for discrete dry contact sensing; however, maintain consistency in signal return paths to ensure the optical couplers function within their rated parameters.

Frequently Asked Questions

Q: Does the ADC16 support hot-swapping while the system is powered?

A: Generally, system racks supporting these modules require specific power management protocols. Ensure the system rack is powered down or configured for segment-specific isolation before extraction to prevent backplane arcing or short-circuiting the input bus.

Q: Is external voltage required to power the dry contact inputs?

A: The module is designed for dry contacts (voltage-free). The internal circuit provides the necessary wetting current to detect the ON/OFF state; do not apply external voltage sources to the input terminals as this will damage the optical isolation circuitry.

Field Installation Guidelines

1. Verify that the field wiring is routed away from high-voltage AC cables to prevent induced noise in the discrete input circuits.
2. Ensure the terminal block or MIL connector is fully seated and secured to maintain stable electrical contact.
3. For long cable runs, ensure that the cable shielding is grounded at the system rack side only to minimize electromagnetic interference.
4. Check the continuity of the dry contact loop using a multimeter in a de-energized state prior to terminating the wires to the module.
5. Confirm that the module is installed in the correct rack slot corresponding to the system configuration software mapping.
