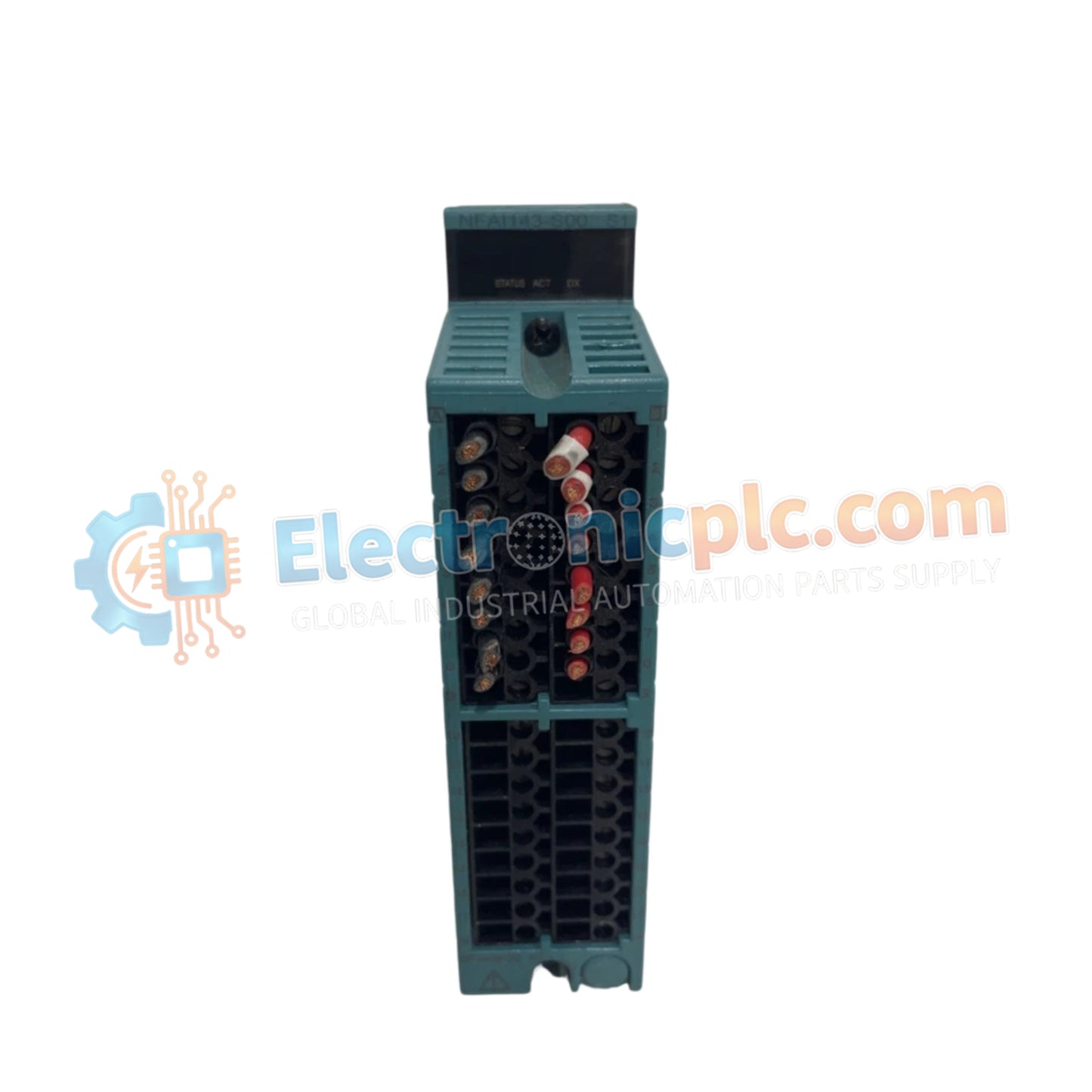

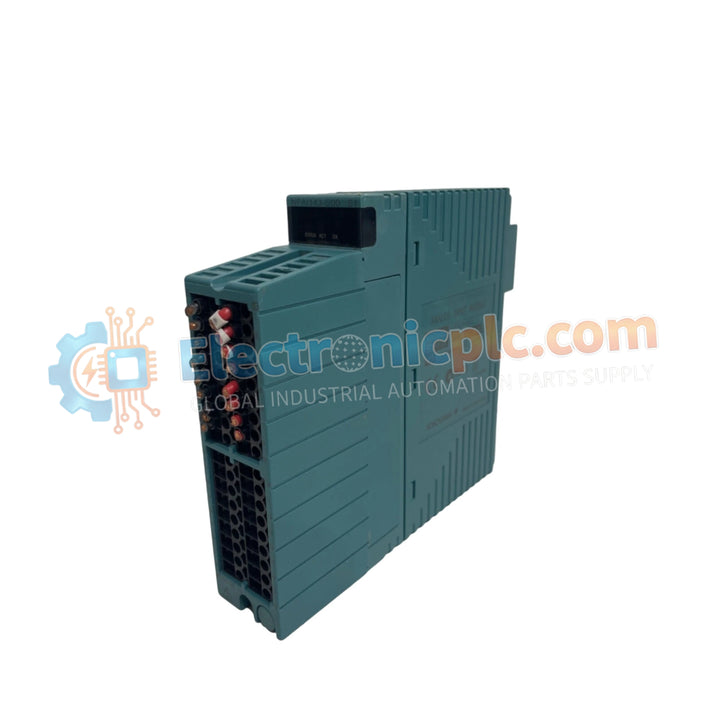

The YOKOGAWA NFAI143 is a high-density, 16-channel analog input module engineered for precision acquisition of 4–20 mA process signals within Yokogawa distributed control systems (DCS). It provides robust channel-to-channel isolation and flexible configuration options for modern industrial process loops.

Hardware Specifications

Process Control & Loop Technical Characteristics

The NFAI143 is optimized for reliability in mission-critical automation environments. Each channel features individual galvanic isolation up to 1500 V AC, effectively preventing common-mode noise and ground loops from impacting signal accuracy. The module provides a selectable transmitter power supply (24.0–25.5 V) for field devices, supporting both 2-wire and 4-wire configurations, which can be easily toggled via the hardware setting pins to accommodate diverse field instrumentation.

Frequently Asked Questions (FAQ)

Q: What protection does the module offer against signal faults?

A: The NFAI143 includes built-in overcurrent protection for all 16 channels, safeguarding the internal circuitry against short-circuits in the field wiring or faulty transmitter outputs.

Q: How can I change the transmitter type for a specific channel?

A: Transmitter types (2-wire vs. 4-wire) are configured using hardware setting pins located on the module. Ensure the system is powered down or in a safe maintenance state before adjusting these pins to avoid electrical hazards or configuration errors.

Field Installation Guidelines

• Mounting: Install the module in a clean, ventilated control cabinet. Maintain adequate spacing between modules to ensure optimal heat dissipation and prevent thermal drift, which is rated at a maximum of ±0.01%/°C.
• Wiring: Use shielded twisted-pair instrumentation cable for all 4–20 mA loops. Terminate the shield drain at the dedicated cabinet ground bar to maintain noise immunity.
• Power Verification: The module draws 230 mA (5 V DC) and 540 mA (24 V DC). Verify that the control station power supply bus has sufficient overhead capacity to support the cumulative consumption of all installed I/O modules.
• Calibration: While the module is factory-calibrated for ±0.1% accuracy, periodic loop checks should be performed during plant shutdowns to ensure the signal path remains within tolerances, especially after extensive field maintenance.
