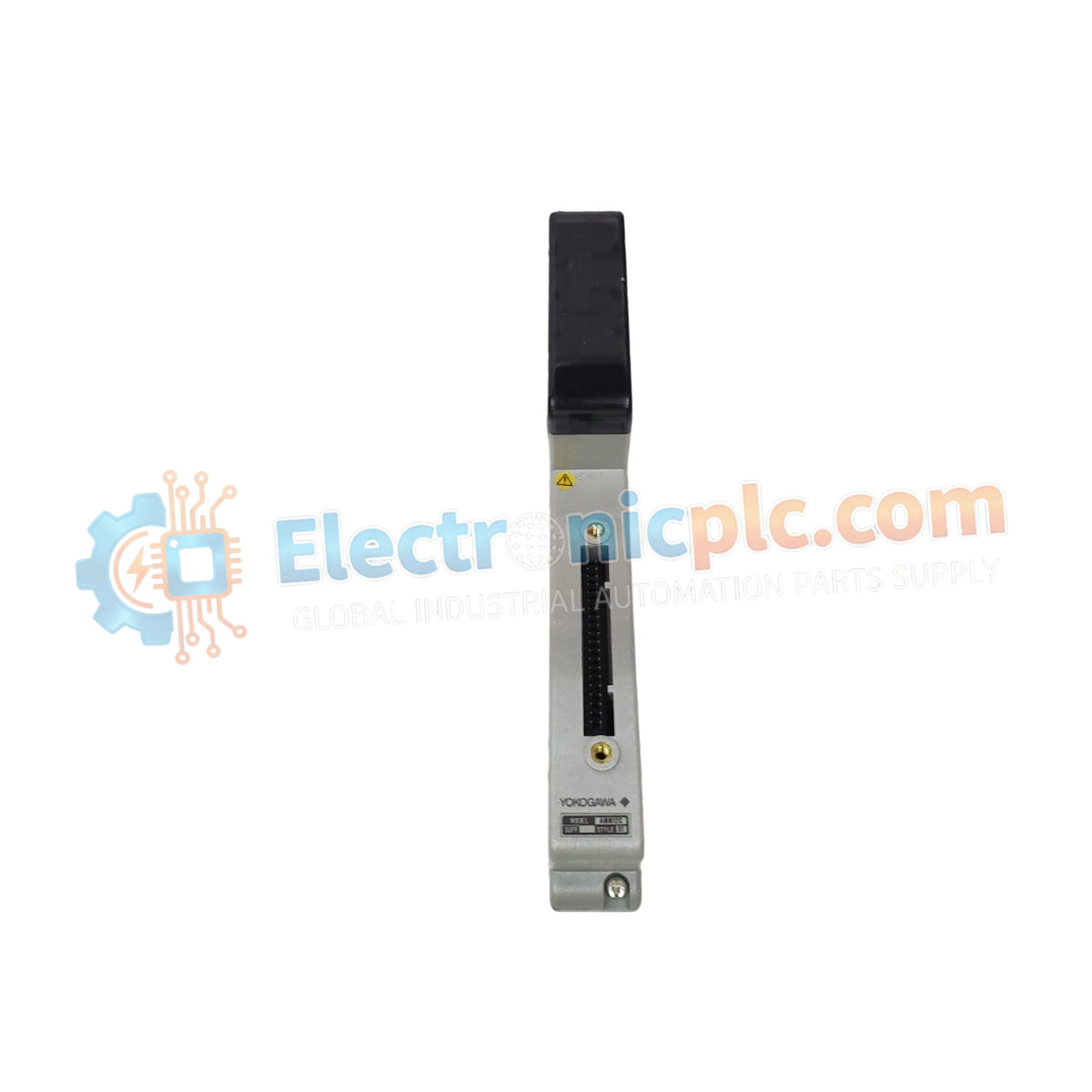

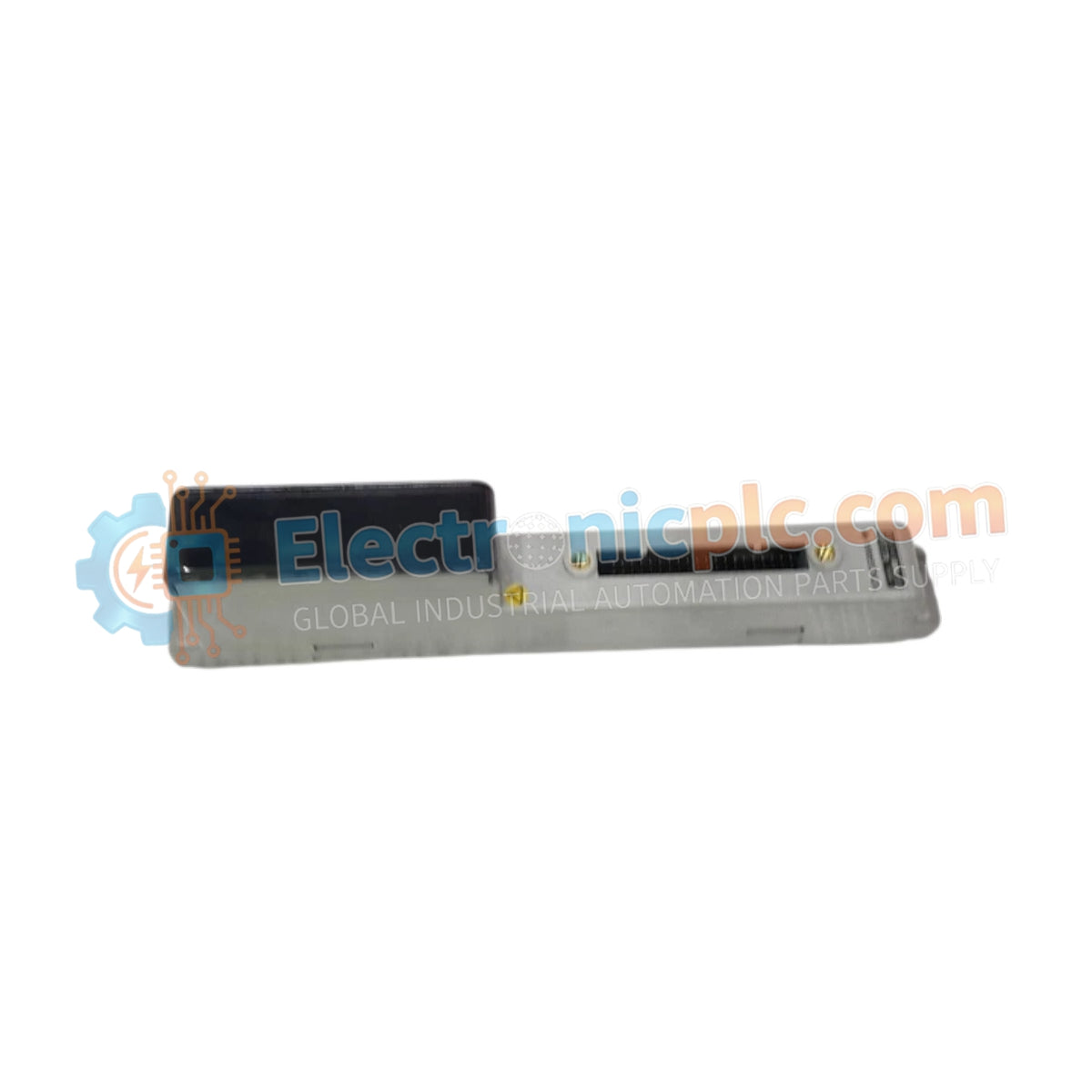

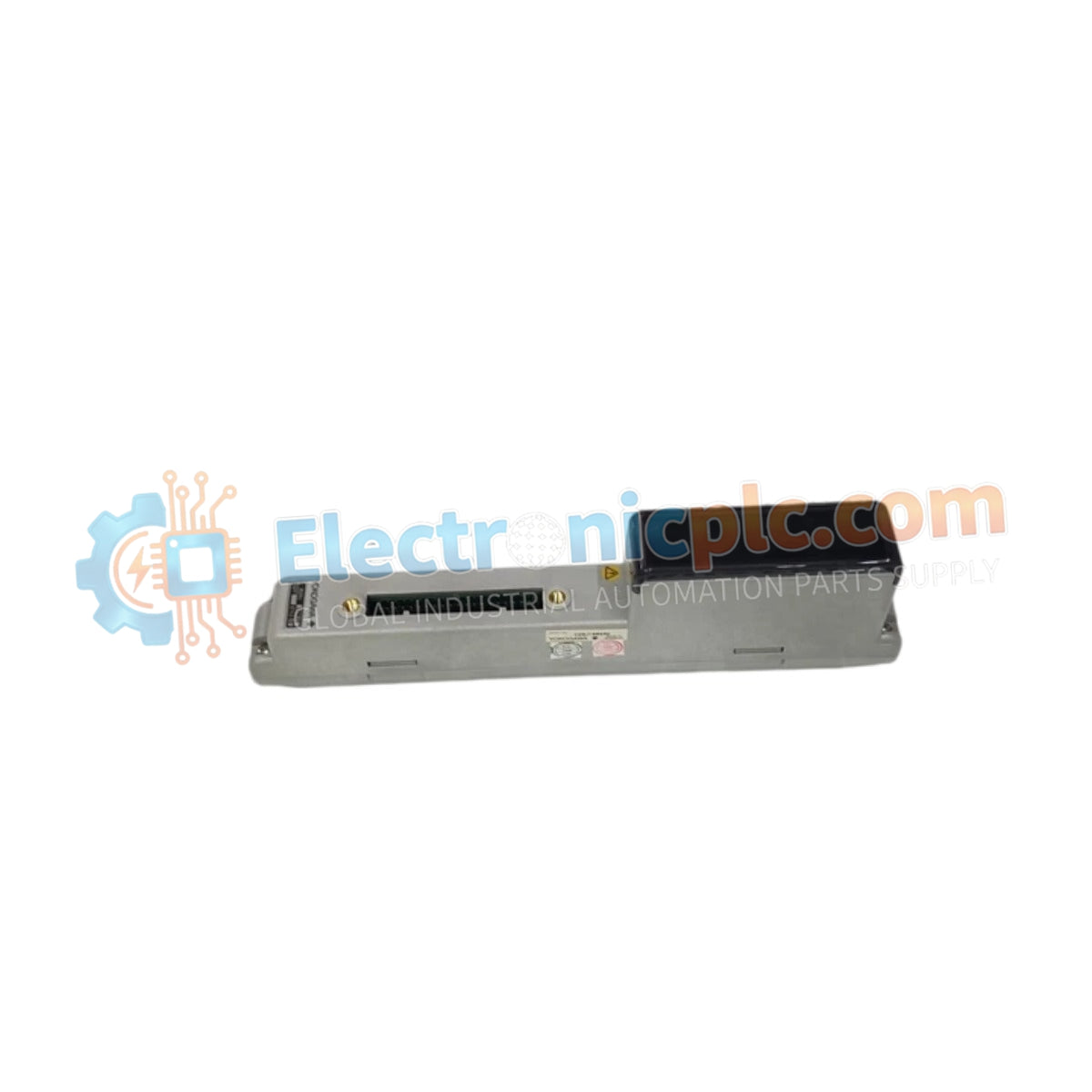

Configured for high-density signal processing in distributed automation platforms, the Yokogawa AMM12C/ZCT (AMM12C Voltage Input Multiplexer Module) provides direct electrical execution for routing and multiplexing analog voltage inputs. This module manages 16 input channels, ensuring consistent data acquisition and scaling for process variables within industrial control architectures.

Suffix Breakdown & Model Matrix

Hardware Specifications

DCS Instrumentation and Multiplexing Characteristics

The AMM12C/ZCT architecture facilitates the consolidation of multiple voltage signal sources into a single processing path, optimizing input capacity within I/O cabinets. The module supports dual-redundant deployment, ensuring that signal acquisition paths remain active during primary controller switchover or communication bus faults. By maintaining strict electrical isolation between input terminals and the backplane, the unit effectively suppresses common-mode noise, maintaining the high-accuracy requirements necessary for precision voltage monitoring in process control environments.

Frequently Asked Questions

Q: Does the AMM12C/ZCT support hot-swapping while the process loop is active?

A: No, the module requires the removal of power from the backplane slot before extraction to prevent electrical transients from disrupting the redundant signal bus.

Q: Can this module be configured for mixed current and voltage inputs?

A: No, the AMM12C/ZCT is specifically designed as a voltage input multiplexer; applying current inputs without appropriate external shunt resistors will result in inaccurate readings or hardware damage.

Field Installation Guidelines

• Ensure the module is securely seated in the I/O base unit to establish reliable contact with the redundant backplane connectors.
• Verify that all field voltage signals are within the input range of the multiplexer before termination to prevent potential component overvoltage.
• Route analog input wiring separately from high-voltage AC lines to mitigate electromagnetic interference and maintain measurement stability.
• Ensure that shield wires are terminated to the designated cabinet earth bar to preserve the integrity of the multiplexed analog signal path.
• Periodically check terminal tightness to ensure low-resistance connectivity, especially in environments subject to thermal cycling or mechanical vibration.
