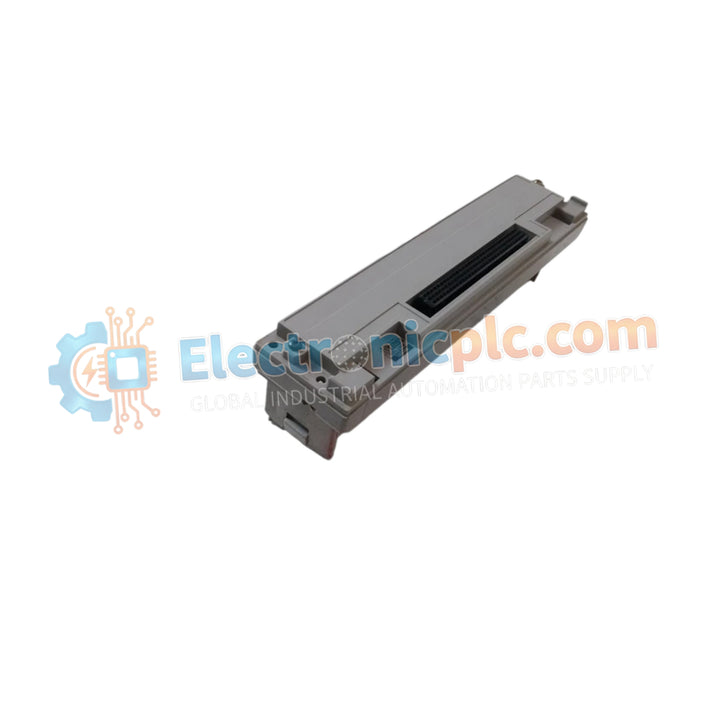

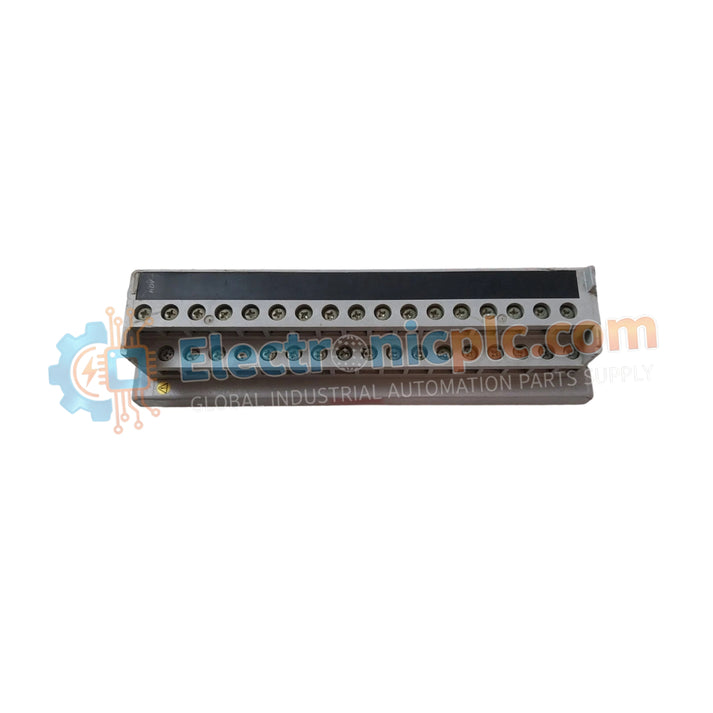

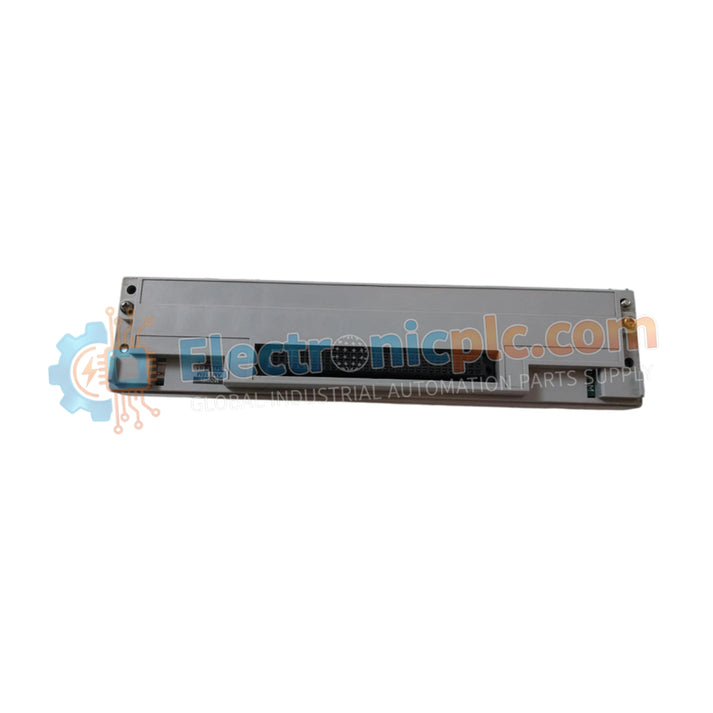

Configured for high-precision analog signal acquisition in CENTUM and STARDOM system platforms, the YOKOGAWA AMT16M (AMT16M Transmitter Input Module) provides direct physical/electrical execution for multi-range process transmitter monitoring.

Hardware Specifications

DCS Process Loop Connectivity

The AMT16M module integrates into control networks supporting 4-20 mA HART loop protocol connectivity, allowing for seamless transmitter data mapping and status diagnostics. To maintain measurement precision across the 16 available channels, the architecture incorporates channel-to-channel isolation. This electrical segregation effectively prevents ground loops and noise injection from external sensors, ensuring the 16-bit A/D conversion cycle remains within the specified +/- 0.1 % accuracy threshold.

Frequently Asked Questions (FAQ)

Q: Can the input range be changed while the module is powered?

A: Range configuration settings are typically stored in non-volatile memory and require a system-level command via the engineering station. It is not recommended to modify input scaling while the module is actively processing live process data to avoid signal spikes.

Q: How is the module protected against electromagnetic interference (EMI)?

A: The module is designed for DIN-rail mounting and should be installed within a grounded metallic cabinet. Shielded twisted-pair cabling must be used for all 4-20 mA or voltage loops, with shields terminated at the cabinet common ground to ensure signal integrity.

Field Installation Guidelines

• Mounting: Secure the AMT16M to a standard 35 mm DIN rail. Ensure horizontal orientation to maintain optimal thermal dissipation across the internal circuitry within the -20 deg C to 60 deg C range.
• Wiring: Connect field transmitters using appropriate wire gauges (typically 0.5 mm to 1.5 mm). Ensure tight screw terminal engagement to minimize contact resistance, which can affect 0-10 V and 1-5 V measurement accuracy.
• Power Supply: Provide a stable 24 V DC power source. Use a dedicated regulated supply if multiple modules are installed in the same rack to prevent voltage dips during peak channel scanning.
• Grounding: Verify that the DIN rail or module ground lug is connected to the facility protective earth (PE) bus. This is necessary to maintain the galvanic isolation properties and protect against common-mode surge events.
