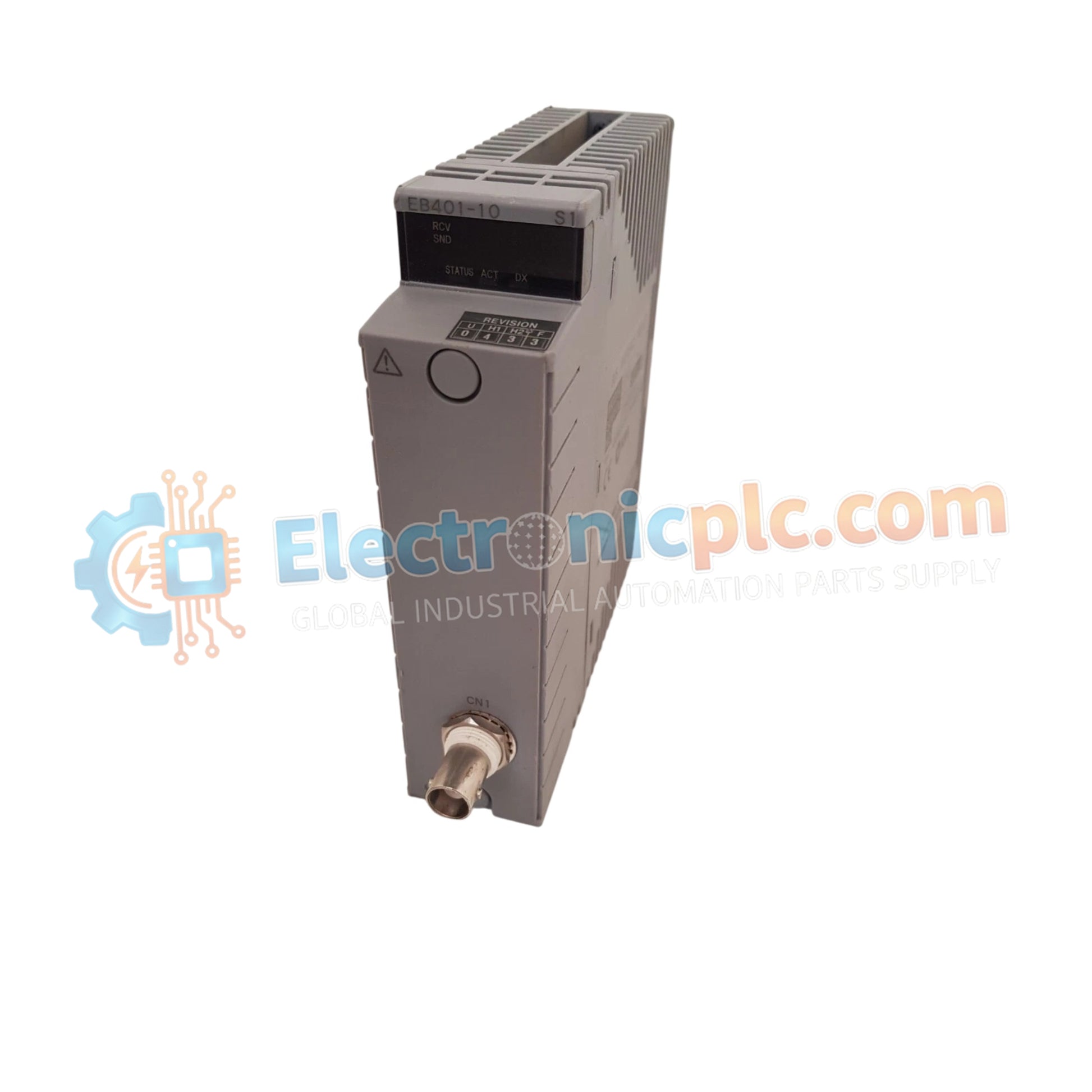

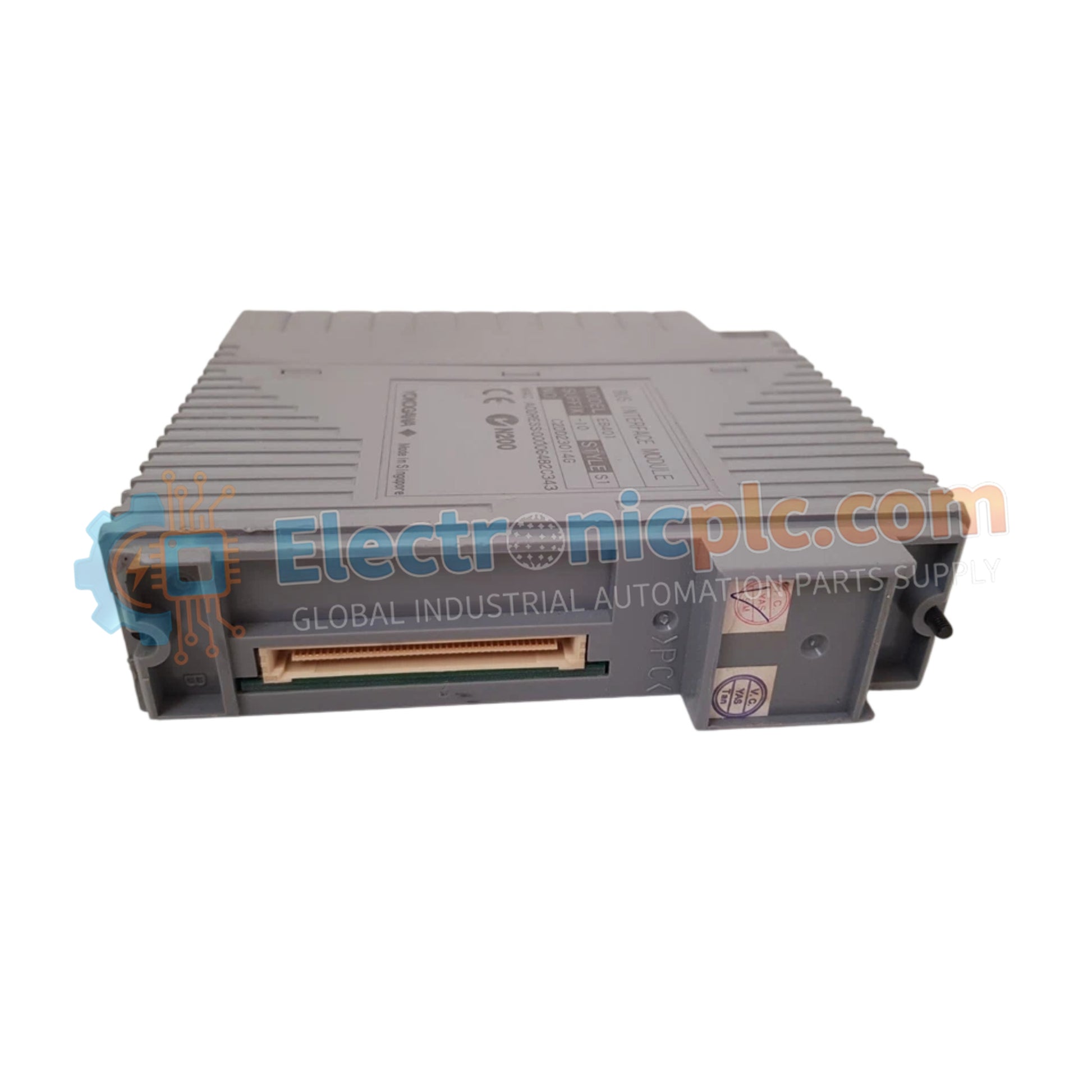

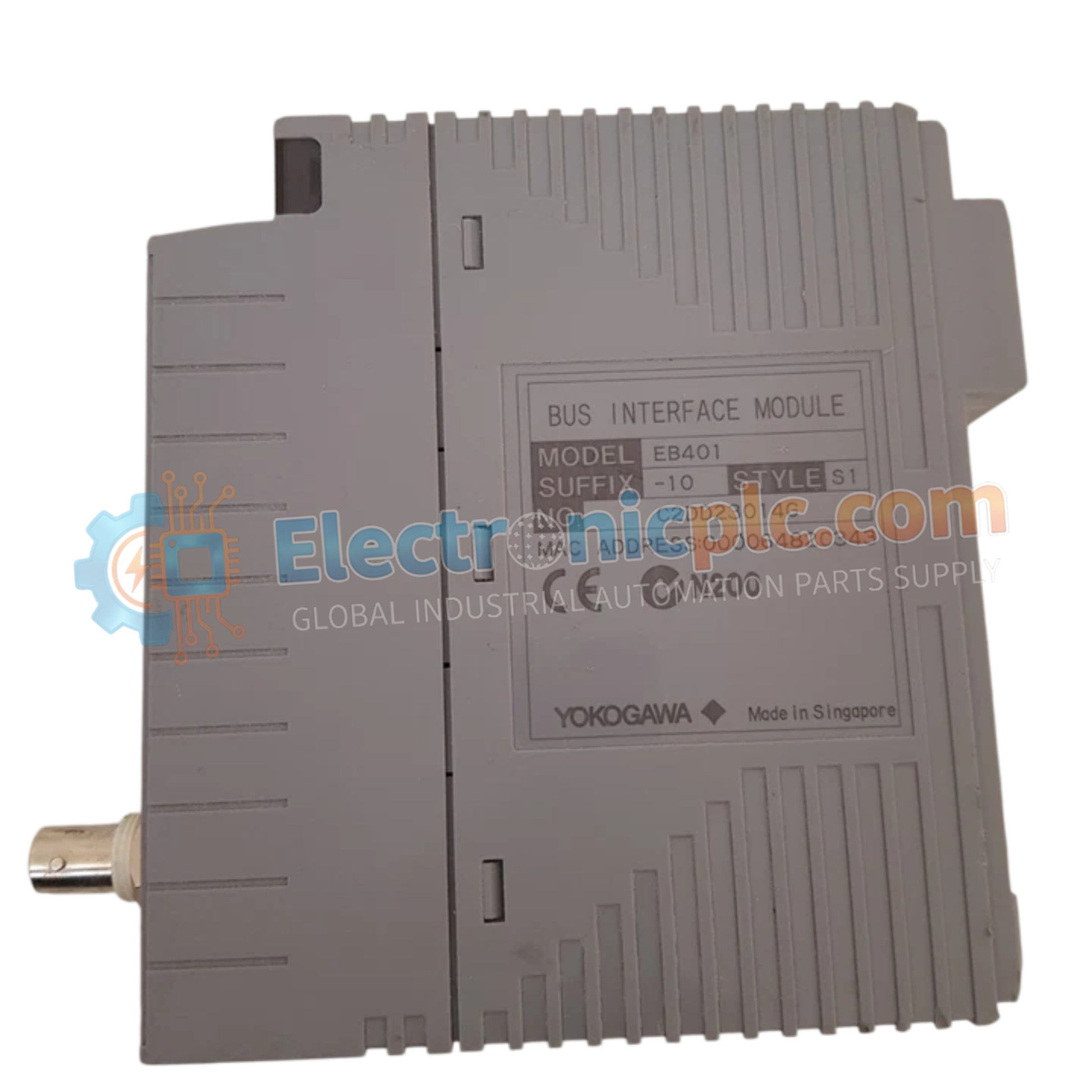

Configured for high-speed data exchange and remote I/O management within industrial automation environments, the Yokogawa EB401-10-S1 (EB401-10-S1 ER Bus Interface Master Module) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

• EB401: Base model designation for the ER Bus interface master module hardware architecture.
• -10: Version suffix indicating standard port density and protocol handling capabilities.
• -S1: Hardware build revision suffix specifying standard industrial environmental grading and mounting options.

Hardware Specifications

4-20 mA HART Loop Protocol

The module coordinates remote I/O data streams across the Ethernet Remote (ER) bus network, ensuring transparent transmission of analog loop signals, including 4-20 mA HART variables, from field termination units back to the central controller. Galvanic isolation across the power input and communication ports prevents ground loop interference and protects internal processing nodes from transient voltage surges.

Frequently Asked Questions

Q: Does the EB401-10-S1 module support online hot-swapping during active system operations?

A: Power must be disconnected prior to servicing or replacing the module to prevent electrical arcing and backplane communication disruption.

Q: How is power supplied to the interface master module during normal operation?

A: The unit requires an external DC power source operating at 24 V DC with a 20 percent tolerance, consuming up to 15 W under maximum load.

Field Installation Guidelines

• Mount the module securely onto a standard DIN rail within the designated control cabinet, ensuring proper mechanical clearance for thermal dissipation.
• Connect the 24 V DC power supply lines to the designated input terminals, verifying correct polarity before applying power.
• Attach Ethernet and ER bus communication cables to the appropriate ports, ensuring proper shielding and grounding to mitigate electromagnetic interference.
