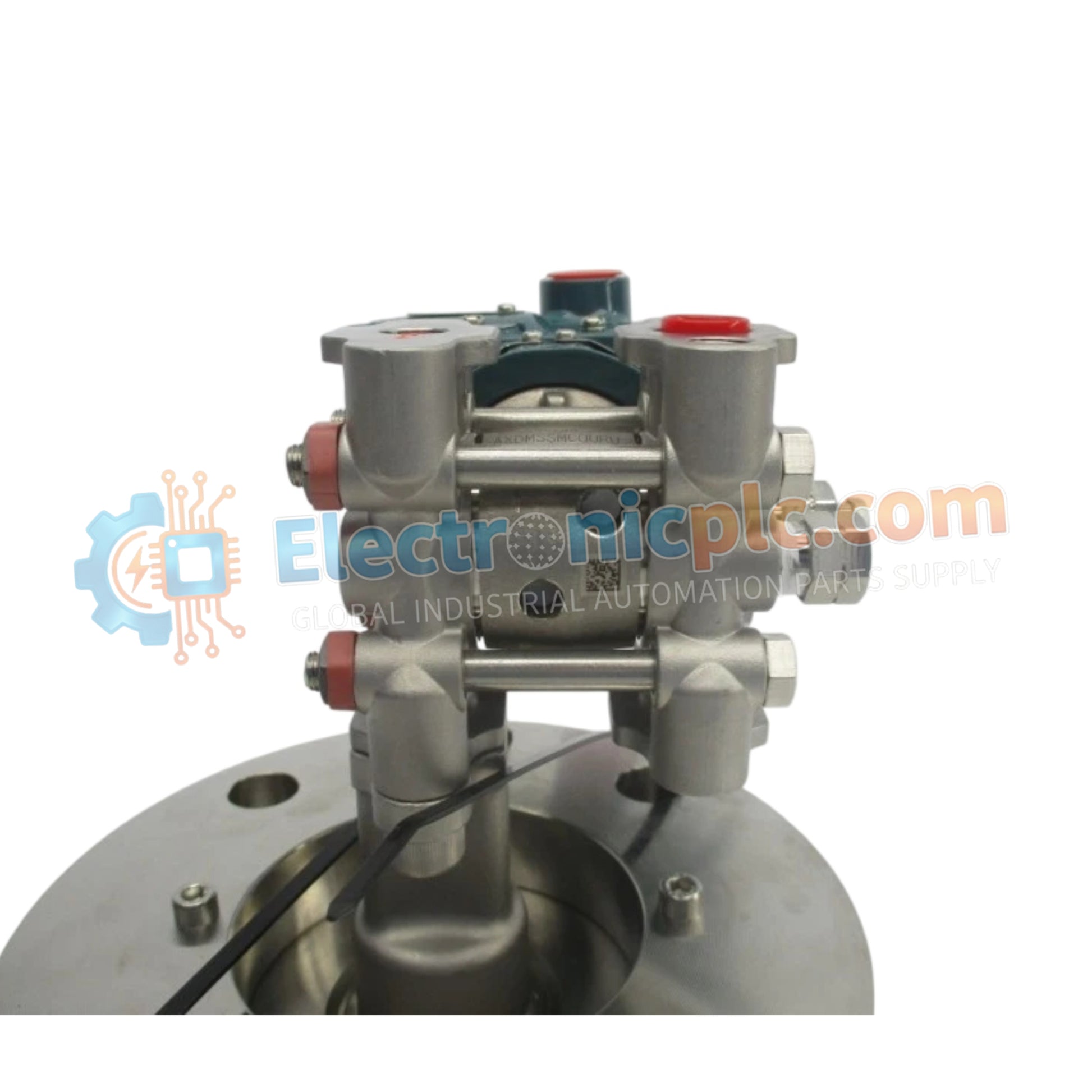

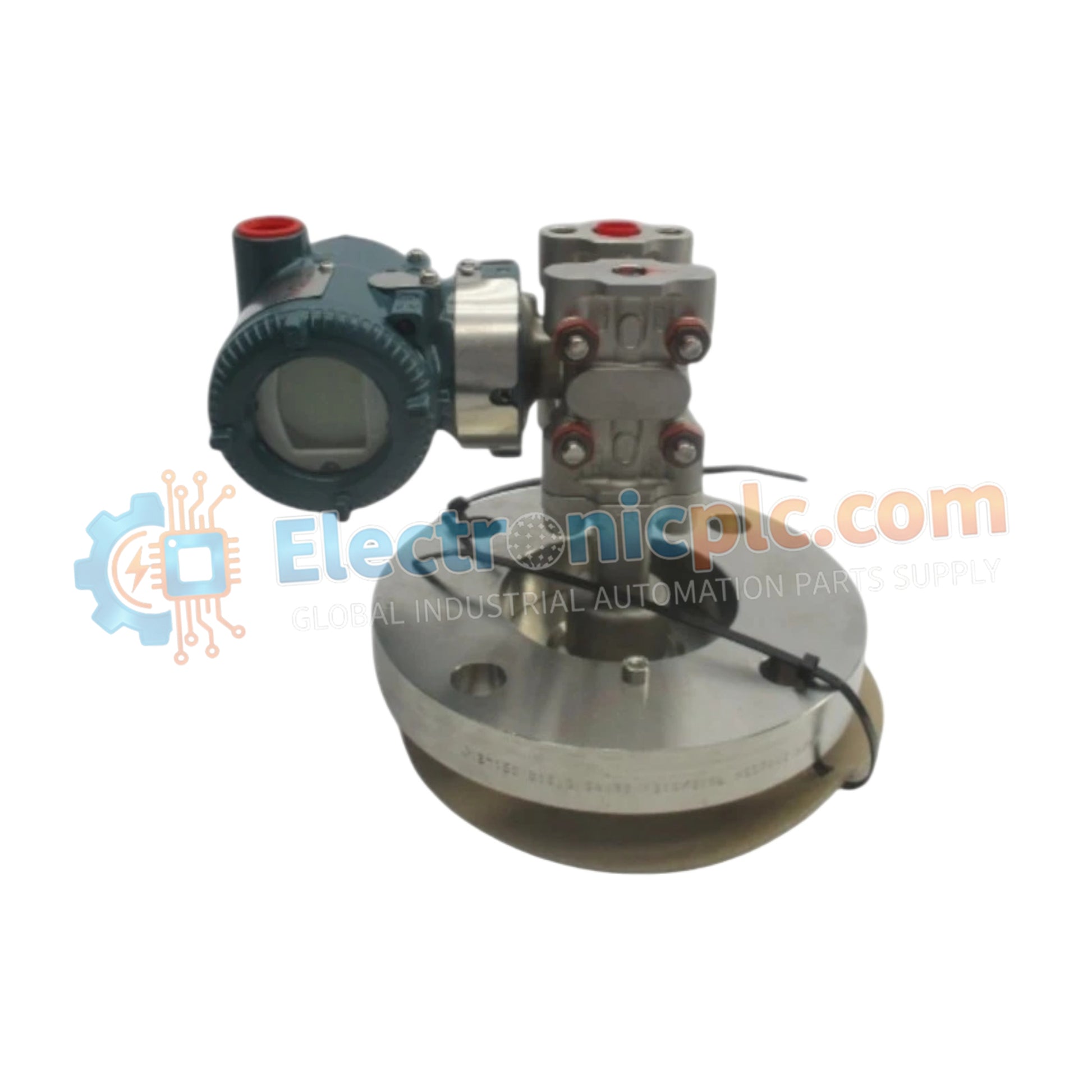

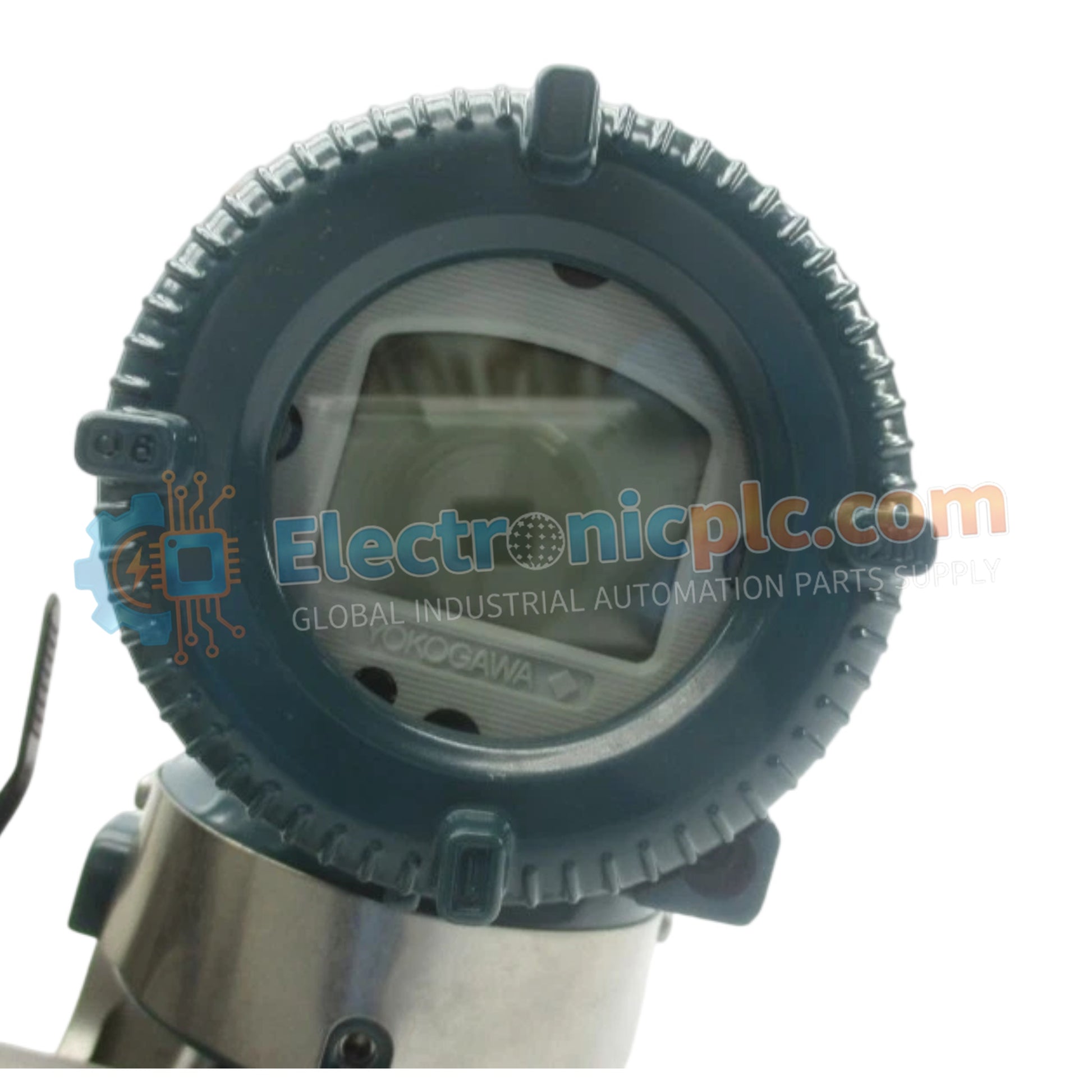

Yokogawa EJA210A Differential Pressure Transmitter

Yokogawa EJA210A Differential Pressure Transmitter

The Yokogawa EJA210A is a specialized flange-mounted differential pressure transmitter engineered for liquid level, density, and interface measurement in industrial tanks. Utilizing Yokogawa’s renowned DPharp sensing technology, this transmitter is...

18 people are viewing this right now

Availability: In stock

SKU: EJA210A Model
Vendor: Yokogawa
Category: Differential Pressure Transmitter
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Yokogawa EJA210A is a specialized flange-mounted differential pressure transmitter engineered for liquid level, density, and interface measurement in industrial tanks. Utilizing Yokogawa’s renowned DPharp sensing technology, this transmitter is designed to provide high-precision measurements even under challenging process conditions.

Technical Specifications

Parameter Specification
Model EJA210A
Measurement Type Differential Pressure
Static Pressure Up to 16 MPa (2300 psi)
Output Signal 4 to 20 mA DC (HART 5 or 7)
Accuracy ±0.2% of span
Stability ±0.2% of URL for 10 years
Protection Rating IP67, NEMA 4X
Operating Temperature -40 to 85°C (-40 to 185°F)
Process Connection 3-inch or 4-inch Flange

Core Technologies

The EJA210A's performance is anchored by the DPharp digital silicon resonant sensor. Unlike conventional analog sensors, this technology measures pressure as a frequency, which minimizes signal drift and enhances long-term stability.

The transmitter supports flexible material options for wetted parts, including Hastelloy C-276 and Tantalum, ensuring the device remains resistant to highly corrosive process fluids found in chemical or petrochemical applications.

Frequently Asked Questions

  • Q: Can this transmitter be used in hazardous locations?
    • A: Yes. The EJA210A holds multiple explosion-proof certifications, including FM, ATEX, and IECEx. Always verify that the specific unit’s nameplate matches your facility's hazardous area requirements.
  • Q: How does the "L" range differ from the "M" range?
    • A: The "L" range (Low) is calibrated for fine, low-pressure applications (1–100 kPa), while the "M" range (Medium) is intended for significantly higher pressure applications up to 14 MPa.

Field Installation Guidelines

  • Mounting: Install the transmitter flange directly to the tank nozzle. Ensure that the mounting gasket is suitable for the process fluid chemistry and the flange pressure rating.
  • Calibration: Verify the zero point once the transmitter is installed. When measuring liquid levels, account for the hydrostatic head pressure caused by the liquid density and the specific installation height.
  • Wiring & Grounding: Use high-quality shielded, twisted-pair cabling for the 4–20 mA loop. To maintain the IP67 protection rating, ensure cable glands are tightened properly and the terminal housing cover is sealed. Ground the transmitter using the designated external screw to prevent interference.
