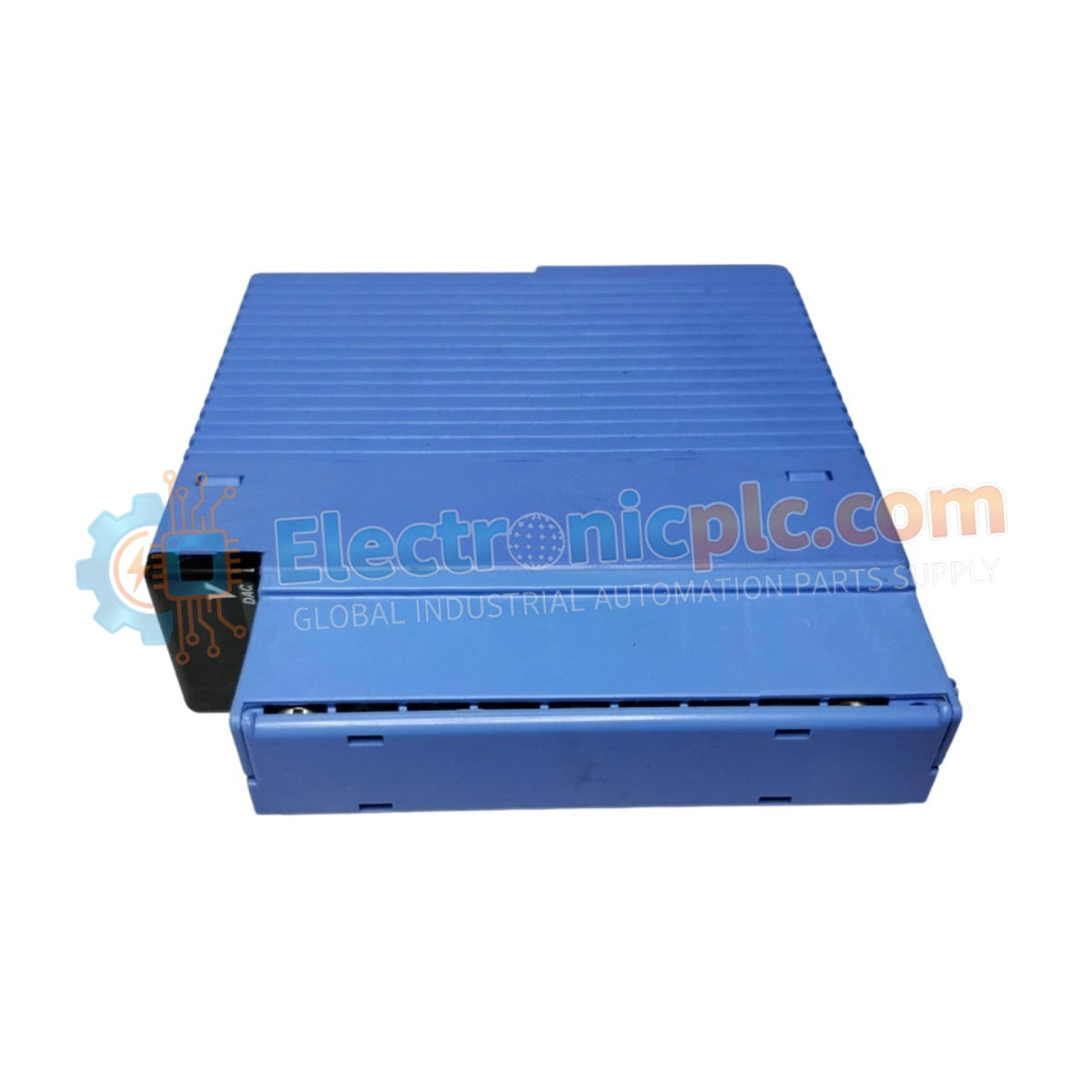

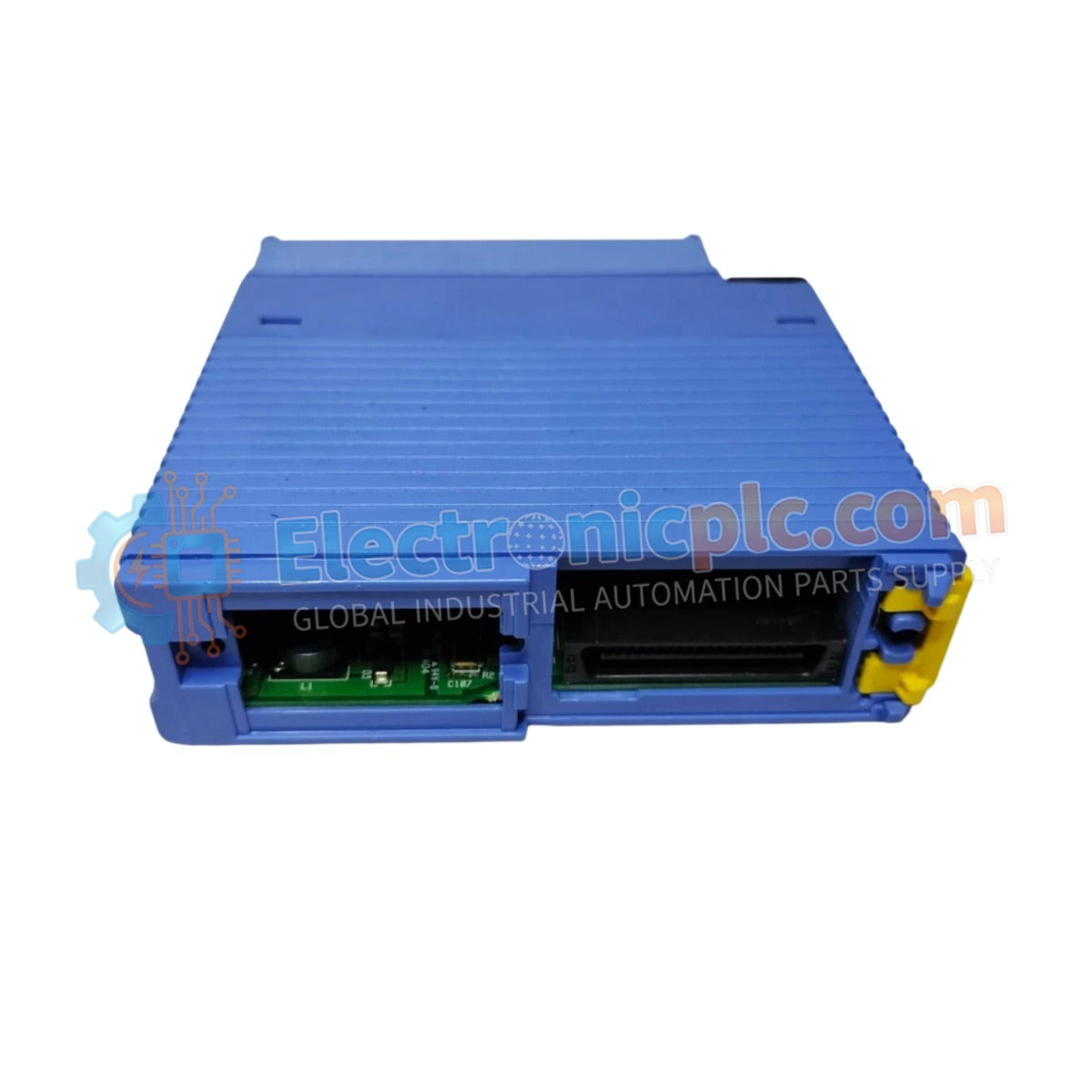

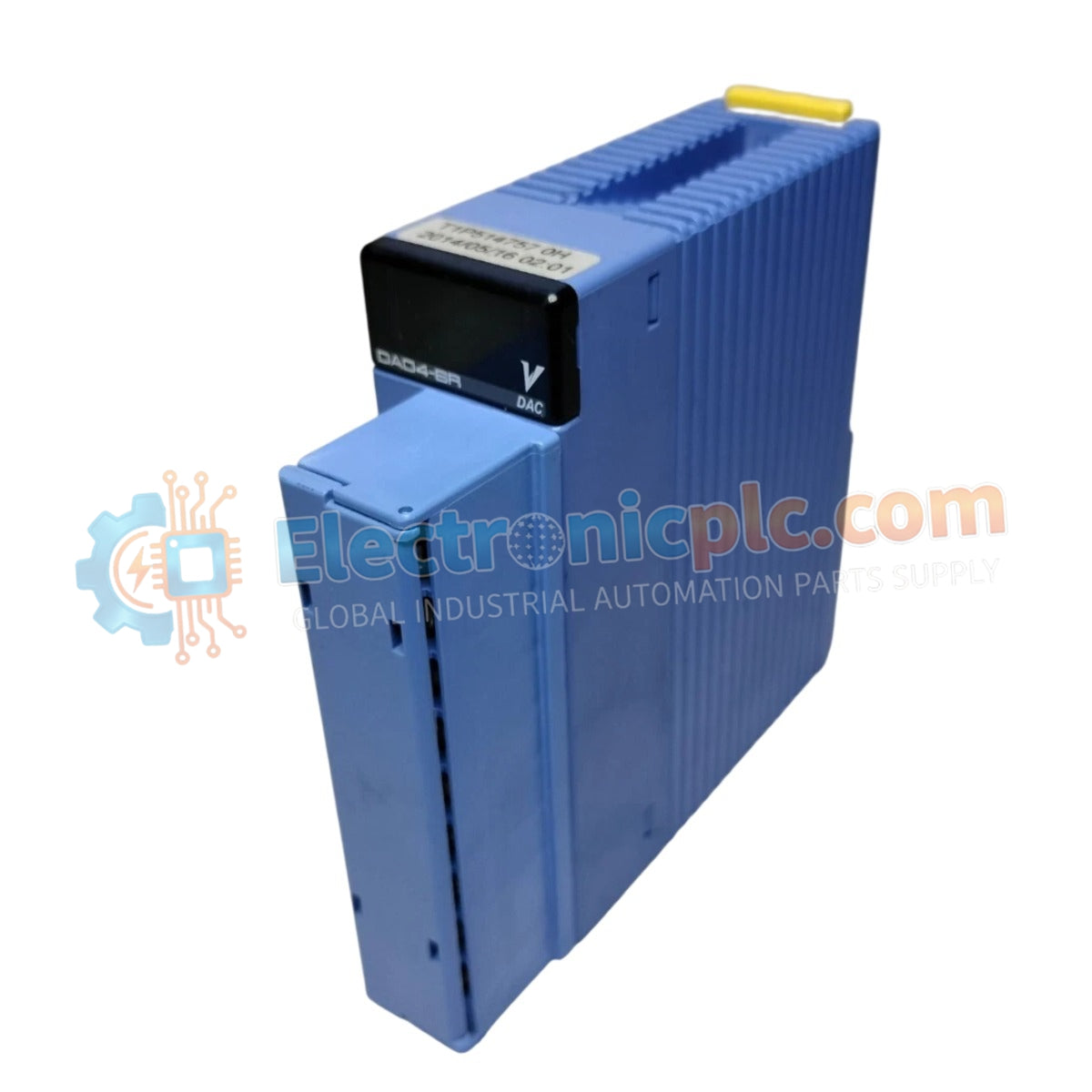

The Yokogawa F3DA04-6R (F3DA04-6R) is a precision digital-to-analog (D/A) conversion module designed for the FA-M3 programmable controller platform. It provides four independent channels of high-resolution signal output, engineered for synchronized control in high-speed industrial processes.

Hardware Specifications

Performance and Synchronization

The F3DA04-6R is optimized for applications requiring high-fidelity command signals, such as precise position control, motor speed regulation, and advanced thermal management. The module's capability to update all active channels simultaneously ensures deterministic behavior in coordinated multi-axis or multi-loop control sequences. With a highly efficient conversion speed of 2 µs per channel, the F3DA04-6R minimizes latency between CPU command output and field device response, facilitating stability in high-dynamic control loops.

Frequently Asked Questions

Q: Are the output ranges fixed or user-configurable?

A: The output ranges are highly flexible and can be easily configured via software, allowing the module to support various voltage and current signal requirements without hardware adjustments.

Q: How does the module ensure synchronized signal updates across channels?

A: The F3DA04-6R features an internal update logic that triggers all active channels concurrently, preventing timing skew between outputs, which is critical for complex, synchronized industrial processes.

Field Installation Guidelines

1. Confirm that the FA-M3 base unit is powered off before module insertion to protect the backplane pins.
2. Ensure secure seating of the module in the designated slot, utilizing the provided retaining hardware to minimize mechanical vibration.
3. Use high-quality shielded cabling for all analog output signal runs to prevent electrical noise from degrading the 16-bit signal resolution.
4. Route output signal cables away from high-current AC power lines to maintain signal purity.
5. Perform a comprehensive loop calibration during commissioning to confirm that the software-configured output ranges match the requirements of the connected field devices.
