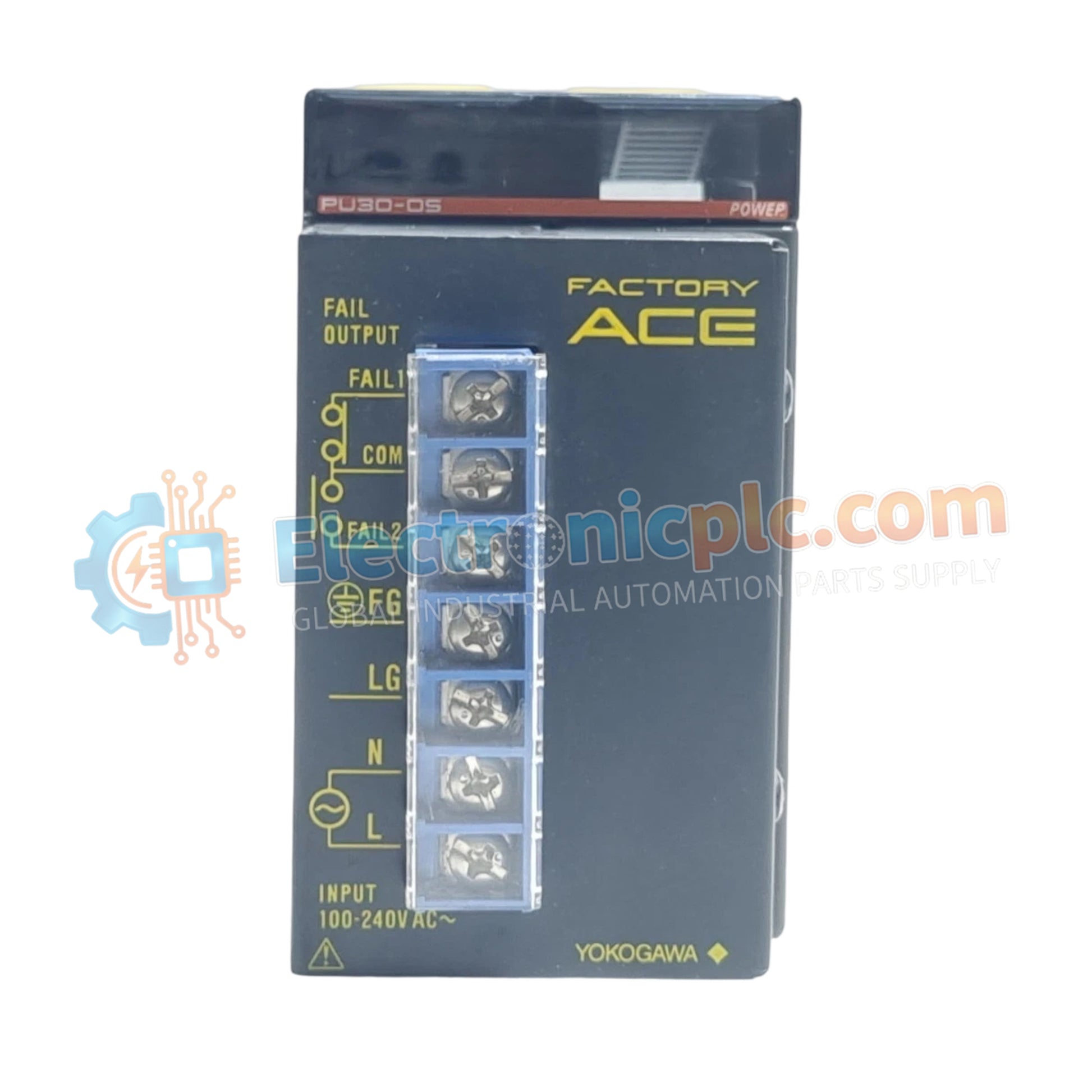

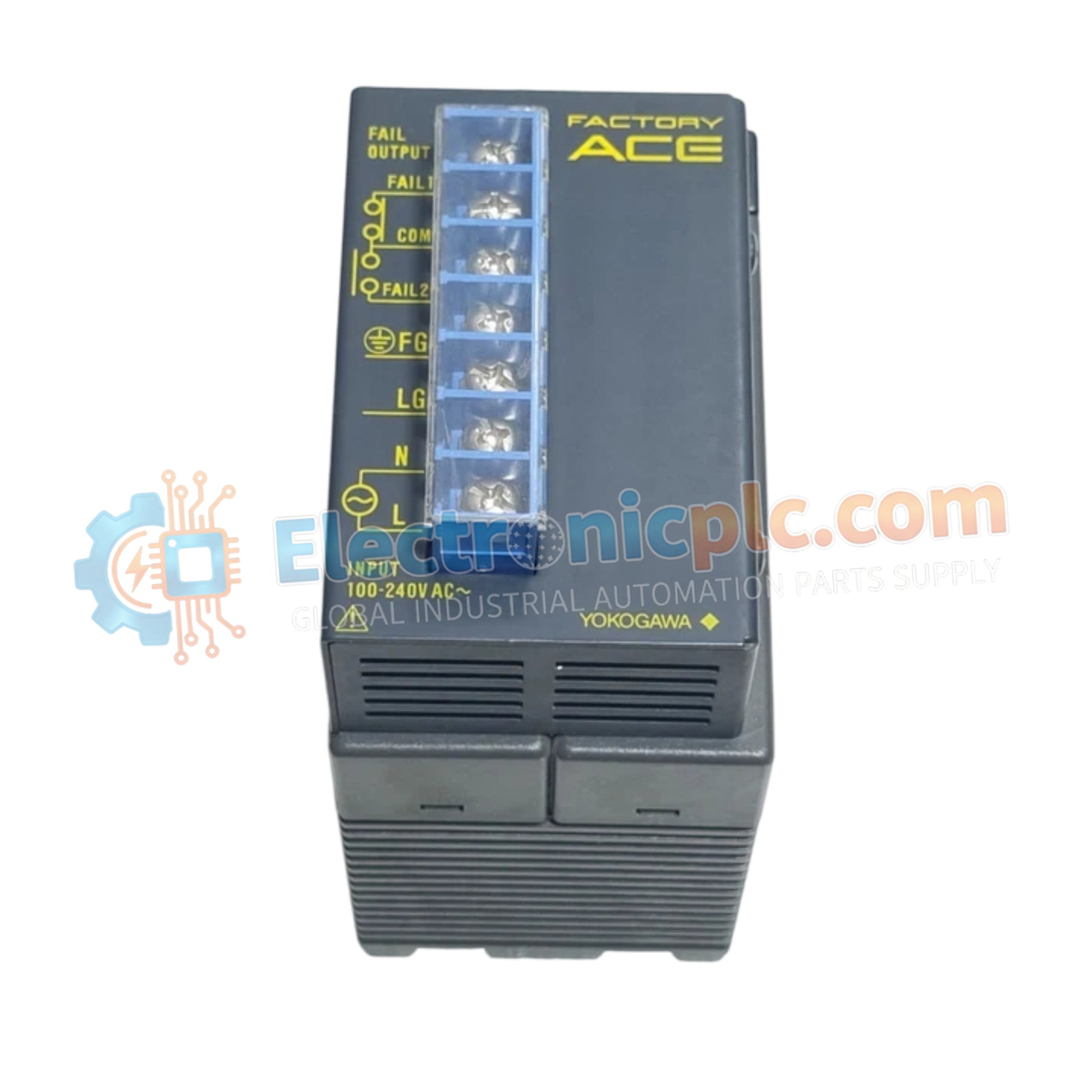

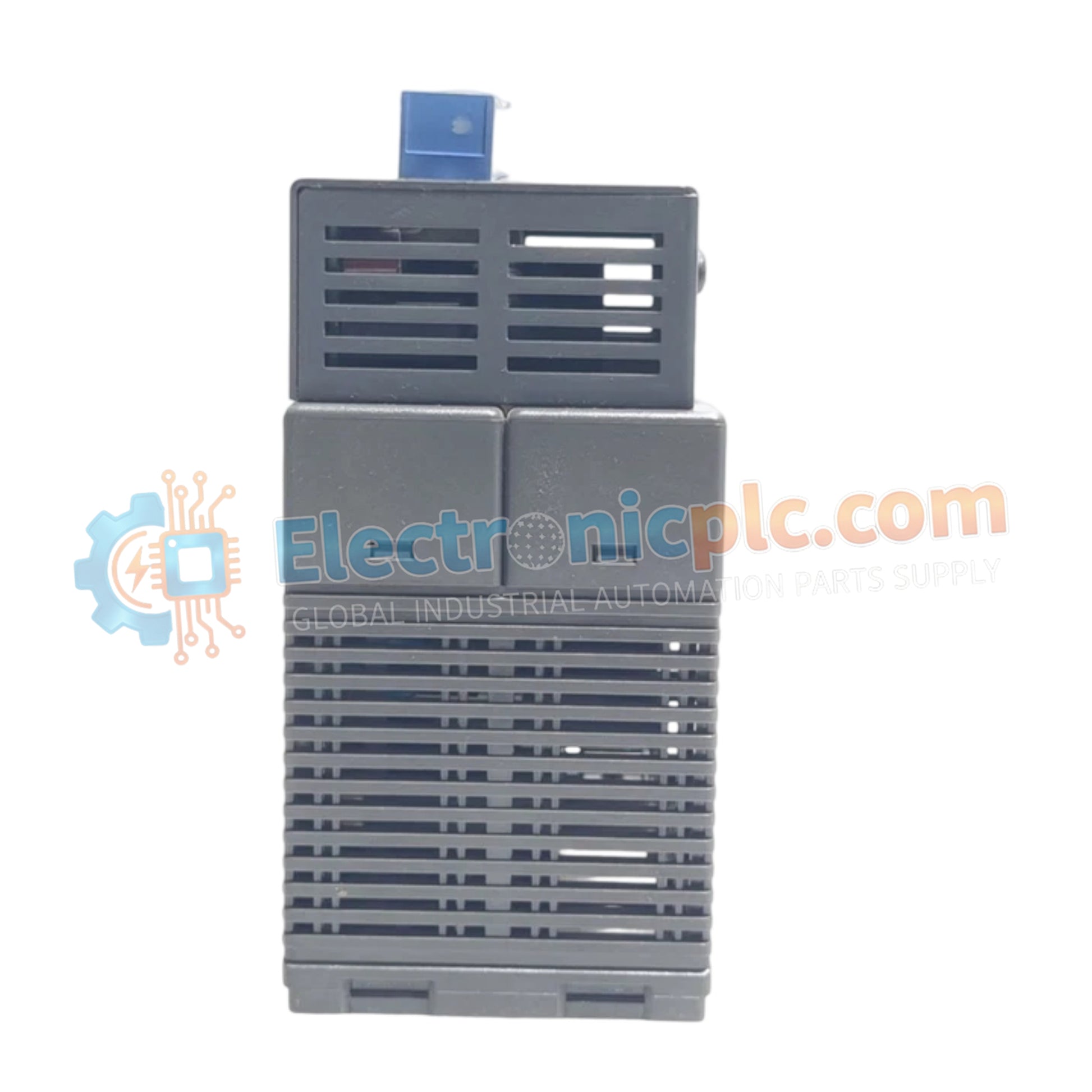

Yokogawa F3PU30 Power Supply Module

Yokogawa F3PU30 Power Supply Module

Configured for power conversion and voltage regulation within FA-M3 Range-free Multi-controller systems, the Yokogawa F3PU30 (F3PU30 Power Supply Module) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

  • ...
21 people are viewing this right now

Availability: Low stock: 50 left

SKU: F3PU30
Vendor: Yokogawa
Category: Power Supply Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Configured for power conversion and voltage regulation within FA-M3 Range-free Multi-controller systems, the Yokogawa F3PU30 (F3PU30 Power Supply Module) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

  • F3PU30: Base model designation for the power supply module architecture designed for FA-M3 rack systems.
  • Standard Build: Standard AC input configuration supporting single-phase power distribution.

Hardware Specifications

Parameter Specification
Model F3PU30
Brand Yokogawa
Origin Japan
Weight 0.38 kg
Dimensions Standard FA-M3 power supply module form factor
Operating Temp Standard industrial temperature range (0 to 55 deg C implied)
Power Consumption 100 VA max
Input Voltage 100-240 V AC, single-phase, 50/60 Hz (fluctuation range: 85-264 V AC)
Output Voltage 5 V DC at 6.0 A rated output current
Isolation & Dielectric Insulation resistance 500 V DC, 5 Mohm or more; dielectric strength 1500 V AC for 1 minute

Channel-to-Channel Isolation and Power Regulation

The module incorporates robust galvanic insulation and dielectric shielding, maintaining 1500 V AC strength between external AC input terminals and the frame ground (FG) terminal to suppress power line transients. High noise immunity of 1500 Vp-p protects internal FA-M3 backplane rails from electromagnetic interference, while stable DC conversion delivers 5 V DC power at 6.0 A with a 20 ms allowable momentary power failure hold-up time.

Frequently Asked Questions

Q: Does the F3PU30 module support hot-swapping during active FA-M3 system execution?

A: No, the AC input power must be completely disconnected before removing or installing the power supply module to prevent electrical shock or backplane damage.

Q: How does the power supply handle input voltage fluctuations in industrial environments?

A: The unit accepts a wide supply voltage fluctuation range from 85 to 264 V AC at 50/60 Hz while maintaining regulated 5 V DC output to the backplane.

Field Installation Guidelines

  • Mount the power supply module securely into the designated power slot on the left side of the FA-M3 base unit, ensuring proper physical alignment.
  • Terminate incoming single-phase 100-240 V AC power lines and the frame ground (FG) wire onto the appropriate screw terminals, verifying secure connections.
  • Ensure adequate cabinet clearance and ventilation to maintain operating temperature limits and thermal dissipation.
