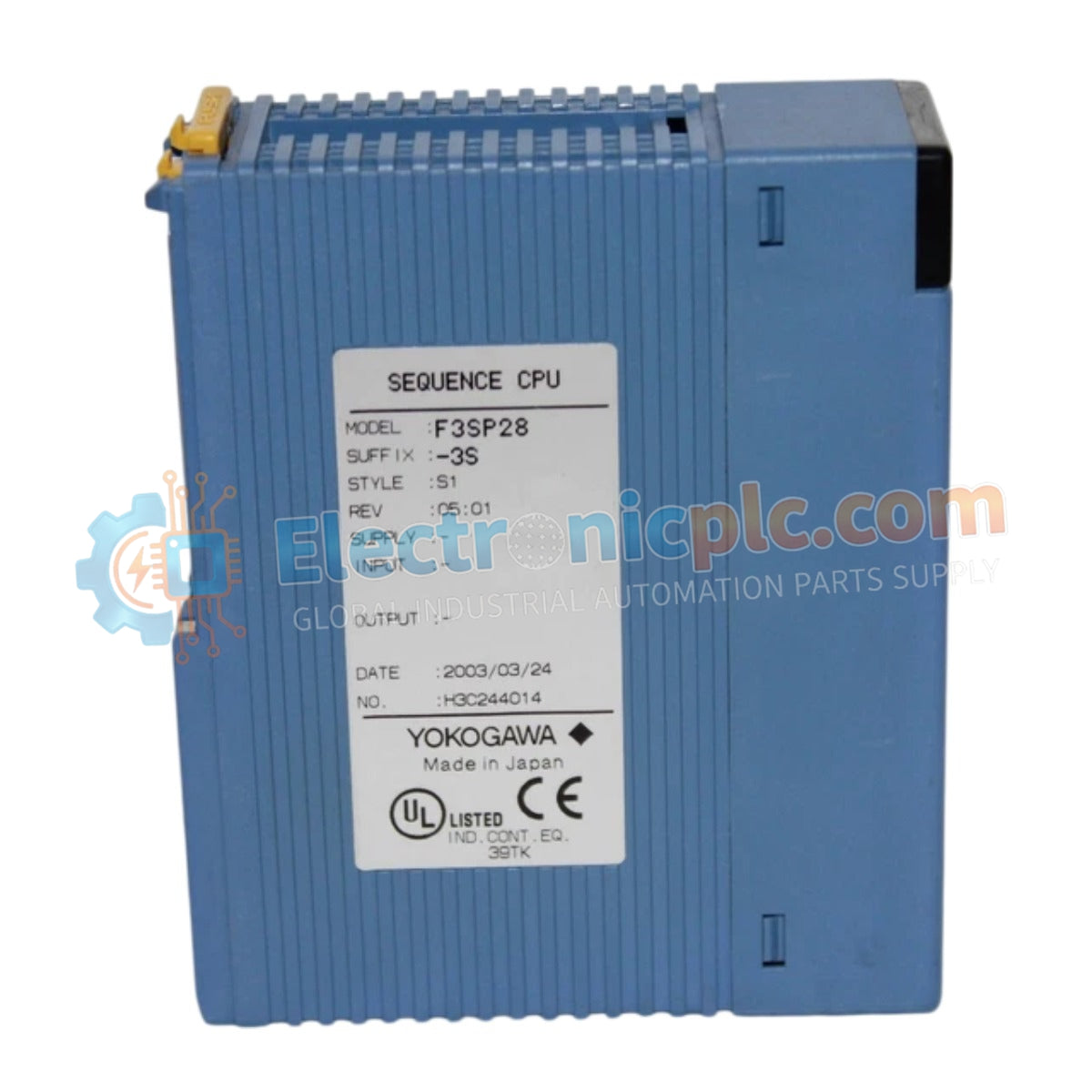

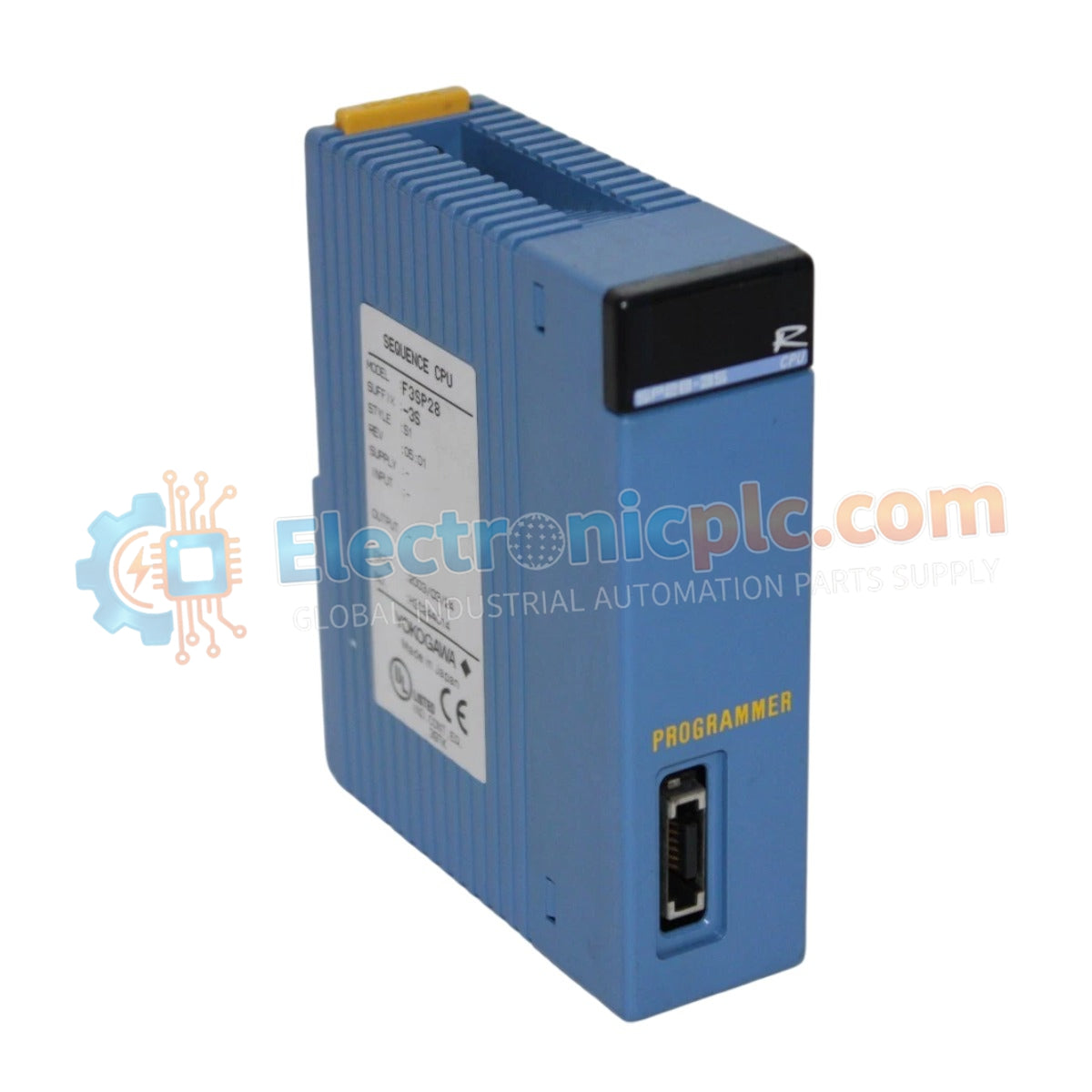

The YOKOGAWA F3SP28-3S is a high-performance central processing unit (CPU) designed for the FA-M3 (Range-free Multi-controller) series. It serves as the intelligent core for industrial automation, capable of executing complex sequence, motion, and process control logic with high speed and deterministic timing.

Hardware Specifications

Control Architecture and Data Processing

The F3SP28-3S utilizes a "range-free" multi-controller architecture, allowing it to handle diverse control tasks ranging from high-speed sequence logic to precision motion control. The module employs two primary I/O processing methods to ensure deterministic performance:

• Refresh Method: Automatically updates the I/O image memory at the start/end of the scan cycle, ideal for standard sequence control.
• Direct I/O Instruction: Provides immediate access to specific I/O registers for high-speed response, which is required for critical time-sensitive events.

Programming and Scalability

This module supports versatile programming environments, enabling engineers to utilize the most effective paradigm for their specific application:

• Ladder Logic: Best for traditional discrete sequence control and contact-based logic.
• Structured Text (ST): Ideal for complex mathematical calculations, data processing, and state machine transitions.
• Function Block Diagram (FBD): Used for modular design, making complex control strategies (like PID loops) easier to visualize and maintain.

Frequently Asked Questions

Q: Can the F3SP28-3S handle motion control tasks?

A: Yes. The FA-M3 architecture is designed to integrate sequence, motion, and process control within a single platform, allowing the CPU to manage multi-axis synchronization when paired with dedicated motion modules.

Q: Is the memory expandable?

A: The 8 MB capacity is integrated for standard operations. For applications requiring large-scale data logging or complex recipe management, it is recommended to utilize external memory modules or networked storage where supported by the specific system configuration.

Field Installation and Maintenance

1. Module Insertion: Ensure the FA-M3 base unit is powered down before installation. Align the CPU module with the base rack guide and press firmly until the locking mechanism clicks into place.
2. Programming Interface: Connect an engineering workstation via the designated communication port. Ensure the correct drivers are installed to maintain reliable communication during program upload/download.
3. Thermal Management: Given the -20 to 60°C operating range, ensure the control cabinet is properly ventilated. Even in lower temperature environments, preventing moisture buildup is critical for long-term module reliability.
4. Backup Battery: Periodically check and replace the internal backup battery used to retain the program and data during power-off periods to avoid unexpected loss of configuration.
