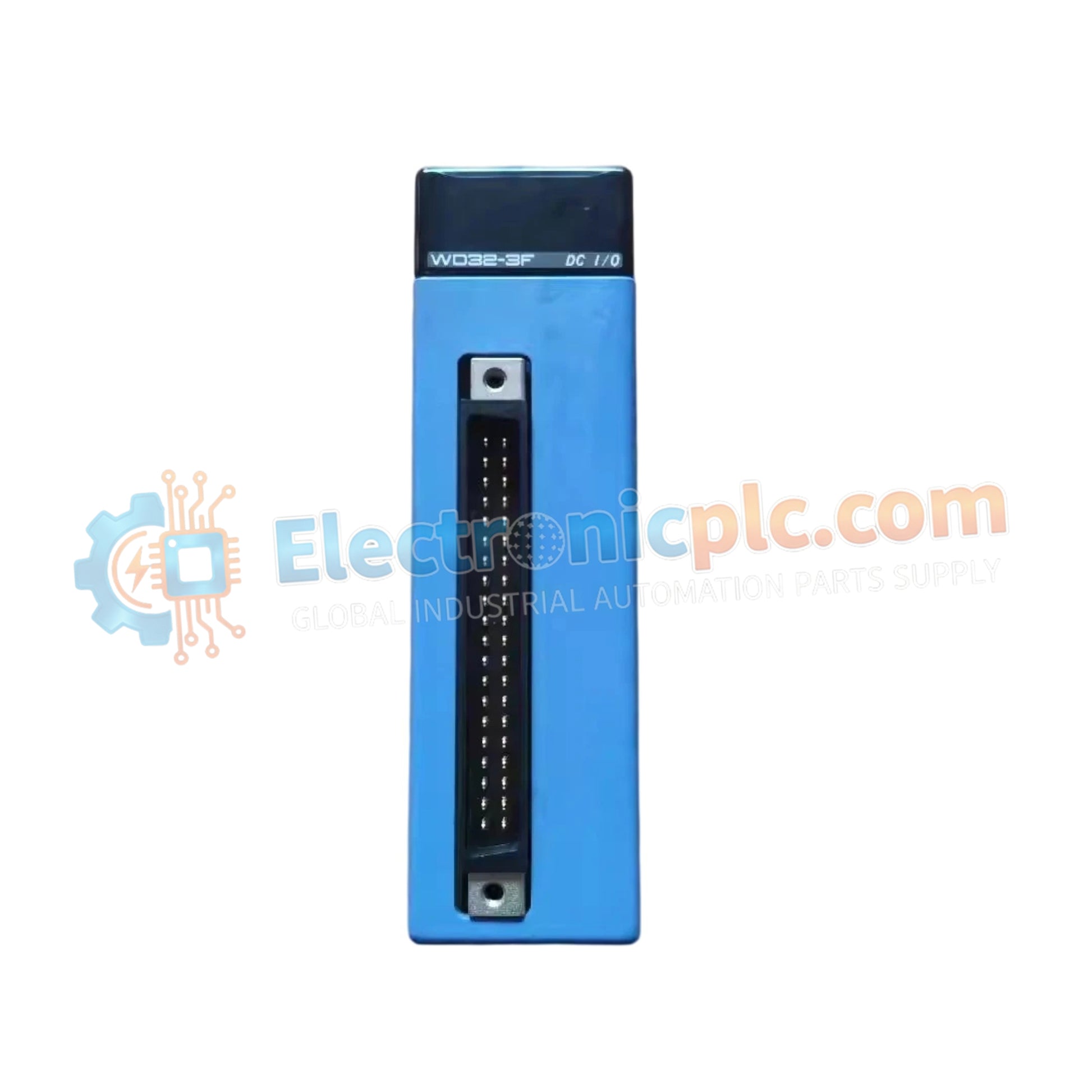

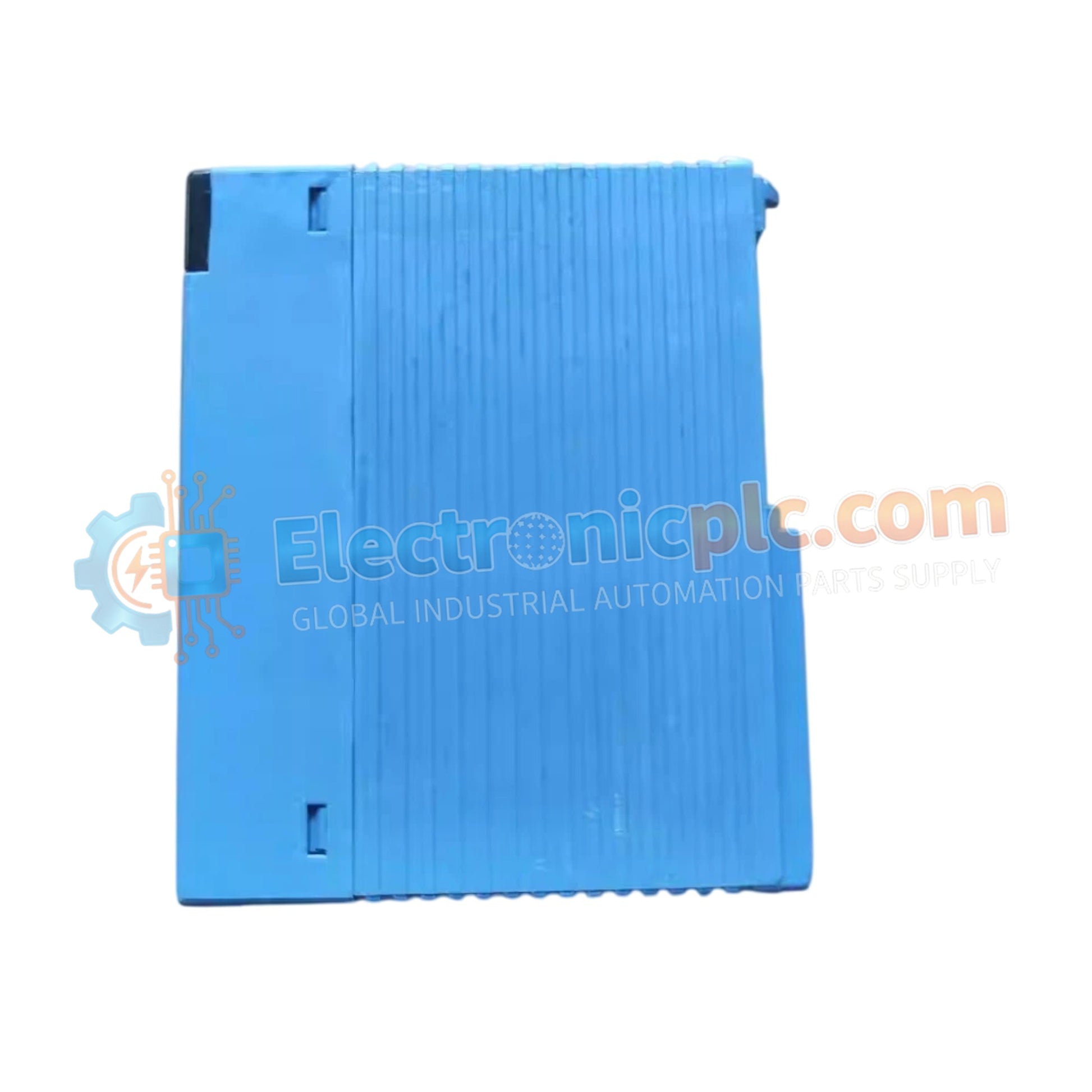

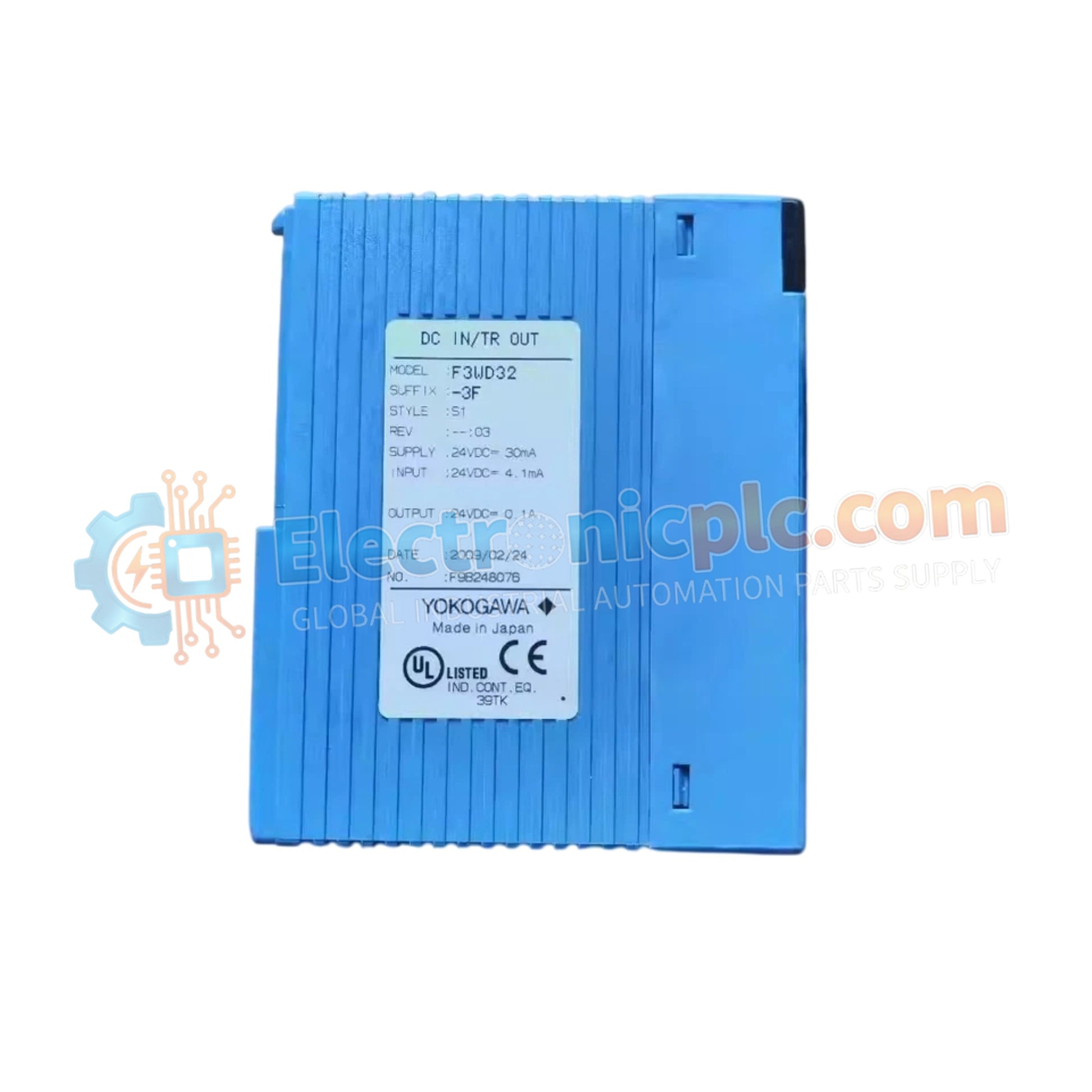

The YOKOGAWA F3WD32-3F, also cataloged as the F3WD32 I/O Module, operates as a dedicated hardware component for discrete signal acquisition within FA-M3 PLC platforms.
| Parameter | Specification |
|---|---|
| Model | F3WD32-3F |
| Brand | YOKOGAWA |
| Origin | Japan |
| Weight | 0.14 kg |
| Dimensions | 28.9 mm x 100 mm x 83.2 mm |
| Operating Temp | 0 deg C to 55 deg C |
| Power Consumption | 0.25 A (5 V DC) |
| I/O Type | Digital Input |
| Channel Count | 32 |
| Rated Input | 24 V DC |
The F3WD32-3F integrates directly into the FA-M3 backplane, utilizing high-speed bus communication to map 32 points of discrete input data to the CPU memory space. The module architecture is engineered for efficient I/O density scaling, enabling the controller to manage high-channel-count configurations while maintaining deterministic scan-time performance. Firmware flash compatibility is supported, allowing for module logic updates to remain consistent with system-wide PLC firmware revisions and network communication requirements.
Q: Does the module support hot-swapping into an active FA-M3 base unit?
A: No, the module does not support hot-swapping. The power to the base unit must be disconnected prior to the insertion or removal of the module to prevent electrical damage to the backplane pins or logic circuitry.
Q: How is the input logic state verified during system commissioning?
A: The module front panel features LED indicators that map directly to the status of each input channel. Ensure that the 24 V DC field voltage is applied correctly; the corresponding LED will illuminate when the input circuit is energized.
