Yokogawa F3YD08-6A Transistor Output Module

Yokogawa F3YD08-6A Transistor Output Module

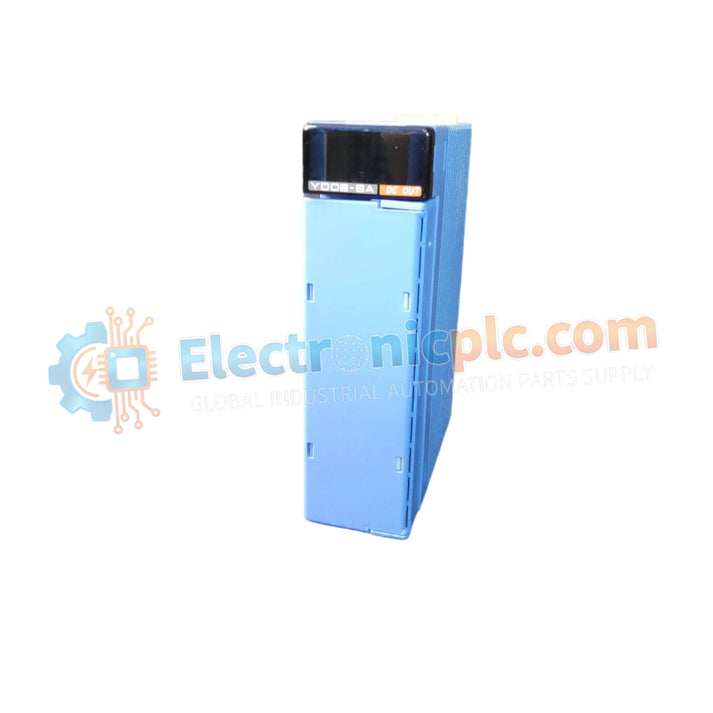

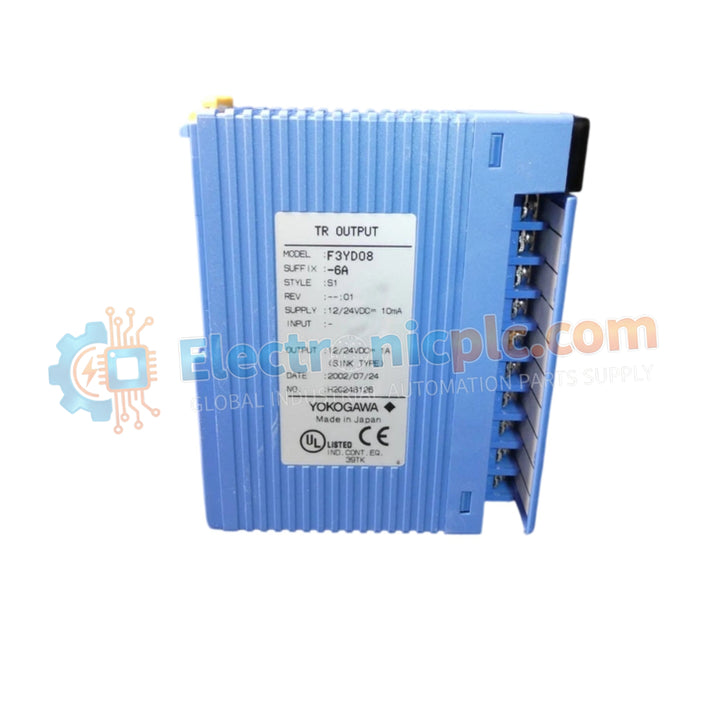

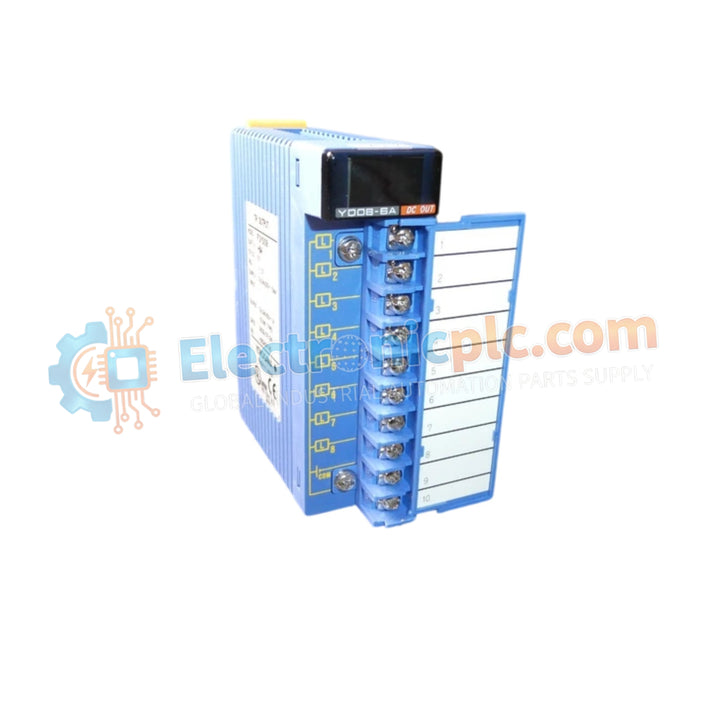

Configured for high-speed discrete signal execution in FA-M3 automation platforms, the Yokogawa F3YD08-6A (F3YD08-6A Transistor Output Module) provides direct physical electrical switching for industrial load control.

Hardware Specifications

...
20 people are viewing this right now

Availability: In stock

SKU: F3YD08-6A
Vendor: Yokogawa
Category: Transistor Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Configured for high-speed discrete signal execution in FA-M3 automation platforms, the Yokogawa F3YD08-6A (F3YD08-6A Transistor Output Module) provides direct physical electrical switching for industrial load control.

Hardware Specifications

Parameter Specification
Model F3YD08-6A
Brand Yokogawa
Origin Japan
Weight 0.3 kg
Dimensions 2.5 cm x 10.2 cm x 8.4 cm
Operating Temp 0 to 55 deg C
Power Consumption 150 mA (5 VDC internal)
Output Type Transistor (Sink)
Number of Channels 8
Rated Load Voltage 12 to 24 VDC

Process Control Connectivity

The F3YD08-6A incorporates internal channel-to-channel isolation to prevent transient surge propagation between discrete output loops. This architectural design ensures that individual output failures do not affect the common potential of the FA-M3 backplane. The module utilizes high-speed transistor switching optimized for inductive load handling, provided appropriate flyback diode suppression is integrated into the external field wiring. The internal logic circuitry maintains strict synchronization with the FA-M3 scan cycle, ensuring deterministic output state updates.

Frequently Asked Questions

Q: Can the F3YD08-6A be hot-swapped while the FA-M3 base unit is powered?

A: No. The FA-M3 backplane architecture does not support live insertion or removal of output modules. Power must be isolated from the base unit prior to module extraction to prevent potential backplane bus damage or transient output states.

Q: What is the maximum switching frequency for this module?

A: The module is designed for standard discrete control applications. While transistor outputs offer rapid response times compared to relay modules, users must refer to the load-specific current derating curves to ensure internal thermal limits are not exceeded during high-frequency cycles.

Field Installation Guidelines

  1. Ensure the FA-M3 rack power supply is disconnected before mounting the module.
  2. Align the module with the backplane slot guide rails and engage the top and bottom latching mechanisms.
  3. Use shielded twisted-pair cabling for all output field wiring to mitigate electromagnetic interference.
  4. Ensure the common DC negative line is securely bonded to the control panel earth bar.
  5. Verify that external load current does not exceed the per-channel specification; excessive load may trigger internal over-current protection.
