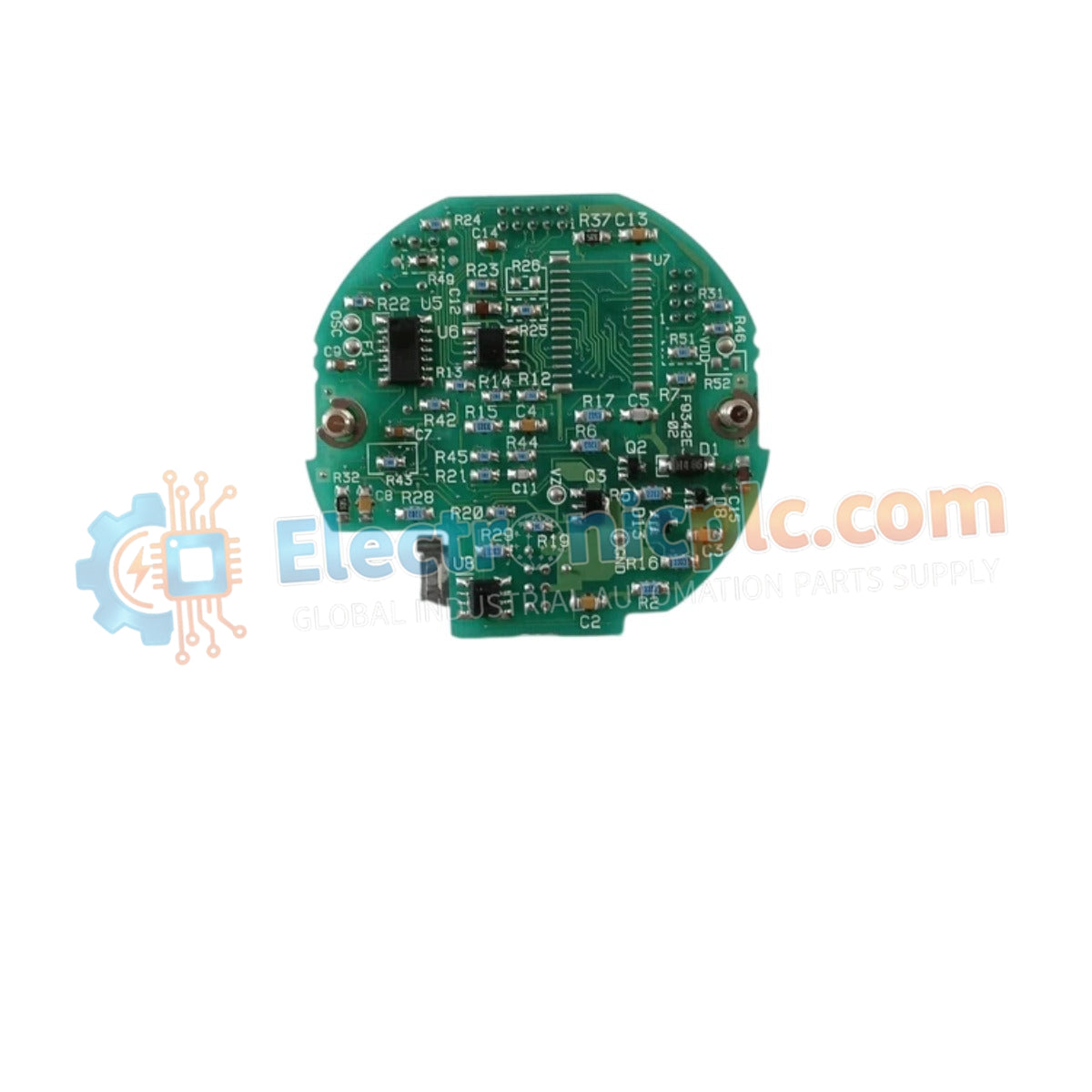

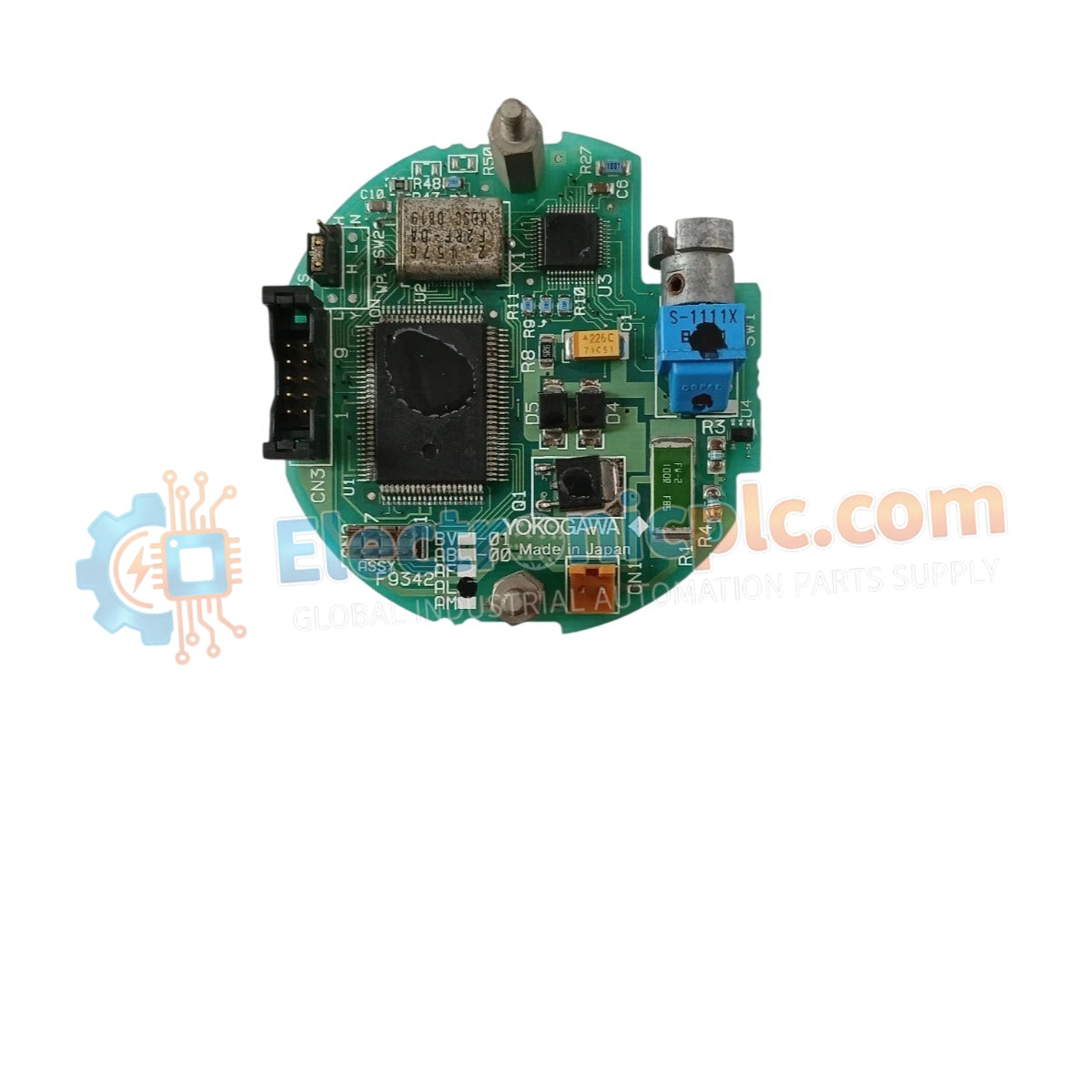

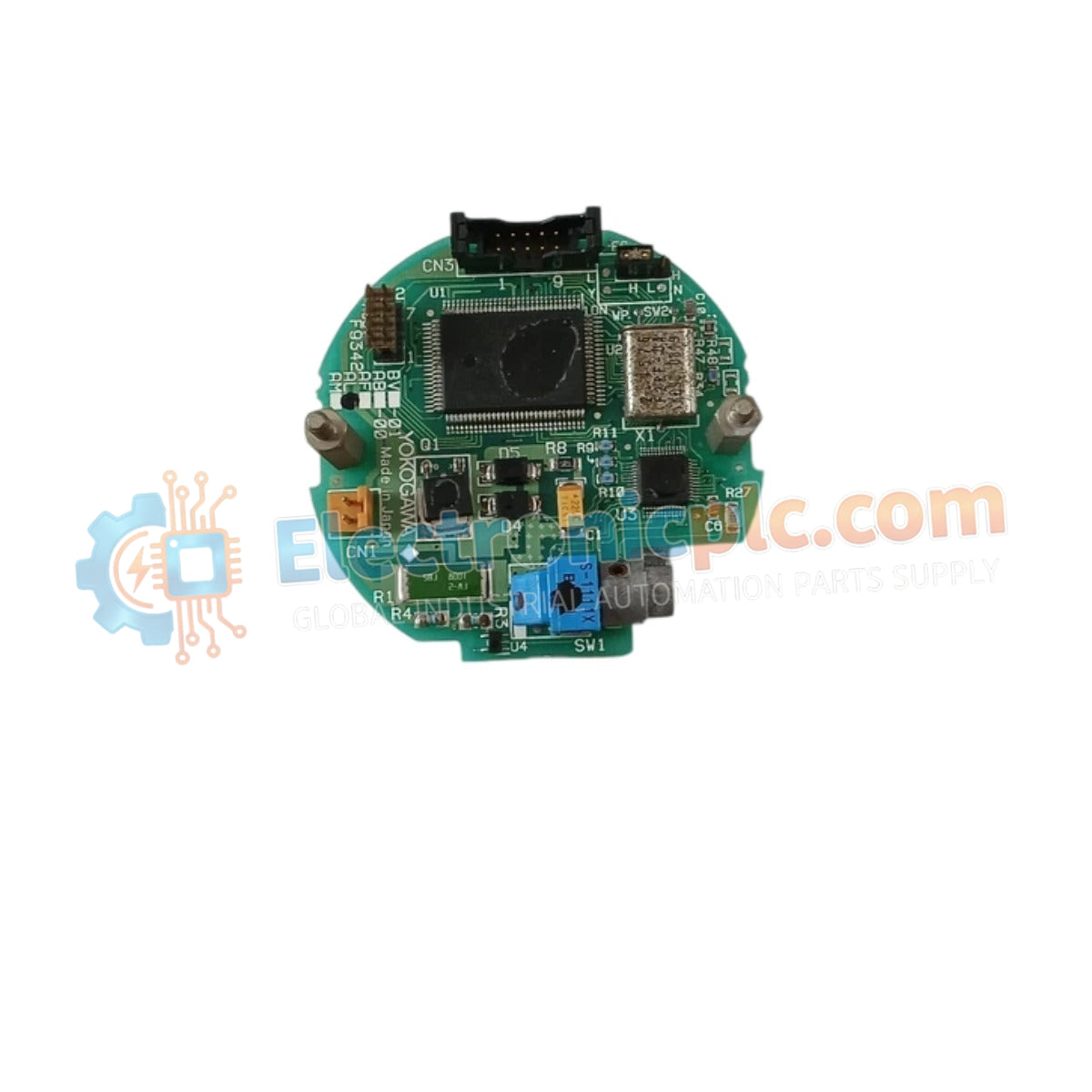

Configured for high-speed network integration in industrial automation systems, the Yokogawa F9342AL (F9342AL Host Adaptor) provides direct physical/electrical execution. This hardware component serves as the primary F9342AL interface utilized to execute FOUNDATION Fieldbus protocol communication and data exchange between field devices and host DCS/PLC controllers.

Hardware Specifications

Process Control and Protocol Connectivity

The F9342AL facilitates seamless integration of FOUNDATION Fieldbus segments into the central control hierarchy. By supporting low-latency data transfer (less than 100 microseconds), the host adaptor maintains deterministic communication with transmitters, valve positioners, and I/O modules. The internal architecture manages FOUNDATION Fieldbus HART loop protocol requirements, ensuring that diagnostic data and process variables are accurately mapped to the host system registers. The adaptor utilizes galvanically isolated circuitry to maintain loop integrity and prevent common-mode noise from affecting network stability.

Frequently Asked Questions

Q: Can the F9342AL be mounted in high-vibration areas?

A: Yes, the unit is designed for DIN rail or panel mounting. Ensure that all fasteners are tightened according to the cabinet standards to prevent loosening due to operational vibration, which could cause intermittent connection issues.

Q: Is external power filtering required for the 18-30 VDC supply?

A: While the module features internal voltage regulation, use a high-quality DC power supply with adequate filtering to prevent transients on the 24 VDC bus from inducing errors in the high-speed fieldbus communication data packets.

Field Installation Guidelines

• Mounting: Secure the adaptor to a DIN rail or flat panel surface within the control enclosure. Maintain a minimum clearance of 50 mm around the ventilation slots to ensure passive heat dissipation.
• Shielding: Terminate FOUNDATION Fieldbus cable shields to the system common ground point. Proper shielding is required to achieve the 2.4 Mbps data transfer rate without corruption from electromagnetic interference (EMI).
• Connection: Verify that all cable connections are seated firmly within the terminal interfaces. Use appropriate ferrules for stranded wires to ensure a gas-tight electrical contact and prevent oxidation over time.
• Grounding: Connect the F9342AL chassis ground terminal directly to the cabinet main earth bar using a low-impedance copper conductor to provide an effective path for fault current and surge suppression.
