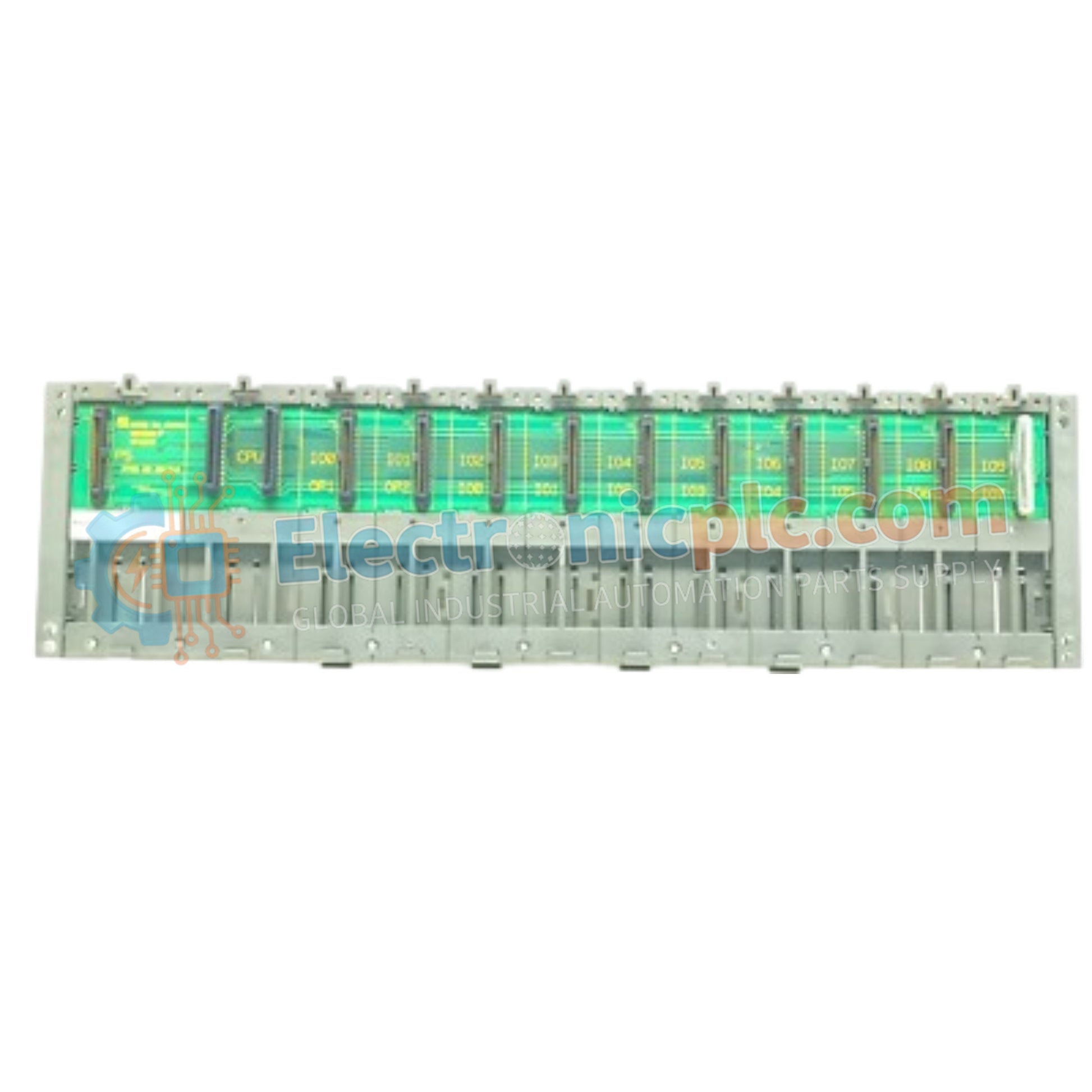

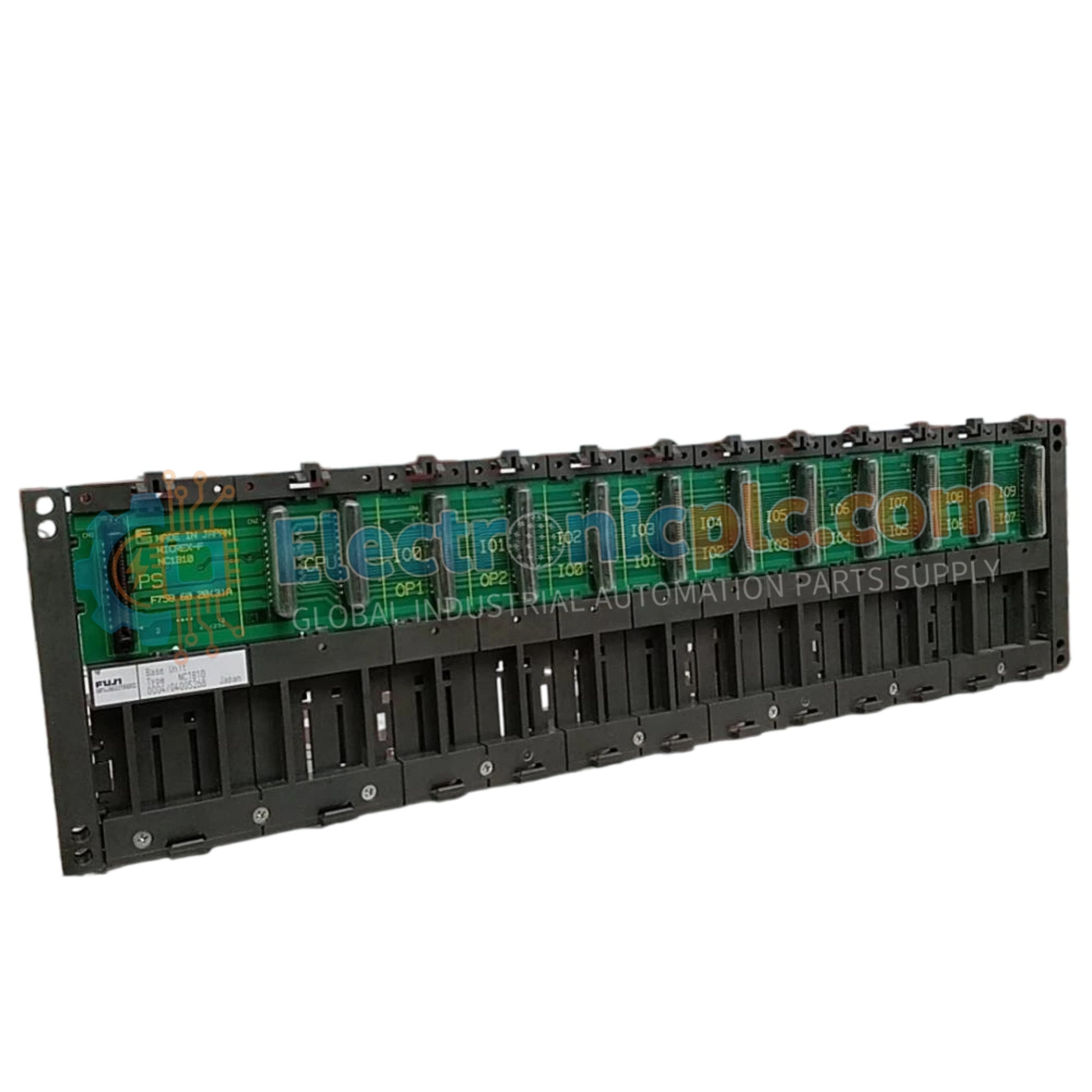

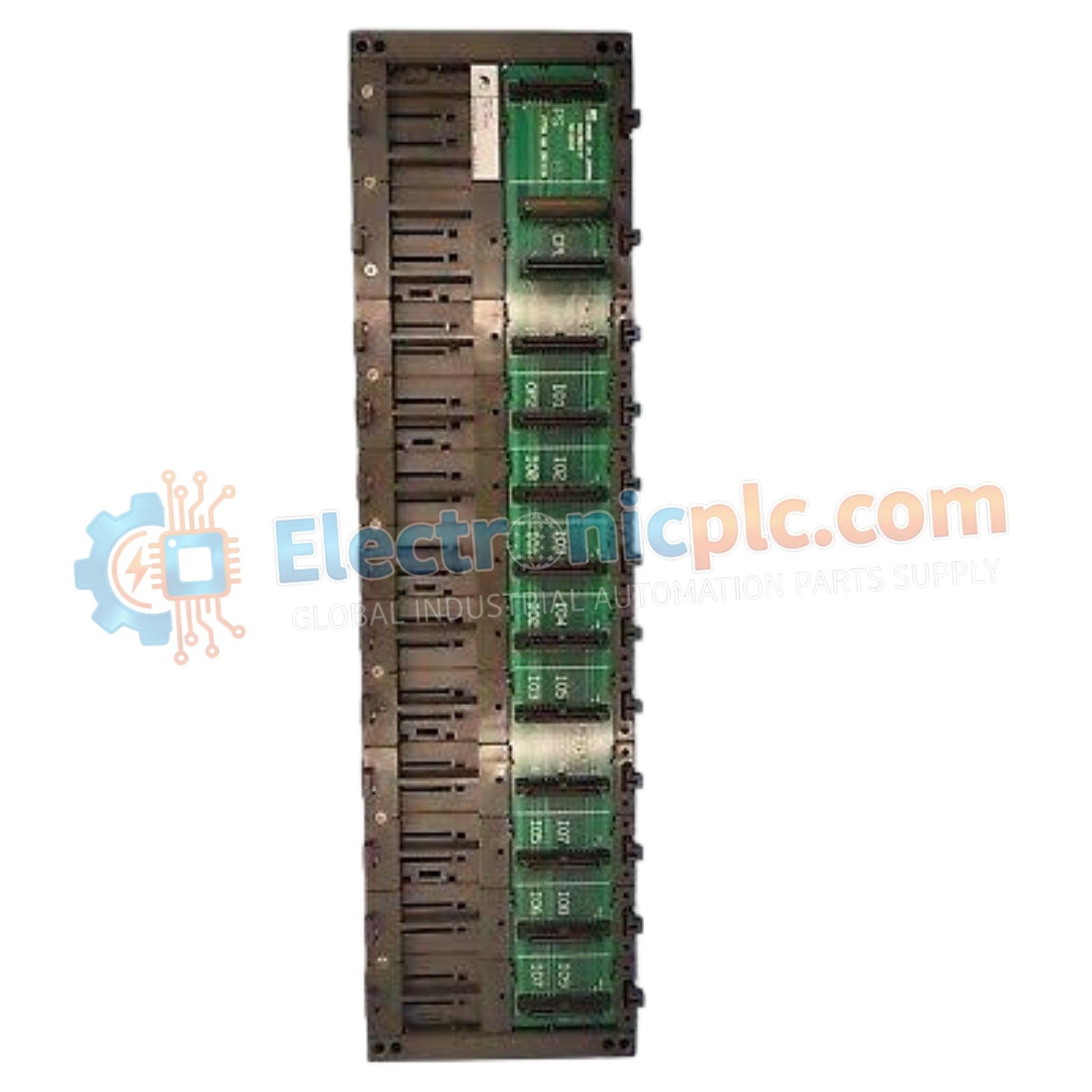

Configured for modular signal routing and power distribution within control architectures, the Yokogawa NC1B10 (NC1B10 PLC Backplane) provides direct mechanical and electrical execution for up to 10 PLC module segments.

Hardware Specifications

Backplane Bus Communication and I/O Scaling

The NC1B10 architecture facilitates deterministic communication between the CPU and attached I/O modules, ensuring stable backplane bus communication velocity for high-density industrial control applications. The unit is engineered to support seamless firmware flash compatibility across connected modules, maintaining signal integrity even under high-load conditions. The design includes dedicated power traces for each slot, allowing for efficient I/O density scaling while minimizing crosstalk between high-speed logic signals and analog field loop interfaces. The backplane serves as the central physical foundation for Yokogawa FA-M3 and STARDOM controller nodes, providing necessary shielding and ground path continuity.

Frequently Asked Questions

Q: Does the backplane require special insulation when panel mounting?

A: The backplane is designed for standard industrial installation; however, if the mounting panel is non-conductive or painted, ensure a dedicated grounding strap is connected to the backplane chassis terminal to maintain system-wide reference potential.

Q: Can modules be inserted or removed while the backplane is energized?

A: No. While the modules may support hot-swapping features depending on their specific firmware, the backplane itself should not be subjected to insertion or removal cycles under power to prevent potential damage to the pin connectors or short-circuiting of the backplane bus.

Field Installation Guidelines

1. Ensure the mounting surface (DIN-rail or panel) is level and rigid to prevent structural deformation of the backplane, which could cause connector misalignment.
2. Verify that all power leads connected to the backplane are de-energized; terminate the primary 24 V DC power supply to the designated terminals with correct polarity.
3. Install the 10-slot unit ensuring adequate clearance for airflow; maintain a minimum of 50 mm between the backplane and cabinet walls to facilitate natural convection.
4. Seat the modules firmly into the slots, starting from the leftmost slot (typically the CPU position) to ensure proper bus mastership initialization upon power-up.
5. Secure all module retaining screws to the backplane frame to achieve mechanical stability and ensure the chassis ground path is fully established across all modules.
