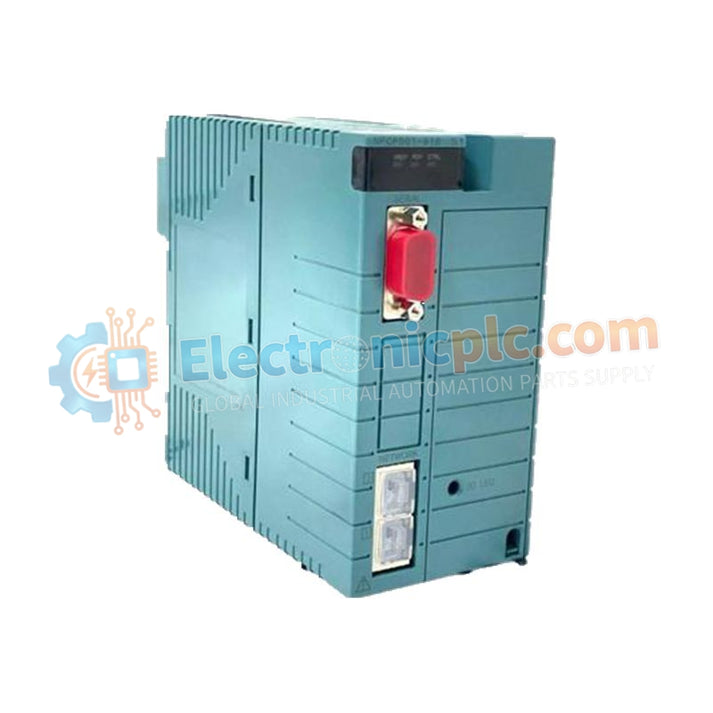

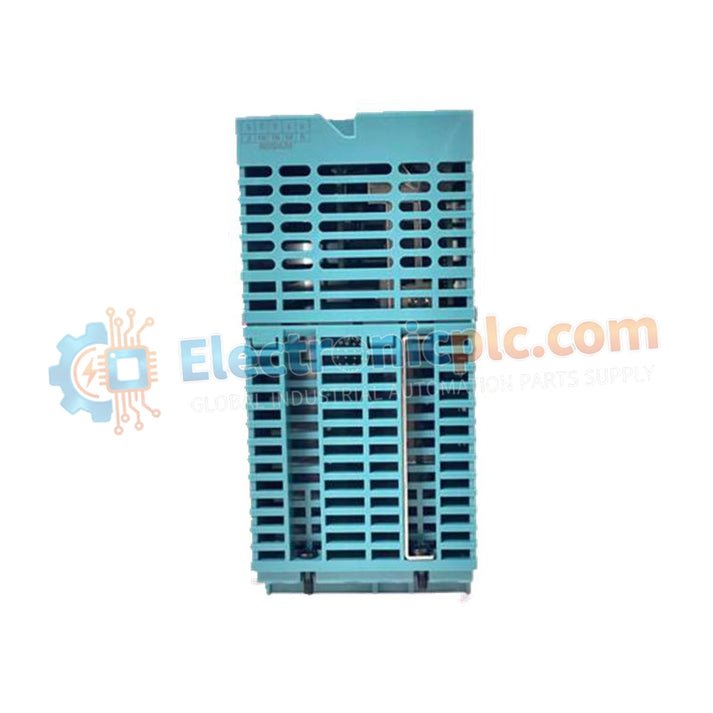

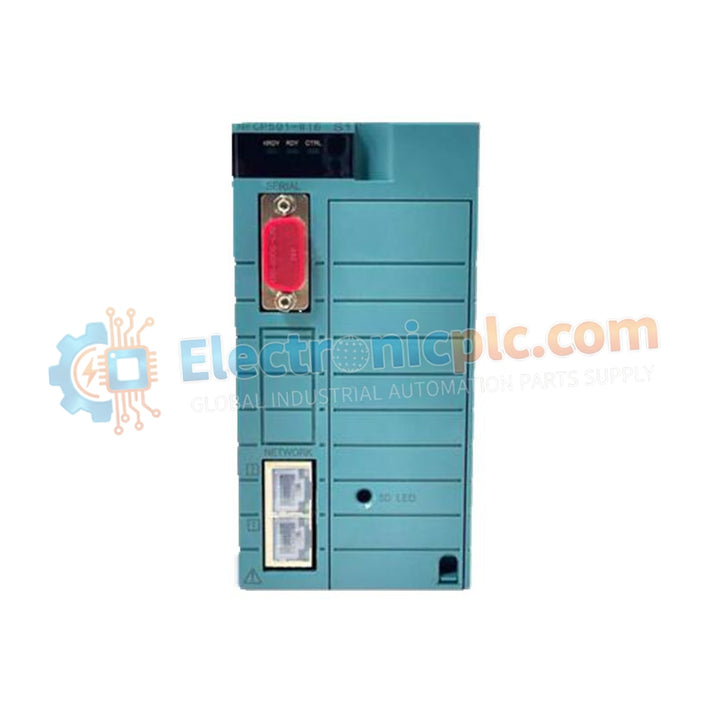

Yokogawa NFCP501-W05 S1 CPU Processor Module

Yokogawa NFCP501-W05 S1 CPU Processor Module

Hardware Architecture Overview

The NFCP501-W05 S1 is a high-performance CPU module serving as the central intelligence of the Yokogawa STARDOM FCN-500 autonomous controller platform. It is engineered to execute complex logic sequences,...

20 people are viewing this right now

Availability: Low stock: 99 left

SKU: NFCP501-W05 S1
Vendor: Yokogawa
Category: CPU Processor Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Hardware Architecture Overview

The NFCP501-W05 S1 is a high-performance CPU module serving as the central intelligence of the Yokogawa STARDOM FCN-500 autonomous controller platform. It is engineered to execute complex logic sequences, PID control loops, and data logging tasks with deterministic timing.

The NFCP501 series is optimized for high-availability environments and supports dual-redundant configurations. In redundant architecture, a secondary CPU module can assume control within milliseconds without interrupting the process (bumpless transfer).

  • W05 Suffix: Indicates specific firmware and feature configuration.

  • S1 Revision: Current-generation hardware revision for FCN backplanes with enhanced reliability.

Detailed Engineering Specifications

Parameter Specification
Model NFCP501-W05 S1
Processor Architecture High-speed industrial RISC processor
Main Memory 32 MB
Program Area 16 MB (firmware dependent)
Execution Speed 0.1 ms (basic instructions)
Redundancy Support Dual-redundant capable (requires two modules)
Ethernet Interfaces 2 × 100BASE-TX (Vnet/IP, Modbus TCP)
Serial Interface 1 × RS-232C (maintenance/integration)
Dimensions (W×H×D) 2.2 cm × 12.4 cm × 12.6 cm
Weight 0.3 kg

Strategic Application Context

Autonomous Process Control

  • Oil & gas wellhead controllers

  • Separator control systems

  • Remote production skids

Hybrid DCS Integration

  • High-speed logic processing with seamless integration to Yokogawa CENTUM VP via Vnet/IP

Critical Infrastructure

  • Water treatment facilities

  • Power distribution systems

  • Installations requiring high MTBF compliance

Technical FAQ

What is the significance of the "S1" revision?
The S1 revision reflects hardware improvements such as better thermal management and extended lifecycle components. It remains backward compatible with FCN-500 backplanes, subject to firmware compatibility.

Does the NFCP501-W05 S1 require a license?
Yes. Functional capacity (I/O count, protocol drivers, advanced features) is enabled through STARDOM Resource Configurator software and electronic licensing.

How is redundancy implemented?
The primary CPU synchronizes memory with the standby CPU via the backplane bus. Upon fault detection, the standby module assumes control within one scan cycle, ensuring uninterrupted process operation.
