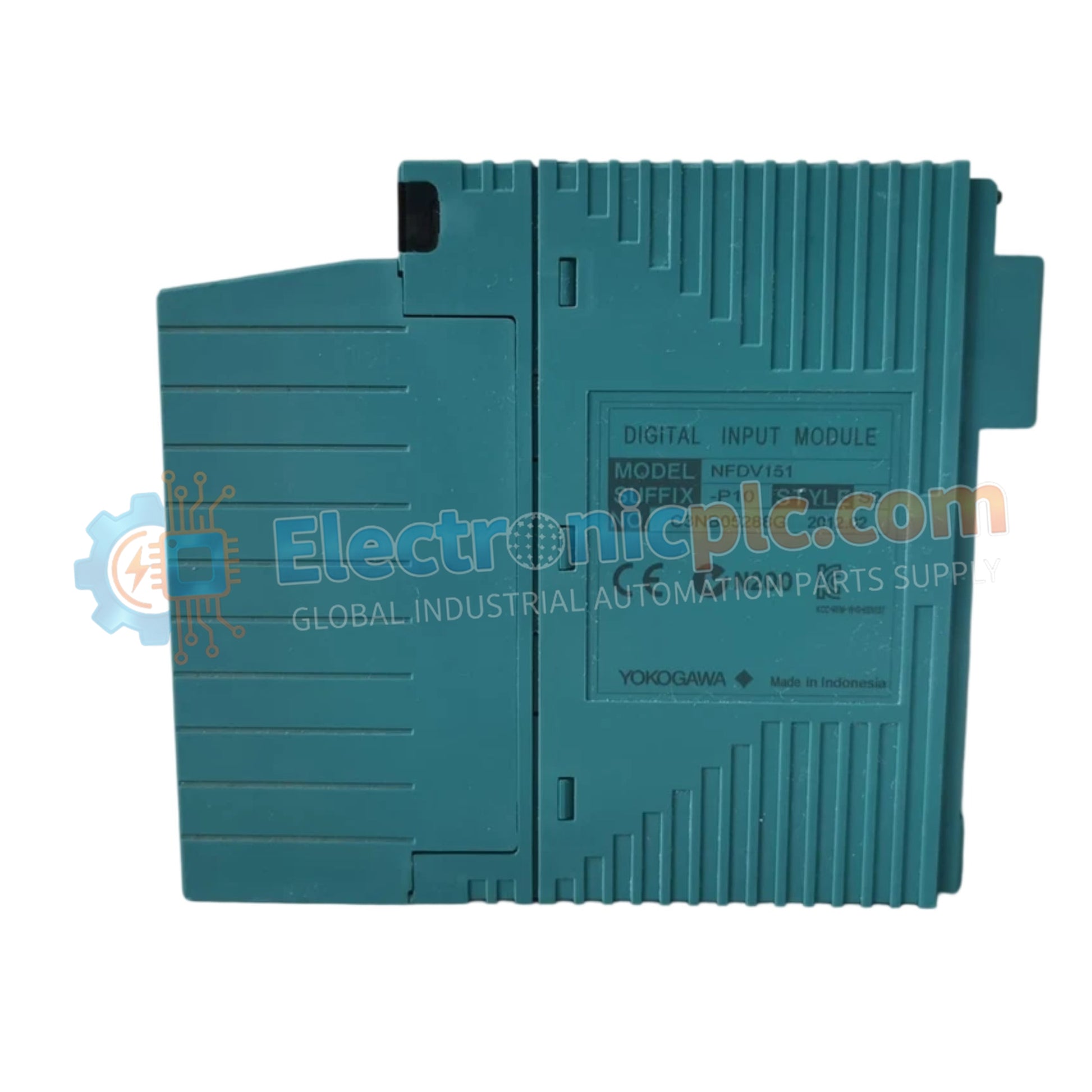

Configured for high-density signal acquisition within STARDOM and FCN autonomous controller platforms, the YOKOGAWA NFDV151 (NFDV151) Digital Input Module provides direct physical/electrical execution of 32-channel discrete signal monitoring.

Hardware Specifications

Industrial Control & Process Connectivity

The NFDV151 is engineered for robust industrial signal acquisition, supporting both sink and source input configurations to facilitate flexible integration with diverse field-side instrumentation. The module incorporates integrated surge protection to safeguard sensitive semiconductor inputs from electrical transients common in industrial environments. With a 2 kV AC isolation rating between the signal and system logic, it ensures reliable operation and signal integrity, effectively mitigating the risk of ground loops and common-mode noise propagation throughout the FCN or FCJ control node.

Frequently Asked Questions (FAQ)

Q: Can this module be configured for both sink and source inputs simultaneously?

A: The NFDV151 supports both sink and source input types; however, ensure that the common wiring configuration is strictly followed according to the system technical manual to maintain proper operation and isolation between channel banks.

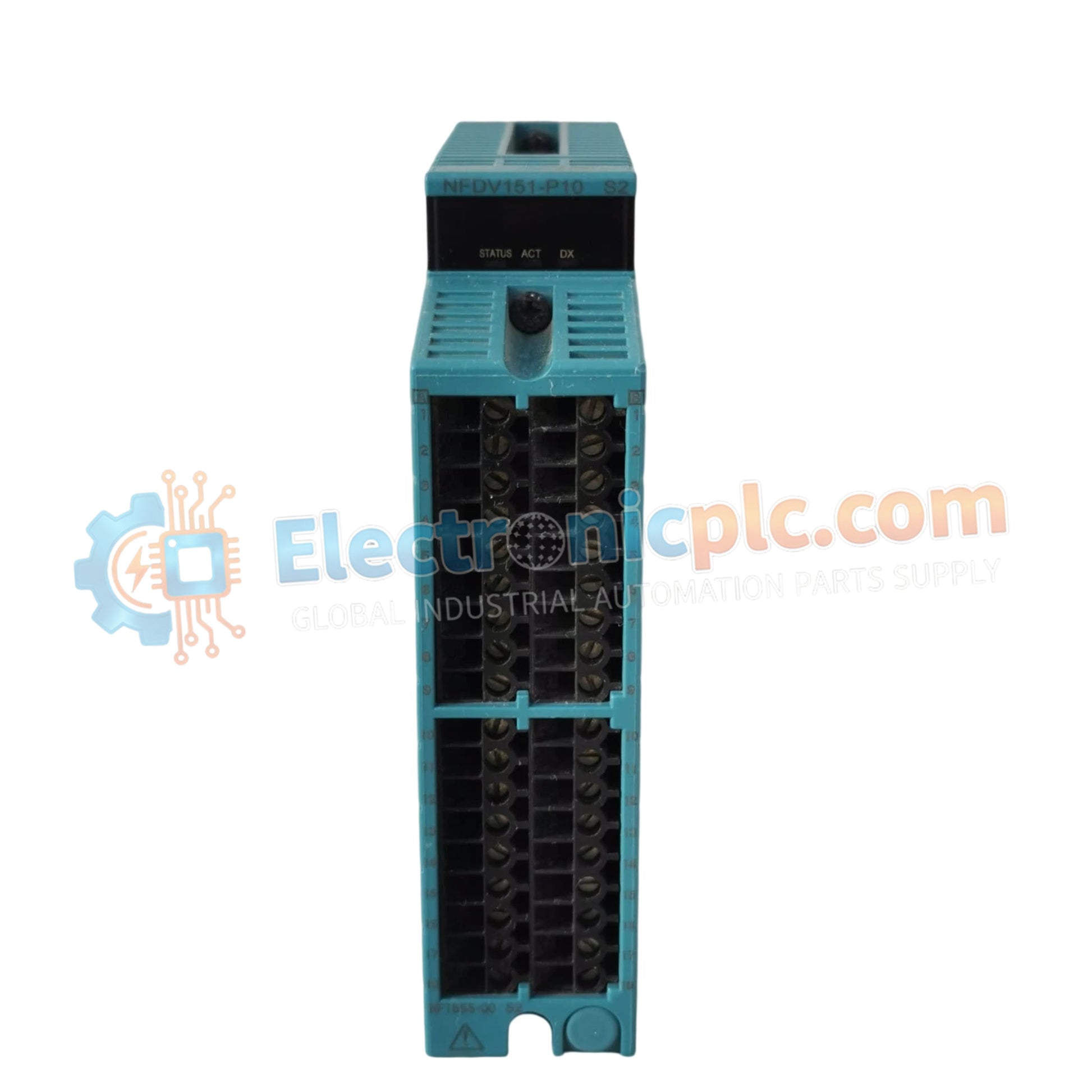

Q: How should I handle the wiring for the 32 channels if using the pressure clamp terminal block?

A: Use conductors sized between 0.5 mm² and 2 mm² (AWG 20–14). Strip the insulation to a length of 11 mm to ensure a secure, gas-tight electrical connection. Ensure cables are routed away from high-voltage AC paths to prevent induced interference.

Field Installation Guidelines

• Mounting: Install the NFDV151 into the FCN/FCJ base unit. Ensure the module is seated firmly to establish a low-impedance connection with the backplane communication and power rails.
• Isolation: The module provides isolation between channel commons (every 16 channels). Verify that field-side common voltages do not exceed the specified isolation ratings to maintain safety and measurement accuracy.
• Pushbutton Functionality: When utilizing the pushbutton edge detection features, ensure the input frequency does not exceed the 25 Hz limit to prevent missed input states or logic timing errors.
• Environmental Handling: Maintain operating temperatures between 0 deg C and +40 deg C and ensure that the cabinet humidity remains between 5% and 95% RH. Avoid environments with excessive corrosive gases or conductive dust that could bridge the module terminals.
