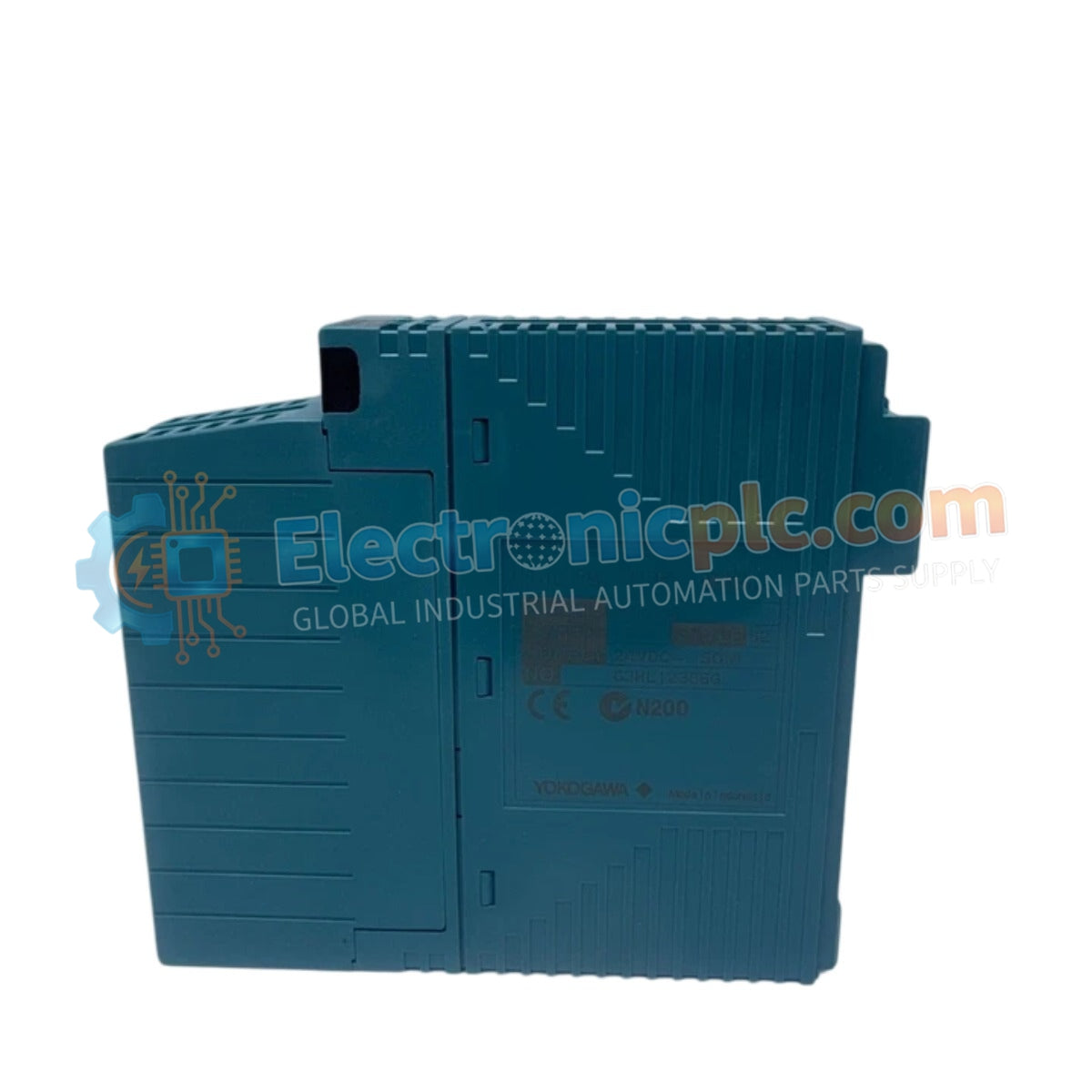

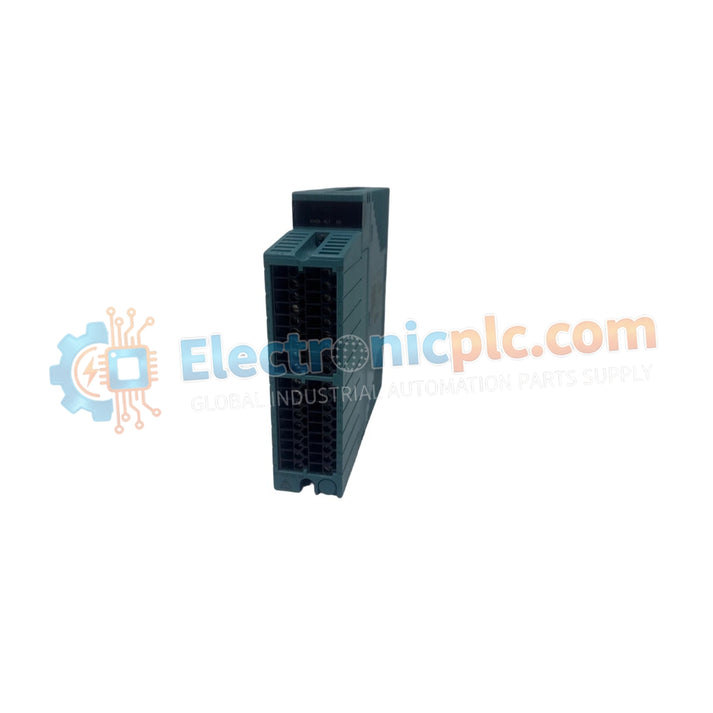

Yokogawa NFDV551-P10/CCC01 Digital Output Module

Yokogawa NFDV551-P10/CCC01 Digital Output Module

Configured for high-density discrete signal control in STARDOM autonomous controller platforms, the Yokogawa NFDV551-P10/CCC01 (NFDV551 Digital Output Module) provides direct physical/electrical execution of 32-channel sink-type isolated transistor output switching.

Suffix...

16 people are viewing this right now

Availability: In stock

SKU: NFDV551-P10/CCC01
Vendor: Yokogawa
Category: Digital Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Configured for high-density discrete signal control in STARDOM autonomous controller platforms, the Yokogawa NFDV551-P10/CCC01 (NFDV551 Digital Output Module) provides direct physical/electrical execution of 32-channel sink-type isolated transistor output switching.

Suffix Breakdown & Model Matrix

Suffix Specification
NFDV551-P10 Base model with 32-channel digital output
/CCC01 Integrated MIL connector cover for cable protection

Hardware Specifications

Parameter Specification
Model NFDV551-P10/CCC01
Brand Yokogawa
Origin Japan
Weight 0.3kg
Dimensions Standard STARDOM module footprint
Operating Temp Not specified
Power Consumption 700 mA @ 5 VDC
Output Channels 32 (sink-type transistor)
Max Load Current 100 mA per channel @ 26.4 VDC
Output Response Time <= 3 ms

DCS Connectivity and Channel Isolation

The NFDV551-P10/CCC01 facilitates seamless integration with FCN, FCN-500, FCN-100, FCN-RTU, and FCJ autonomous controllers. The module employs channel-to-system isolation rated at 2000 VAC for 1 minute and inter-common isolation rated at 500 VAC for 1 minute. To ensure consistent signal integrity, the module supports configurable fallback modes (HOLD, OFF, or NO), allowing for defined safety states upon controller fault or loss of backplane communication. When driving inductive loads such as solenoids or relay coils, users must verify that surge suppression devices are installed to protect the transistor output stages from flyback voltage spikes.

Frequently Asked Questions

Q: Can the module be configured for hot-swapping within the controller rack?

A: Operation and maintenance must adhere to the specific STARDOM rack power protocols. Always de-energize the local rack segment before module extraction to prevent backplane bus transients or pin-level arcing.

Q: How is the load voltage range constrained?

A: The operating voltage is strictly limited to 20.4 VDC to 26.4 VDC. Supplying voltage outside this range can compromise the switching reliability of the transistor outputs or lead to thermal degradation of the internal driver circuits.

Field Installation Guidelines

  1. Ensure the /CCC01 MIL connector cover is properly installed to prevent mechanical stress on the signal cables and protect the pin interface from dust.
  2. Verify that the total load current per common block does not exceed the aggregate limit to maintain module thermal equilibrium.
  3. Use shielded cabling for all field output signals and terminate shields to the system ground bus at the cabinet entry point to minimize radiated noise.
  4. Confirm that the load is connected to the sink-type circuit in accordance with the system wiring diagram to prevent reverse-polarity damage to the output transistors.
  5. Inspect the backplane connectors for proper seating before applying power to the controller rack.
