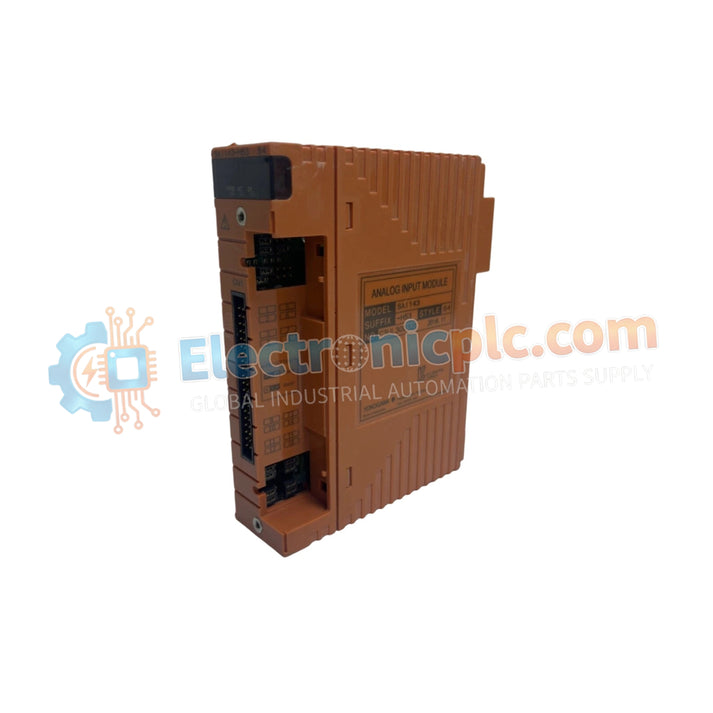

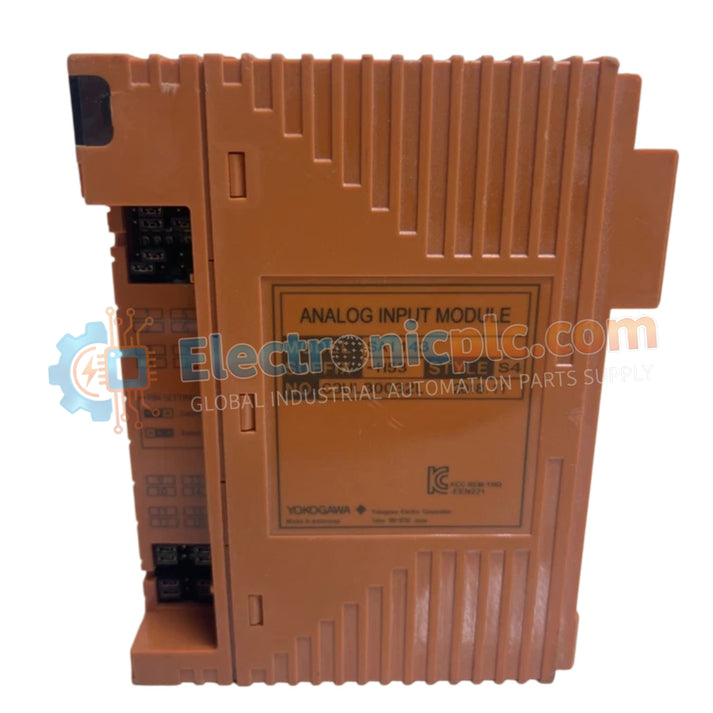

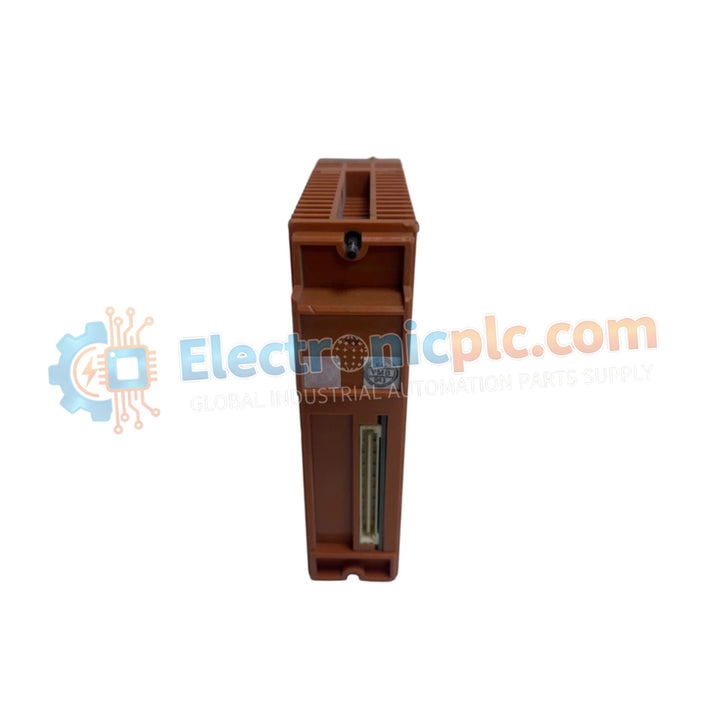

Configured for high-precision signal processing in distributed control platforms, the Yokogawa SAI143-H53/STA4D-00 (SAI143-H53/STA4D-00 Analog Input Module) provides direct physical/electrical execution.
| Parameter | Specification |
|---|
| Parameter | Specification |
|---|---|
| Model | SAI143-H53/STA4D-00 |
| Brand | Yokogawa |
| Origin | japan |
| Weight | 0.39 kg |
| Dimensions | Standard Rack Module |
| Operating Temp | Standard Industrial Rating |
| Power Consumption | 5 V system 320 mA, 24 V system 550 mA |
| Input Range | 4-20 mA (permissible 0-25 mA) |
| Accuracy | +/-16 uA |
| Withstand Voltage | 1.5 kV AC for 1 min |
The hardware configuration maintains strict electrical isolation across input loops to eliminate ground loop interference and suppress common-mode transient voltage spikes during high-resolution signal conversion. Integration with 4-20 mA HART loop protocol parameters ensures continuous diagnostic feedback, transmitter verification, and transparent digital communication overlay without interrupting real-time analog data acquisition across configured 2-wire and 4-wire channel settings.
Q: What are the restrictions regarding hot-swapping the SAI143-H53/STA4D-00 module?
A: Hot-swapping is restricted unless explicit node redundancy configuration or controller-level maintenance mode activation is engaged to prevent backplane communication errors.
Q: How is transmitter loop power supplied across the input channels?
A: Loop power is provided via internal isolated transmitter power supply circuits ranging from 16.15 V at 20 mA to 26.4 V at 0 mA depending on operational load conditions.
Mount the unit directly into the designated slot of the node base, ensuring physical alignment with backplane connectors before engaging securing screws. Route input signal wiring away from high-voltage power conduits and use shielded twisted-pair cables to preserve measurement accuracy. Terminate cable shielding and ground drain wires securely to the designated cabinet earth grounding bar.
