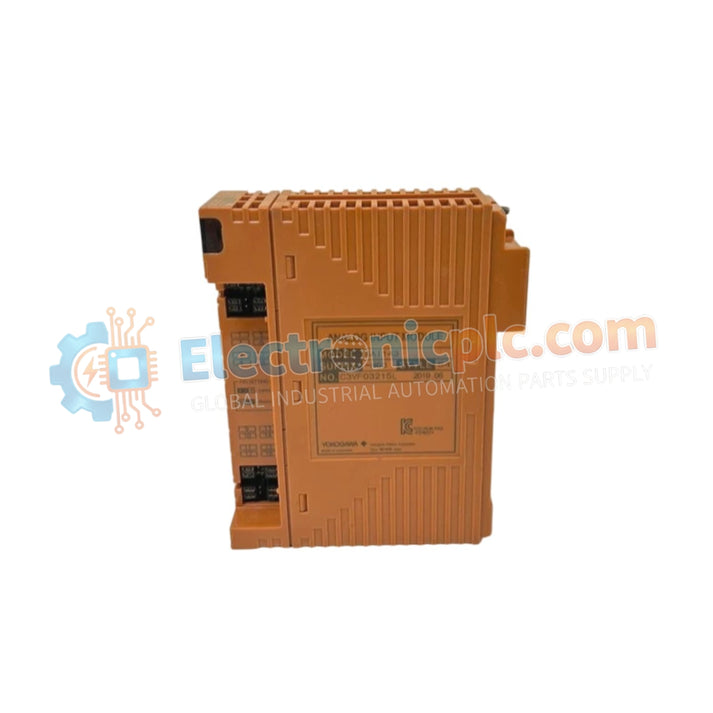

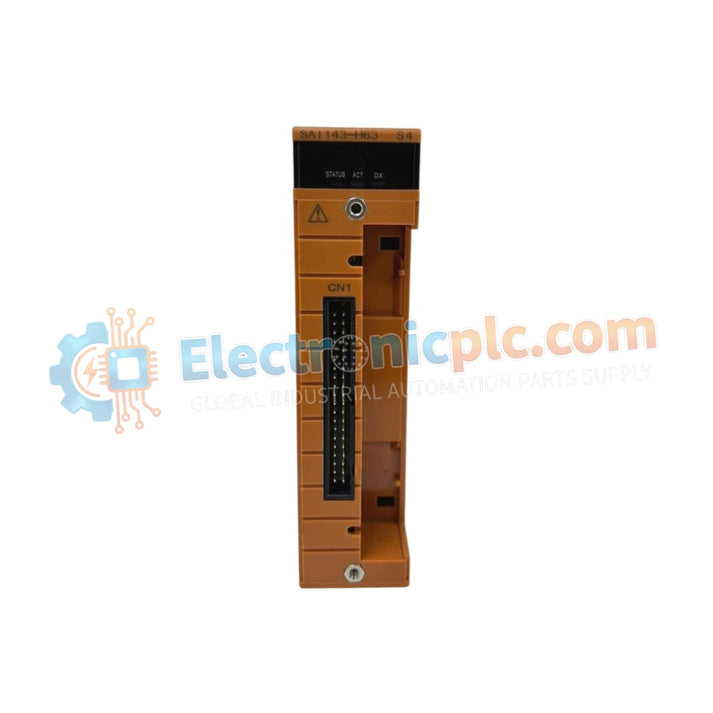

Configured for current signal acquisition in DCS network platforms, the Yokogawa SAI143-H63 (SAI143-H63/A4S00 Analog Input Module) provides direct physical/electrical execution. This 16-channel component serves as a primary interface for processing 4-20 mA inputs, ensuring signal conversion and isolation within the CENTUM VP or Vnet/IP control environments.

Hardware Specifications

Process Loop Control and Signal Conditioning

The module employs sophisticated channel-to-channel isolation to prevent ground loops and common-mode noise interference across the process signal network. Each of the 16 channels supports individual 2-wire or 4-wire transmitter configuration via physical pin-setting on the module interface. The transmitter power supply output is regulated with a maximum current limit of 25 mA, ensuring that field devices operate within safe power envelopes while maintaining loop integrity. The internal circuitry utilizes precise input protection to maintain an impedance of 500 kOhm during power-off conditions, preventing unexpected loading on external signal loops during maintenance.

Frequently Asked Questions

Q: Can the 2-wire/4-wire configuration be changed while the module is powered on?

A: No. The 2/4-wire setting requires physical pin adjustments on the module interface, which necessitates isolating the channel or powering down the module to prevent electrical damage and ensure proper signal reference configuration.

Q: How does the module handle temperature-induced drift?

A: The module is specified with a temperature drift of ±16 µA per 10 deg C. For high-precision applications, ensure the cabinet environmental control maintains a stable temperature to minimize measurement deviations over the operational range.

Q: Is this module compatible with existing CENTUM series hardware?

A: The SAI143-H63 is a standard analog input module designed for integration into Yokogawa field control stations. Always verify the current firmware revision of the controller cabinet to ensure compatibility with the specific module revision.

Field Installation Guidelines

• Mounting: Ensure the module is fully seated into the designated slot on the field control station backplane. Secure the module using the top and bottom latching mechanisms to maintain proper electrical contact with the backplane bus.
• Signal Shielding: Connect the cable shields to the designated ground bus in the cabinet. Minimize exposed signal wire length at the terminal block to reduce susceptibility to electromagnetic interference (EMI).
• Loop Testing: Prior to bringing the loop into active service, perform a continuity check using a calibrated current source. Verify that the 4-20 mA signal reaching the module matches the input signal reported in the DCS diagnostic software.
• Power Isolation: Observe all lockout/tagout procedures before modifying channel pin settings. Ensure that the 24 V system power is stable and within the manufacturer's specified limits to avoid transmitter supply voltage drops.
