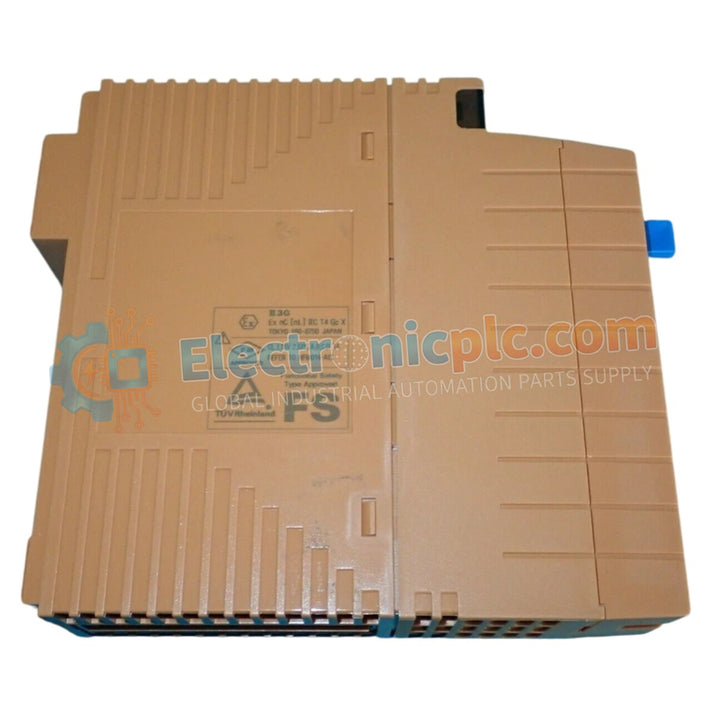

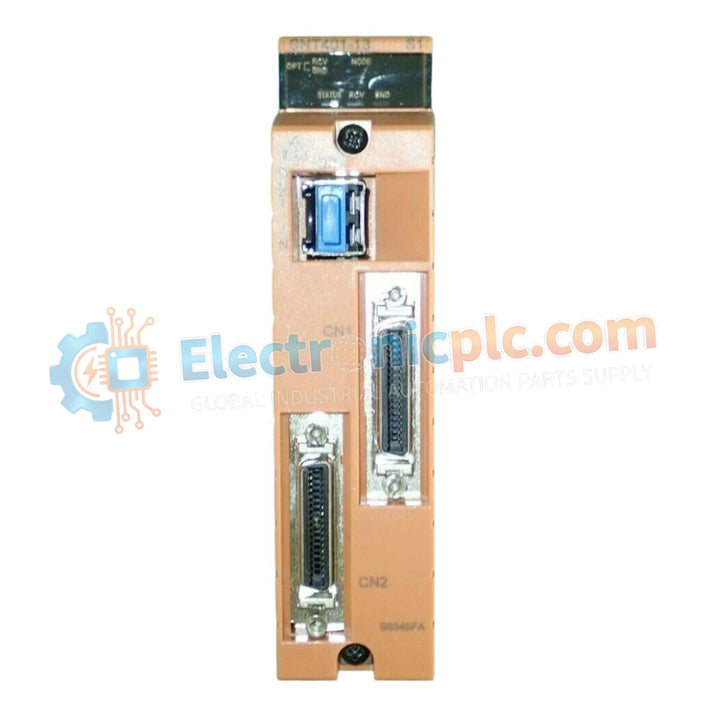

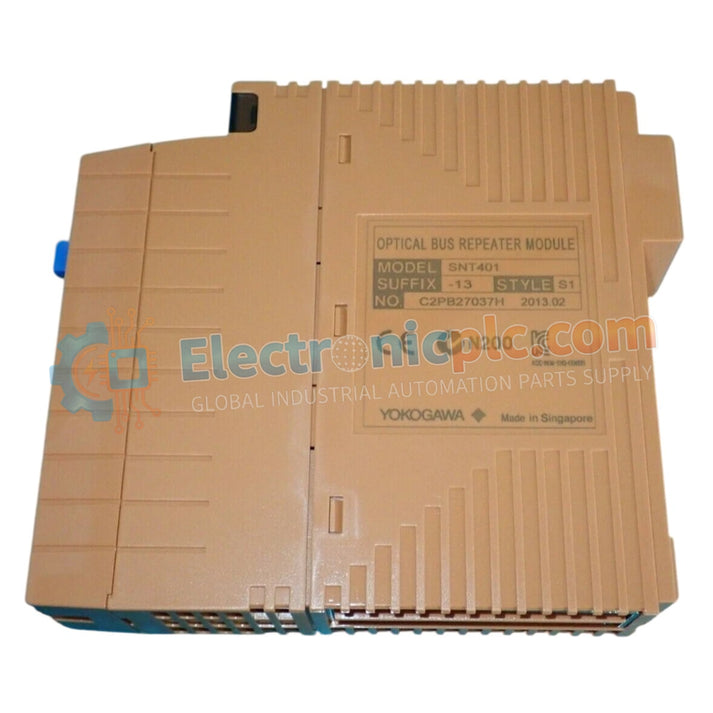

Configured for signal transmission extension in distributed control network architectures, the YOKOGAWA SNT401-13 (SNT401 Optical ESB Bus Repeater Master Module) provides direct physical execution of optical-to-electrical signal conversion.

Hardware Specifications

Channel-to-Channel Isolation and Optical Data Integrity

The SNT401-13 module enables the extension of the Extended Synchronization Bus (ESB) across geographically separated controller nodes. The internal circuitry provides channel-to-channel isolation, preventing electrical noise propagation between the optical transceiver stage and the local backplane. By facilitating high-speed data synchronization via optical fibers, the module minimizes the impact of electromagnetic interference on control loop timing, ensuring deterministic communication latency across the DCS control architecture.

Frequently Asked Questions

Q: Does the SNT401-13 support hot-swapping during active operation?

A: No. The module must be powered down before insertion into or removal from the base unit to prevent backplane bus transients and potential damage to the control system communication circuitry.

Q: Is the optical port compatible with standard multi-mode fiber patch cables?

A: The SNT401-13 is designed for compatibility with Yokogawa-specified fiber optic interfaces. Ensure that the optical connector type matches the system specifications and that the fiber end-faces are free of contaminants before connection to maintain link signal budget.

Field Installation Guidelines

1. Module Seating: Align the module with the base unit guides and insert it until the backplane connectors are fully engaged. Secure the module using the built-in locking levers to ensure stable electrical contact.
2. Optical Cable Management: When routing optical fibers to the SNT401-13, maintain a bend radius greater than 30 mm to avoid attenuation increases and micro-fractures in the fiber core.
3. Grounding: Verify that the cabinet ground is connected according to site standards. The module chassis must maintain electrical continuity with the grounded backplane to ensure effective shielding against high-frequency interference.
4. ESD Protection: Always use an anti-static wrist strap when handling the module to prevent electrostatic discharge damage to the internal CMOS components.
