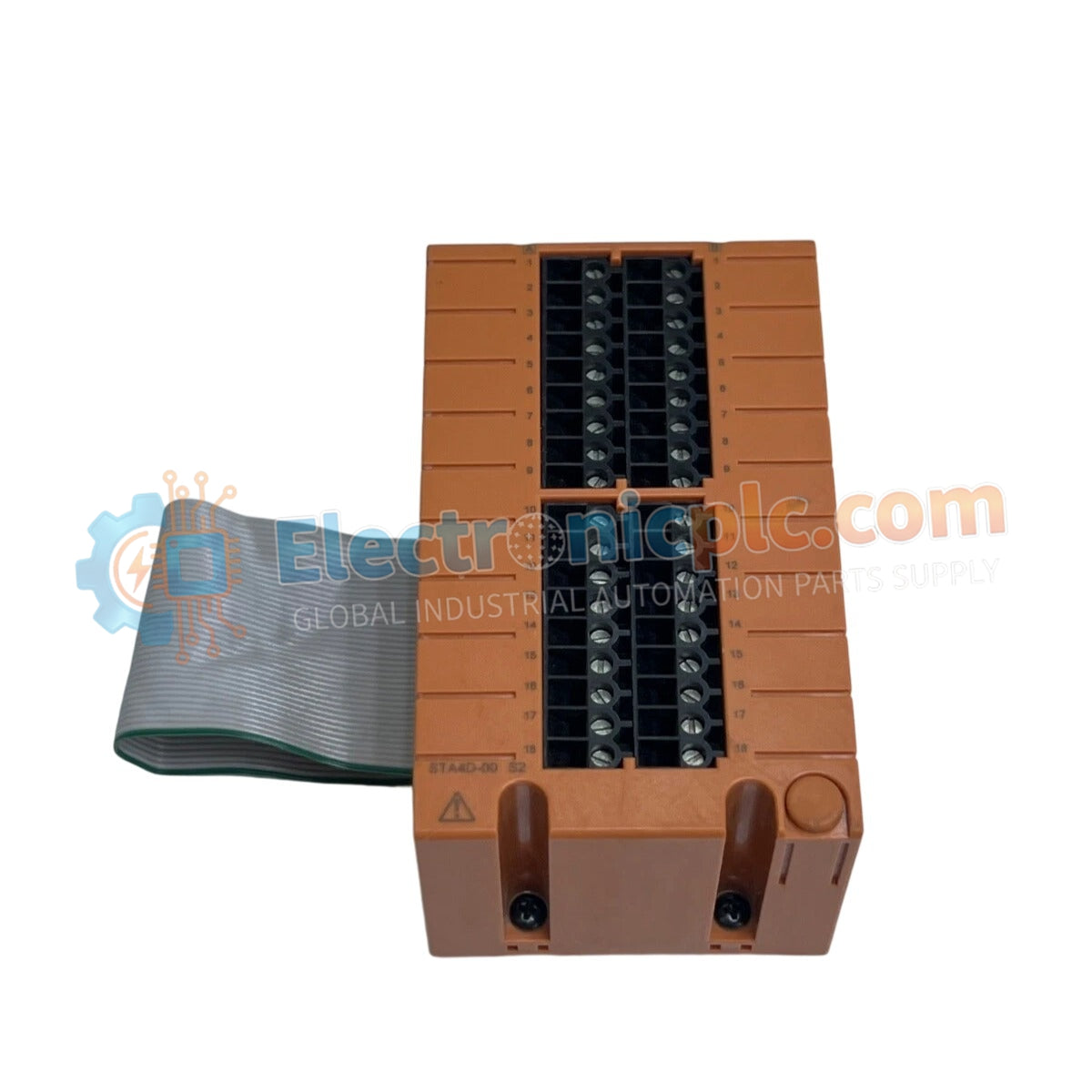

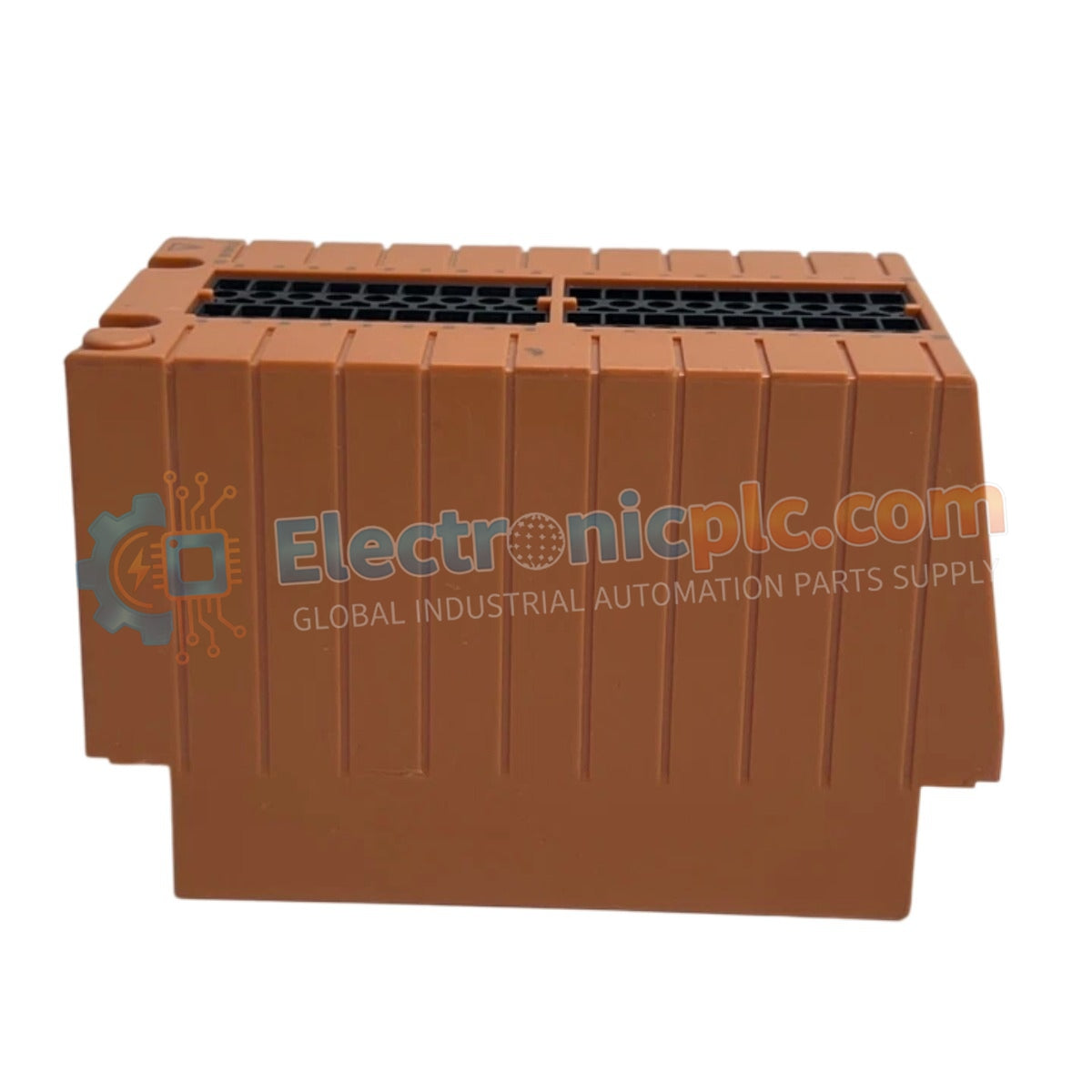

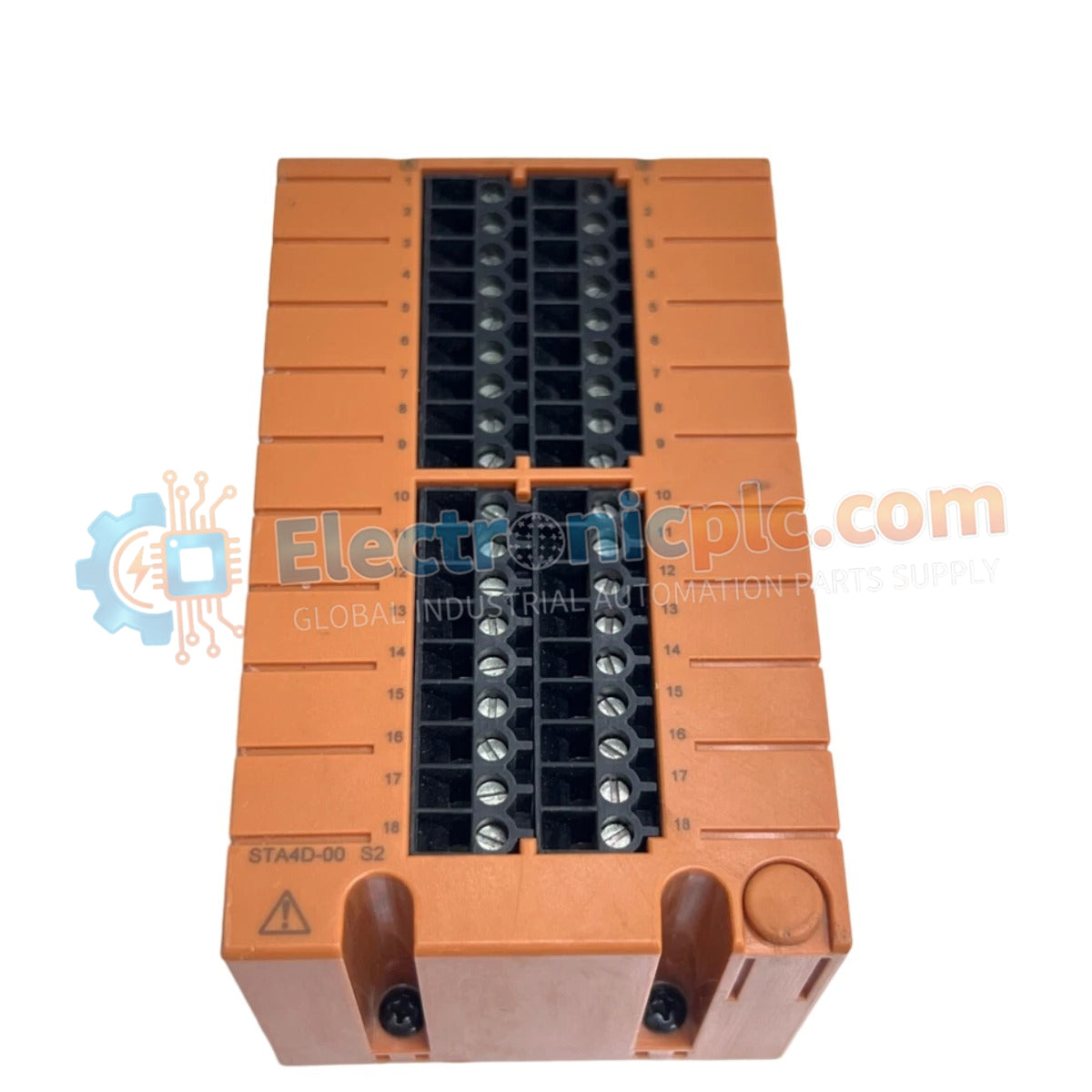

The Yokogawa STA4D-00 S2, also cataloged as the STA4D-00 Pressure Clamp Terminal Block, operates as a dedicated hardware component for field wiring termination within DCS I/O signal distribution networks.

Hardware Specifications

Channel-to-Channel Isolation and Termination Stability

The STA4D-00 S2 terminal block maintains electrical path integrity by utilizing high-tension pressure clamps that ensure gas-tight connections for field conductors. This configuration minimizes voltage drop across the termination point and prevents signal fluctuations in low-level analog loops. The module architecture is designed to accommodate standard industrial signal wiring, providing necessary isolation and mounting stability to prevent vibration-induced signal intermittent contact during continuous process operations.

Frequently Asked Questions

Q: Can the STA4D-00 S2 accommodate varying wire gauges?

A: The pressure clamp mechanism is designed for a specific range of conductor sizes, typically from 0.5 mm squared to 2.5 mm squared. Consult the terminal block marking plate for precise torque specifications and maximum wire gauge limits to ensure secure clamping without conductor damage.

Q: Is specific grounding required for the STA4D-00 S2 chassis?

A: While the terminal block provides electrical termination for signals, the mounting rail or chassis should be bonded to the system protective earth (PE) ground to maintain shielding continuity and minimize common-mode noise across the I/O rack.

Field Installation Guidelines

1. Ensure the terminal block is mounted firmly on the designated DIN-rail or mounting bracket, ensuring the locking mechanism is fully engaged.
2. Strip wire insulation to the length specified by the terminal geometry to prevent exposed copper while ensuring full contact depth within the clamp.
3. Insert conductors individually into the pressure clamps; verify that no wire strands are pinched or protruding from the clamp exit.
4. Tighten clamp screws to the recommended torque value to prevent thermal expansion/contraction issues over time.
5. Use proper ferrules for stranded wires to maintain clamping force and prevent long-term wire fatigue.
6. Verify continuity from the field termination point to the I/O module backplane connector using a digital multimeter before powering the loop.
