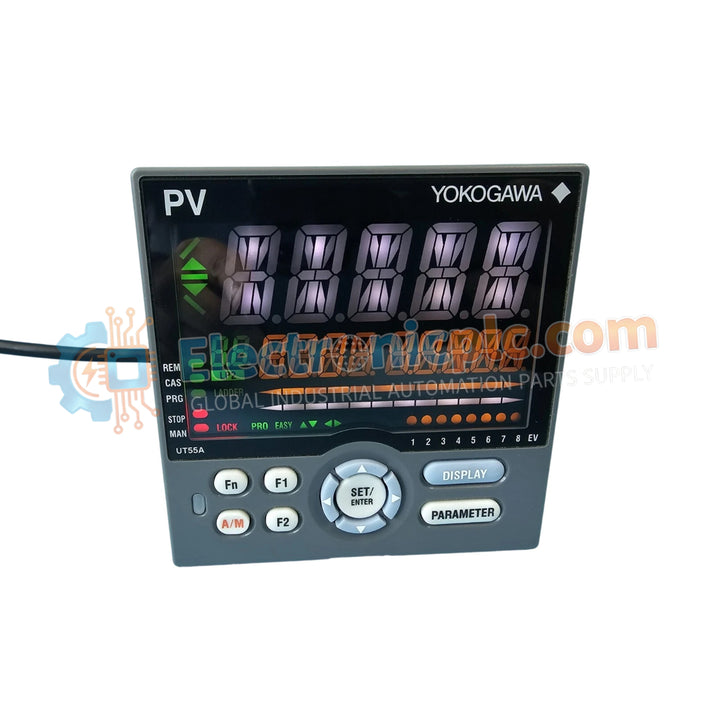

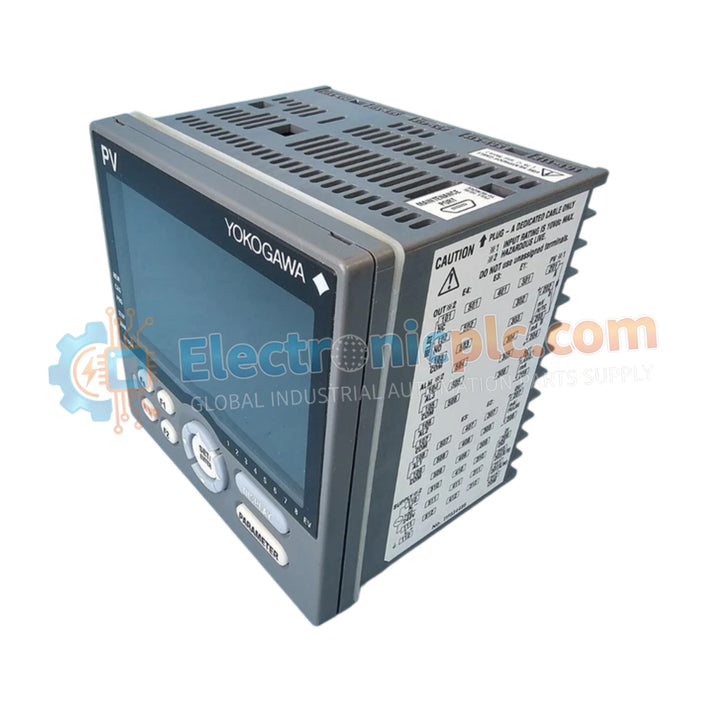

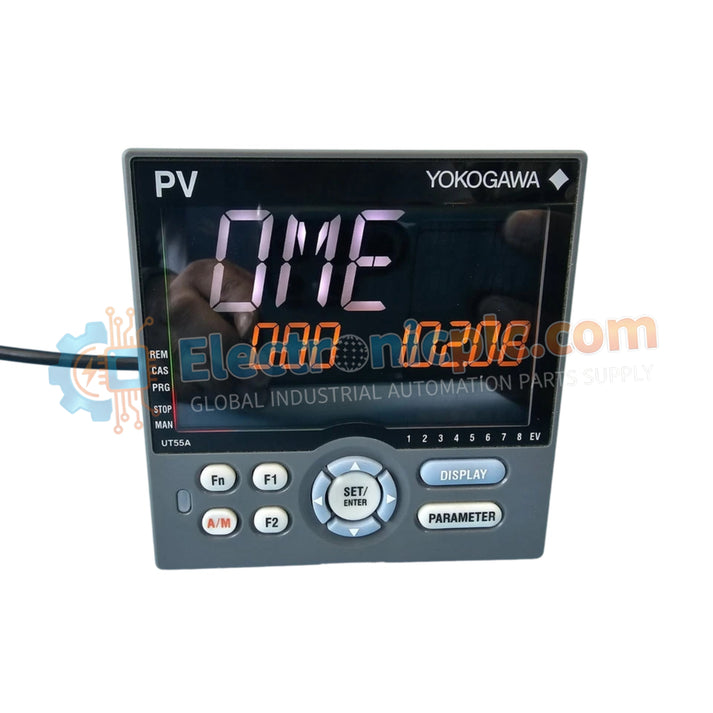

The Yokogawa UP55A-201-11-00/AP serves as the primary UP55A-201-11-00/AP Program Controller utilized to execute high-precision temperature and thermal profile control across distributed control system platforms.
| Parameter | Specification |
|---|---|
| Model | UP55A-201-11-00/AP |
| Brand | Yokogawa |
| Origin | Standard Industrial Specification |
| Weight | Standard Panel Mount |
| Dimensions | 1/4 DIN, 65 mm panel depth |
| Operating Temp | Standard Industrial Rating |
| Power Consumption | Standard Line Power |
| Input Types | Thermocouple, RTD, DC voltage, DC current |
| Accuracy | +/-0.1% of input span |
| Sampling Cycle | 100 ms |
The hardware configuration maintains strict electrical isolation across input and output circuits to suppress common-mode electrical noise and prevent ground fault propagation between field loops. Integration with standard 4-20 mA HART loop protocol parameters and process instrumentation interfaces ensures transparent transmission of analog and digital data streams directly to control system monitoring units without signal degradation.
Q: What are the restrictions regarding panel mounting and environmental protection for this controller?
A: The front panel provides IP66 and NEMA4 protection ratings when mounted correctly into a standard 1/4 DIN panel cutout using the supplied mounting brackets and gasket seals.
Q: How does the controller respond to sensor input burnout conditions?
A: Built-in burnout detection circuitry continuously monitors sensor continuity and triggers predefined safe output states upon detecting an open-circuit fault.
Mount the controller securely into the designated 1/4 DIN panel cutout, ensuring the front gasket creates a tight seal against moisture and dust ingress. Route sensor inputs and control output wiring away from high-voltage power conduits and use shielded cables to maintain measurement accuracy. Terminate cable shielding and ground drain wires securely to the designated cabinet earth grounding bar.
