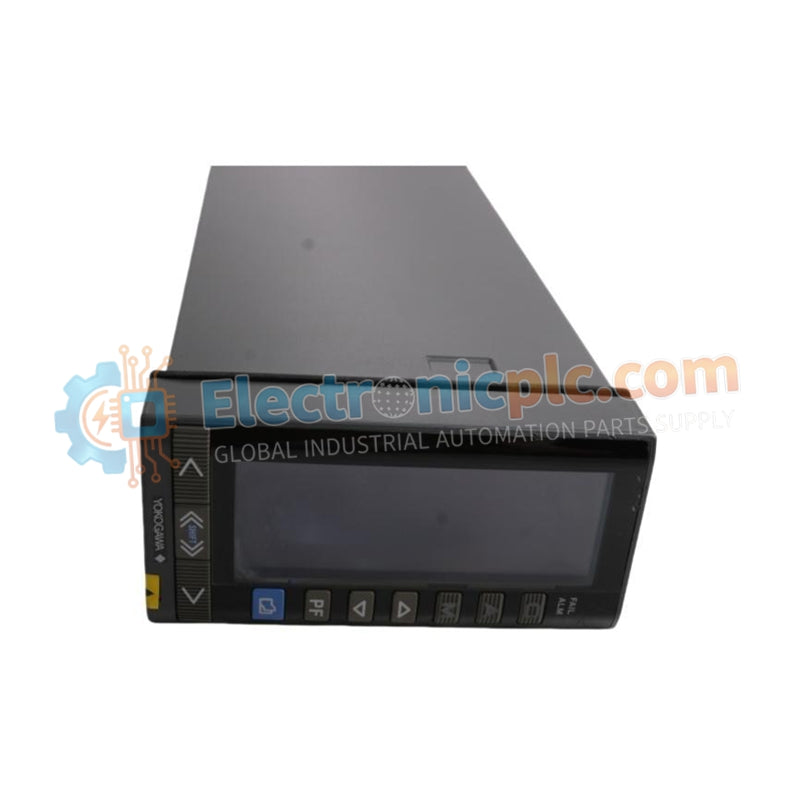

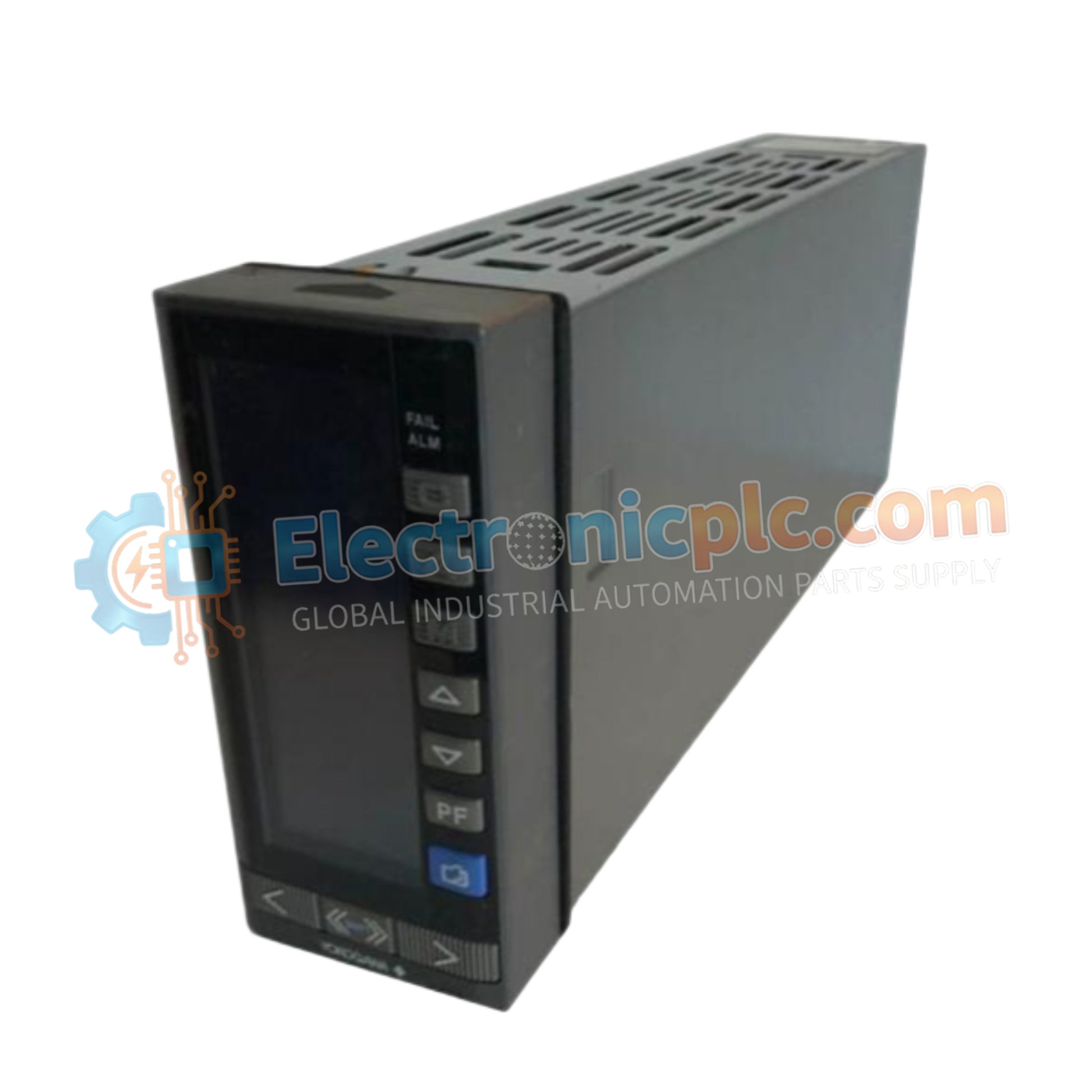

The YOKOGAWA YS170-012, also cataloged as the YS170-012 Programmable Controller, operates as a dedicated hardware component for PID loop control and sequence logic execution within local process automation platforms.

Hardware Specifications

Process Control Instrumentation Connectivity

The YS170-012 facilitates deterministic control loop execution, providing high-speed processing of analog and digital inputs for refined setpoint management. The internal architecture supports 4-20 mA HART loop protocol integration, allowing for seamless communication with field-mounted transmitters and final control elements. The unit features robust signal conditioning modules to maintain input accuracy and prevent common-mode noise from affecting control stability in electrically active industrial environments.

Frequently Asked Questions

Q: Does the YS170-012 support custom logic programming?

A: Yes, the YS170 is a programmable controller that allows for the creation of customized control logic and sequences to meet specific application requirements beyond standard PID functions.

Q: Is this controller capable of operating in a redundant configuration?

A: The YS170 is primarily designed as a stand-alone single-loop or multi-loop controller. While it can interface with DCS networks, native dual-redundant processing requires external supervisory control or specific inter-controller wiring configurations.

Field Installation Guidelines

• Verify that the panel cutout matches the YS170 series dimensions to ensure a secure, airtight seal against environmental contaminants.
• Ensure all signal wiring, particularly low-level analog inputs, utilizes shielded twisted-pair cables grounded at a single point to minimize electromagnetic interference (EMI).
• Maintain a minimum clearance around the unit to facilitate convective cooling, as internal heat buildup can cause drift in the analog-to-digital conversion stages.
• Terminate all power and I/O connections firmly to prevent contact resistance, which may lead to signal instability or intermittent controller resets.
• Verify the controller configuration, including input scaling and control parameters, before enabling the output to the final control element to prevent process upsets during commissioning.
