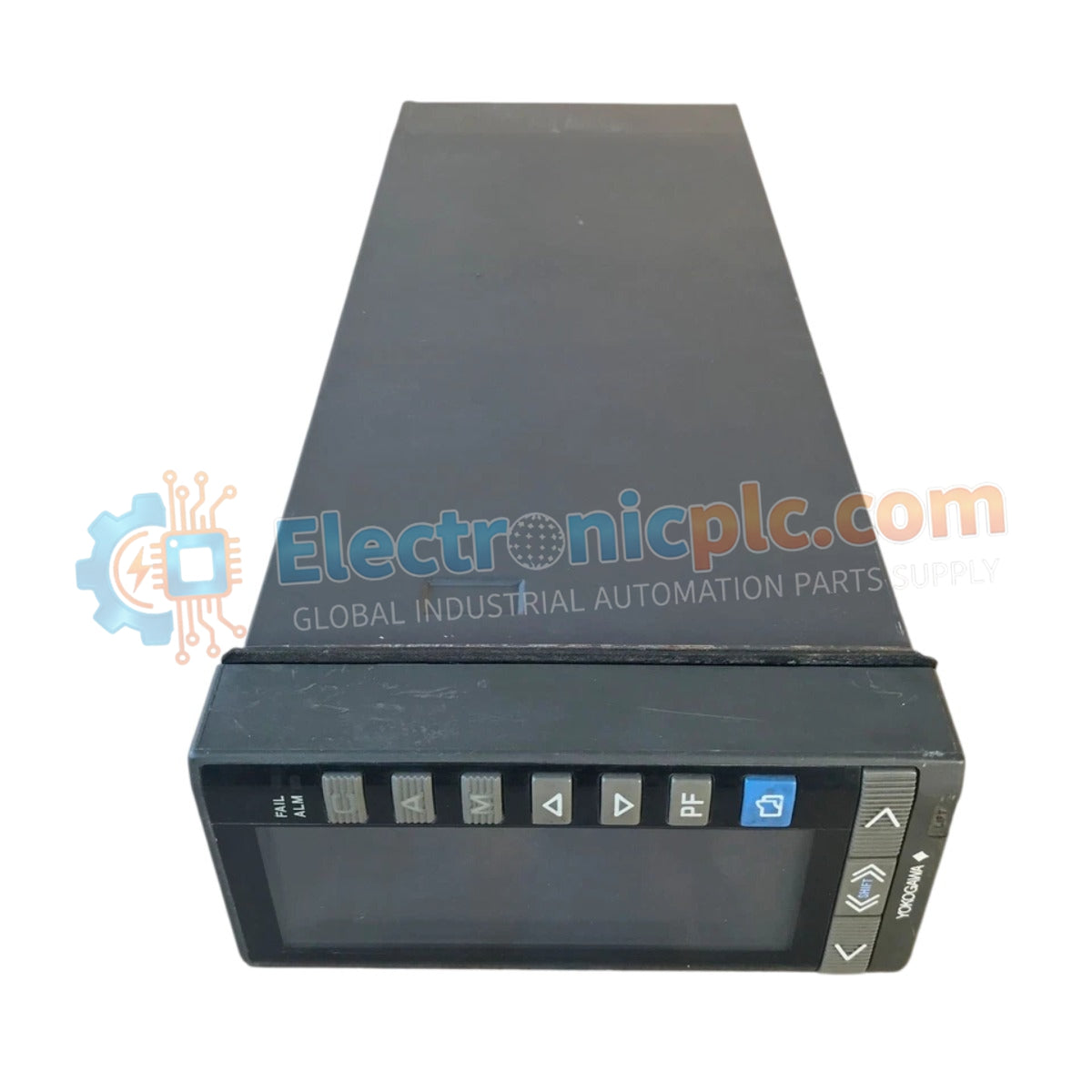

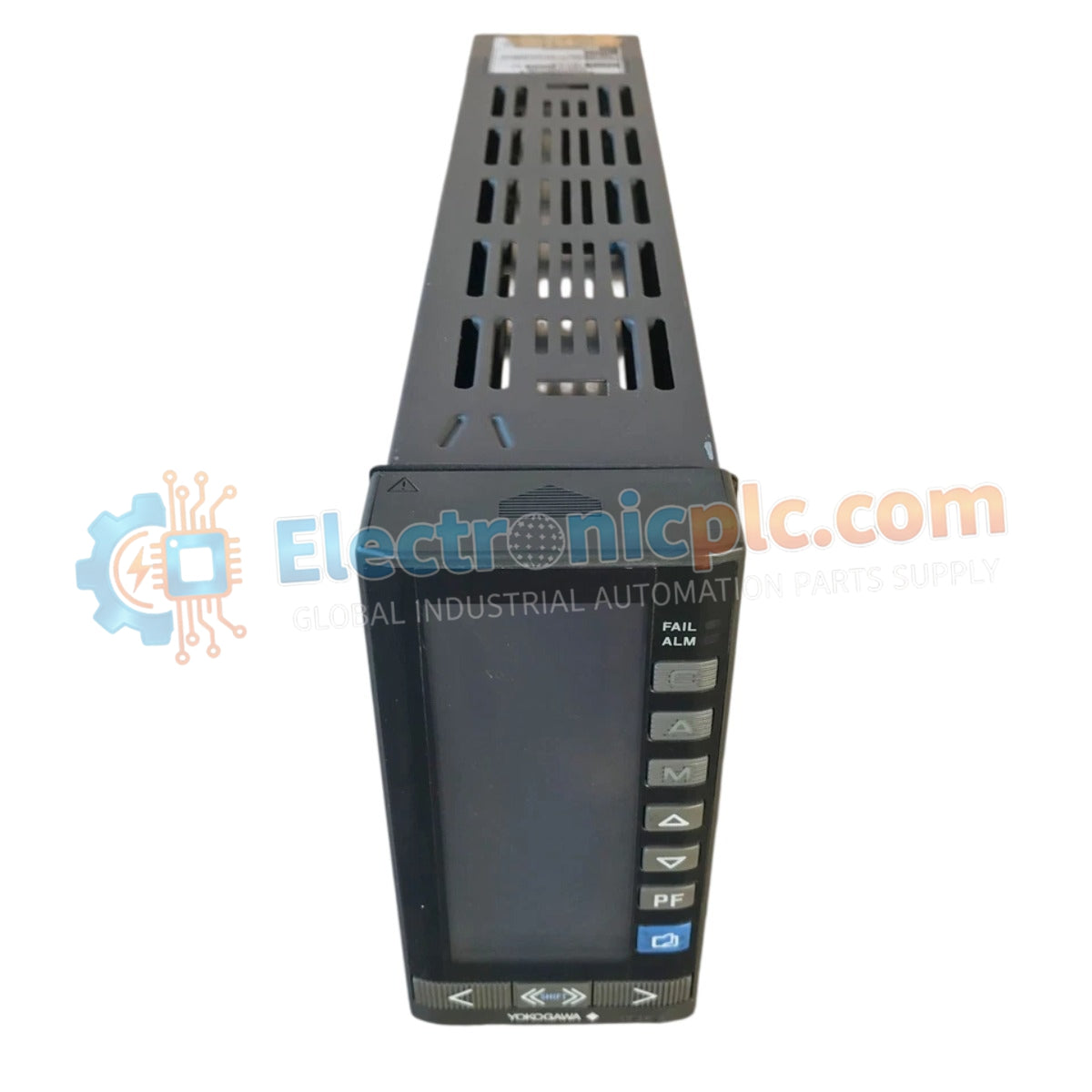

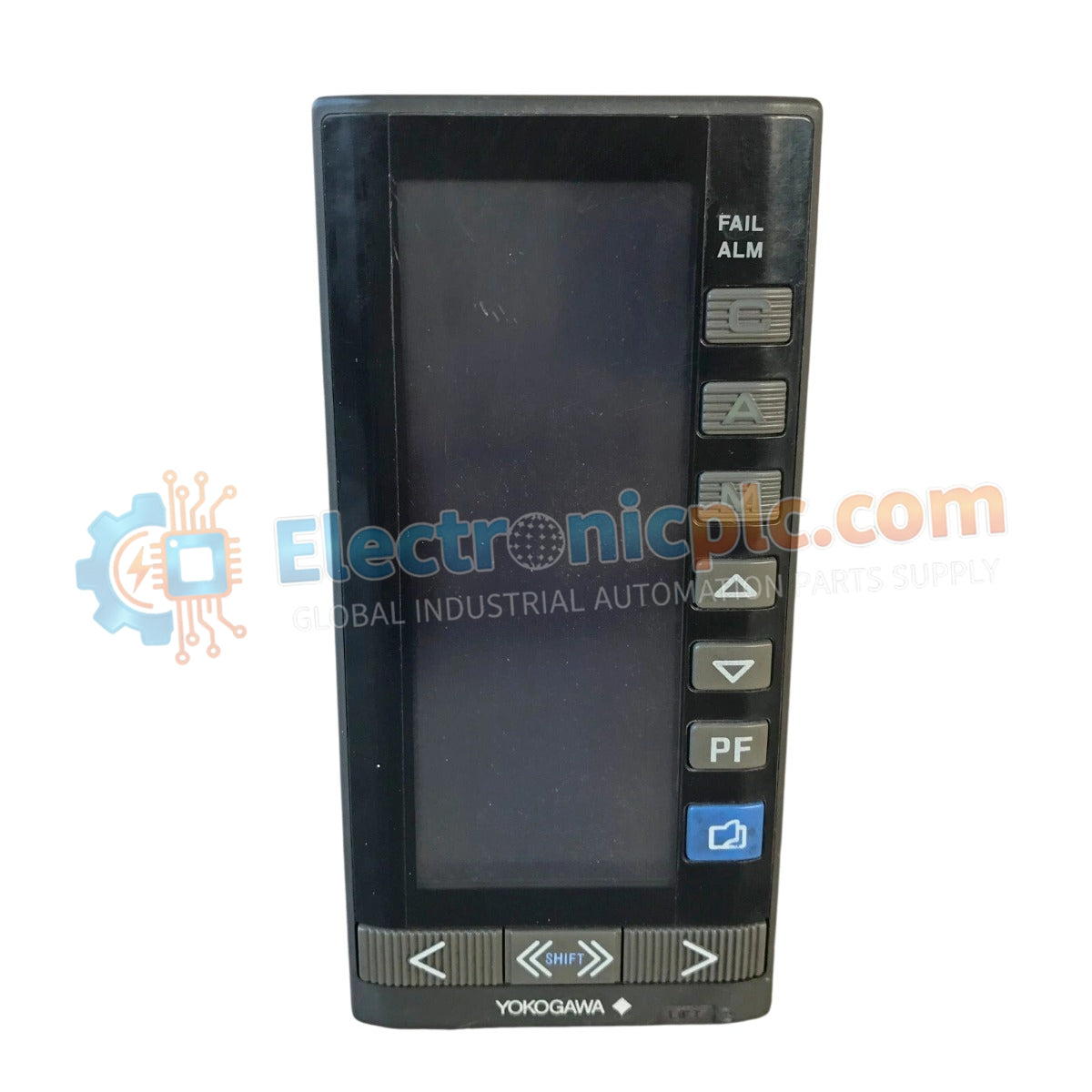

Configured for precise process loop regulation in industrial automation, the Yokogawa YS1700-001/S01 (YS1700 Programmable Indicating Controller) provides direct physical and electrical execution of control logic and variable monitoring.

Hardware Specifications

Process Control Connectivity

The YS1700-001/S01 functions as a standalone controller that supports 4-20 mA HART loop protocol integration, allowing it to communicate directly with smart field instruments. To ensure signal integrity, the unit utilizes channel-to-channel isolation on its I/O interfaces, preventing ground loops in multi-transmitter configurations. Cold junction compensation (CJC) is managed internally when the controller is assigned to thermocouple-based temperature control tasks, maintaining accuracy across the supported operating temperature range. The high-visibility LCD provides real-time diagnostic feedback, while the internal logic engine processes function blocks with high determinism.

Frequently Asked Questions

Q: Can the YS1700-001/S01 support hot-swapping of I/O modules?

A: No, this controller is designed as an integrated unit. Modifying internal components or I/O connections requires power isolation to prevent electrical shorting or corruption of the volatile program memory.

Q: Is the text-based program compatible with function block logic?

A: Yes, the controller supports a hybrid execution environment. You can integrate text-based procedural logic alongside function block diagrams, provided the total resource consumption does not exceed the 1000-step or 400-module hardware capacity limits.

Field Installation Guidelines

1. Mount the controller in a panel cutout that allows for adequate ventilation, ensuring the ambient temperature remains between 5 deg C and 40 deg C.
2. Ensure the display is oriented to minimize glare, although the full-dot color LCD is rated for high-visibility operation.
3. Terminate all shielded field wiring to the rear terminals, ensuring the shield is connected to a dedicated instrument ground bus to mitigate electromagnetic interference.
4. Verify the power supply voltage meets the factory specifications before closing the internal circuit breaker.
5. Perform a full loop check after establishing communication to confirm that the programmed function blocks are correctly mapping to the physical inputs and outputs.
